RC4WD Gelande Cruiser Leaf Spring Set VVV-C0040

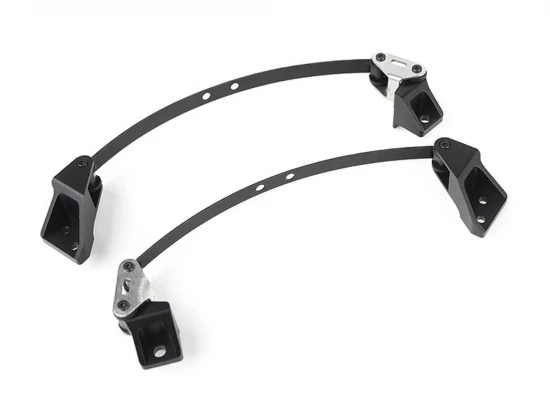

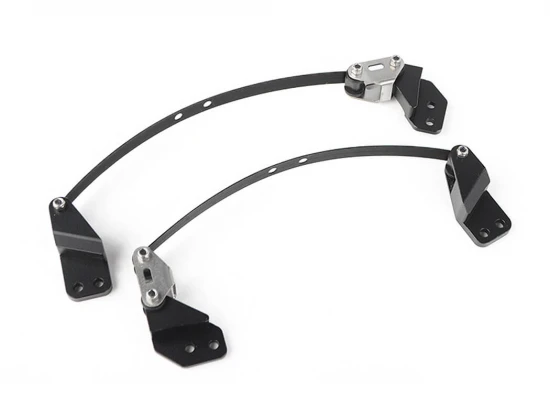

The RC4WD Ultra Scale Leaf Spring Set for Gelande Cruiser, part number VVV-C0040, is a scale leaf spring upgrade set supplied with stainless steel leaf springs and billet aluminium mounting parts. It includes main and auxiliary leaf springs, axle mounting parts, fixings and black Nylock nuts for assembly.

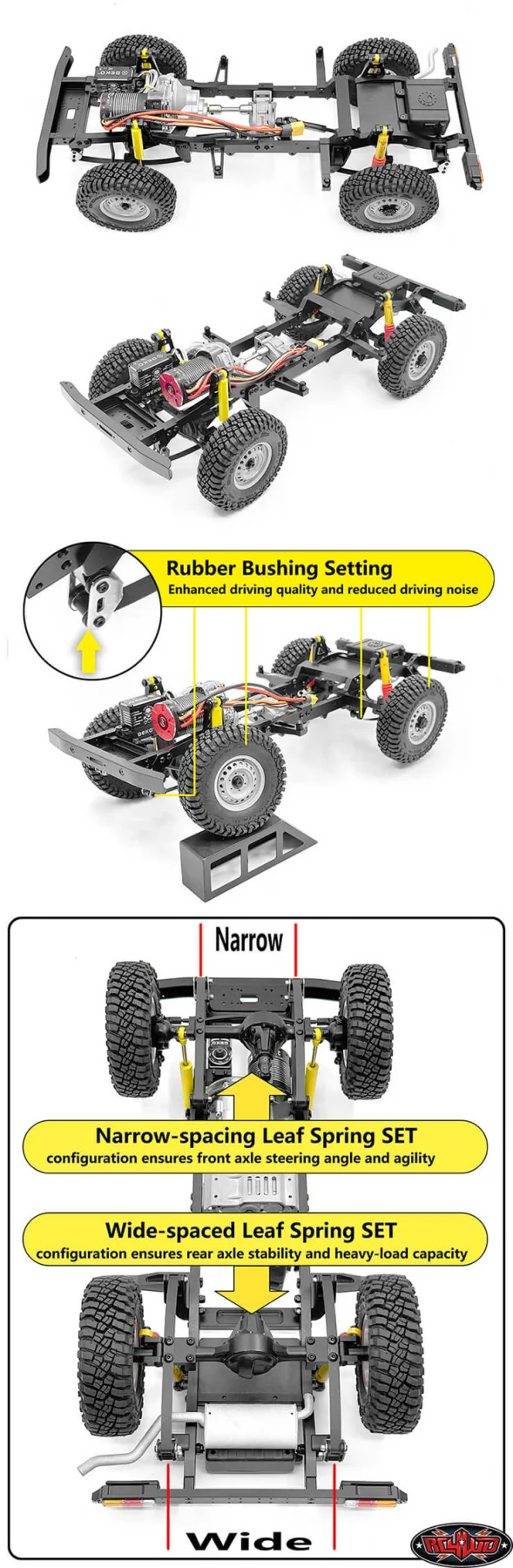

The set contains four main leaf springs with eight mounts, together with four 89 mm auxiliary leaf springs and four 67 mm auxiliary leaf springs. Separate mounts are included for the front and rear axles, allowing the supplied components to be arranged across the vehicle. The total set weight is 157 g.

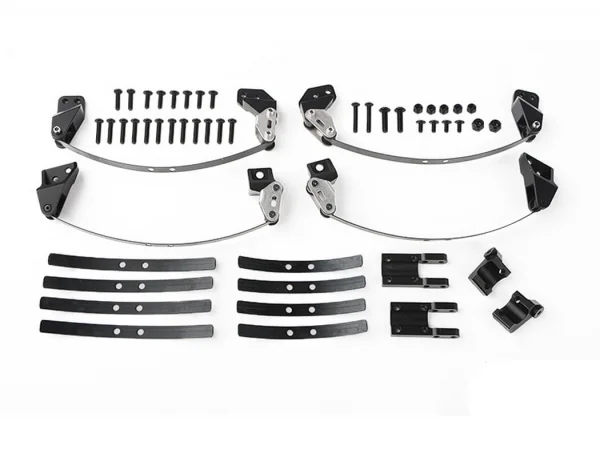

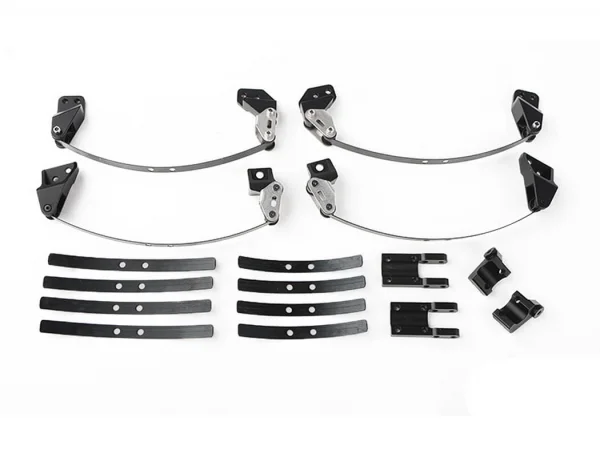

What's Included

• Four main leaf springs with eight mounts

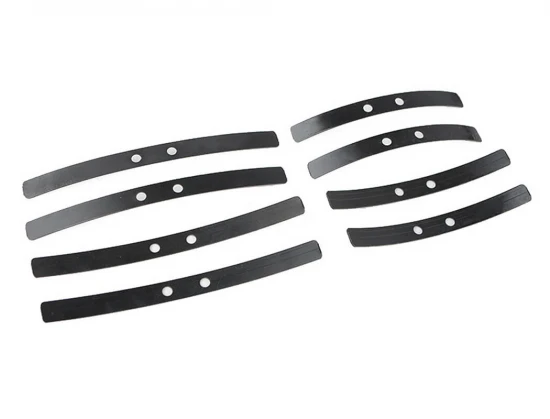

• Four 89 mm auxiliary leaf springs and four 67 mm auxiliary leaf springs

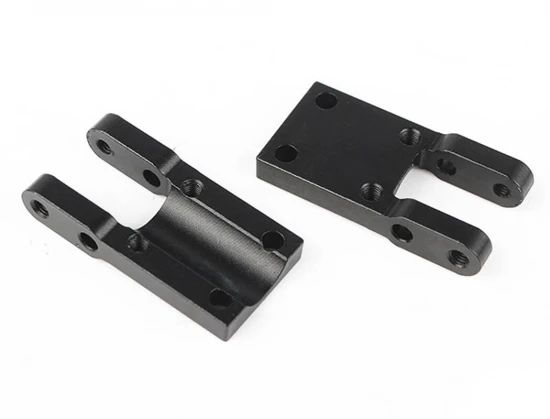

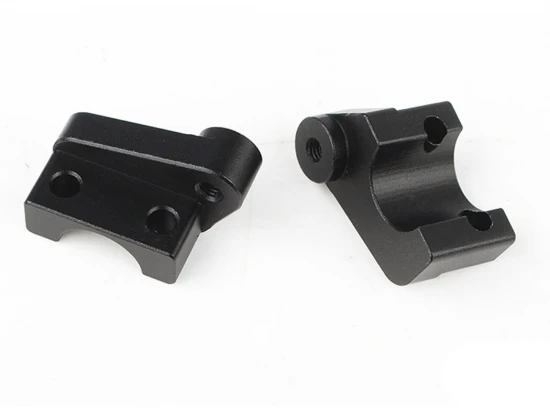

• Two front-axle leaf spring mounts and two rear-axle leaf spring mounts

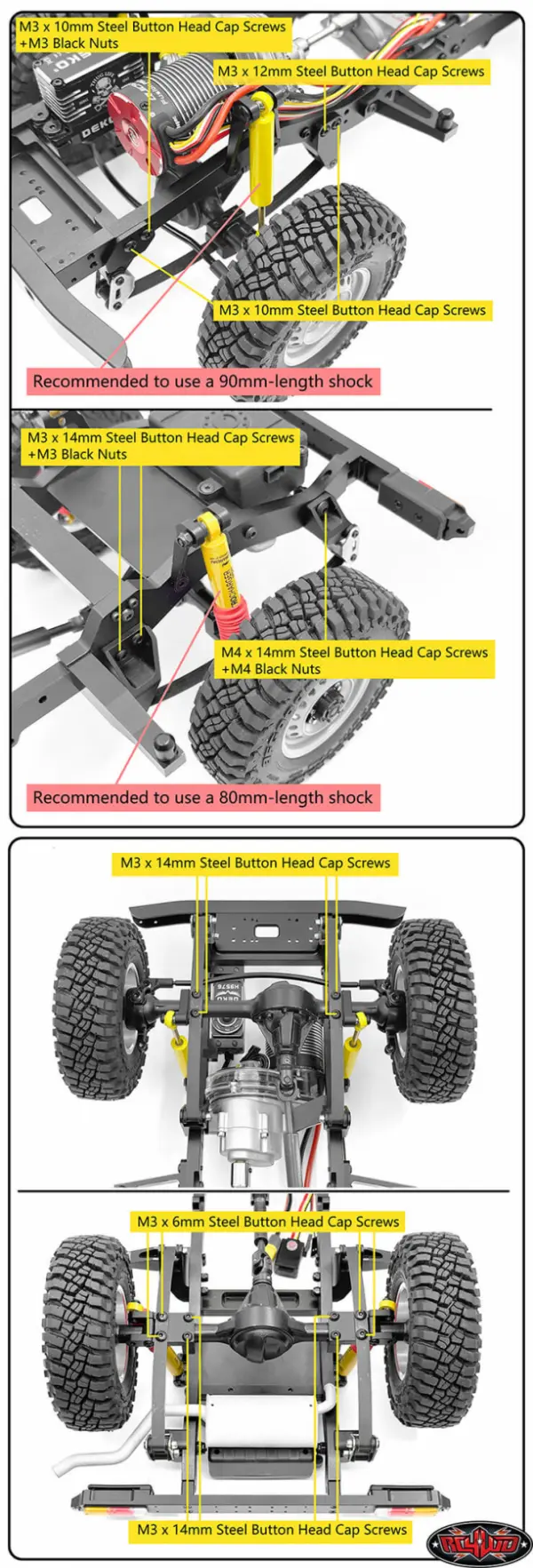

• M3 steel button head cap screws in 6, 10, 12, 14 and 18 mm lengths
• M4 x 14 mm steel button head cap screws
• Black M3 and M4 Nylock nuts

Suggested Compatibility

This RC4WD leaf spring set has suggested compatibility with the Gelande II RTR Truck with Cruiser Body Set and the Gelande II Truck Kit with Cruiser Body Set. The manufacturer lists the relevant vehicle references as Z-RTR0047 and Z-K0072.

The included fixings cover several screw lengths, with the M3 screws identified by the supplied references Z-S0651, Z-S0653, Z-S0654, Z-S0655 and Z-S0657. The components are supplied as a set for the Gelande Cruiser application, with stainless steel springs, billet aluminium mounts and black Nylock nuts forming the main parts of the package.
