RC4WD XR2 Ultimate Micro Radio and ESC/Receiver RC4WD

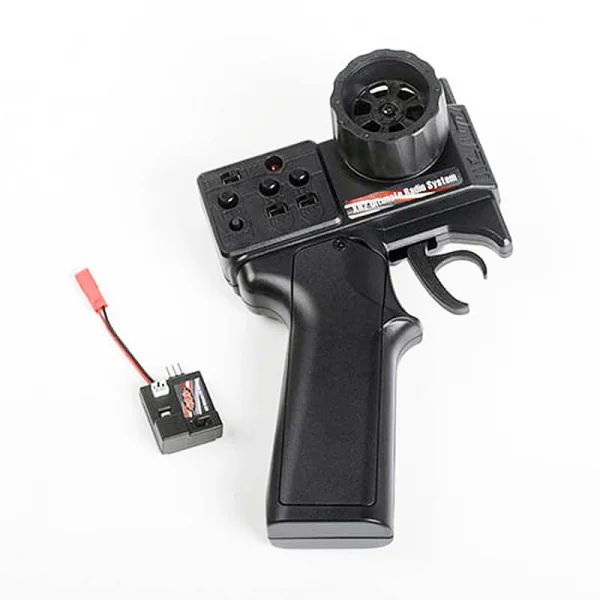

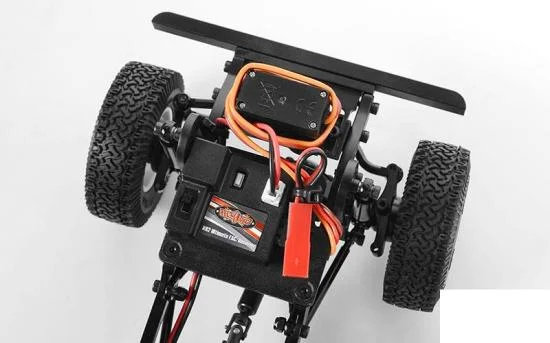

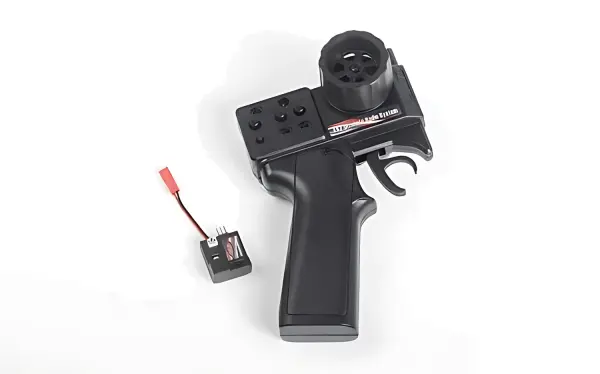

The RC4WD XR2 Ultimate Micro Radio and ESC/Receiver (Z‑E0098) is a compact 2-channel 2.4GHz control system designed for small-scale crawlers and trail rigs. Combining a lightweight transmitter with a micro crawler ESC/receiver, it offers a tidy installation for 1/18 and 1/24 applications. Shown installed on an RC4WD 1/18 Gelande II RTR chassis for example (not included).

Transmitter Specifications

• Channels: 2
• Advanced 2.4GHz system
• Antenna length: 25mm
• Power: 6V DC (4x AA batteries)
• Display mode: LED indicator
• Size: 208 x 122 x 80mm (8.18 x 4.80 x 3.15in)
• Weight: 6.52oz (185.0g)

ESC/Receiver Specifications

• Channels: 2
• Type: 2.4GHz RX with crawler ESC
• Servo port: Standard 3-pin servo port
• BEC for servo: 5V, 1A
• Battery: 7.2V NiMH or 2S LiPo, JST connector
• Size: 36 x 26 x 14mm (1.41 x 1.02 x 0.55in)
• Weight: 0.29oz (8.3g)

What’s Included

• 1x XR2 Ultimate Micro Radio
• 1x XR2 Ultimate Micro ESC/Receiver

Suggested Compatibility

• RC4WD 1/18 Gelande II RTR w/ BlackJack Body Set (Z‑RTR0036)
• RC4WD 1/18 Gelande II RTR w/ Black Rock Body Set (Z‑RTR0037)
• RC4WD 1/18 Gelande II RTR w/ D90 Body Set (Blue) (Z‑RTR0039)
• 1/24 Rascal All Metal Scale Truck Chassis Set (VV‑JD00033)

Replacement Parts

• XR2 Ultimate Micro ESC/Receiver (Z‑E0099)

Instruction Manual

Instruction manual available for download.
