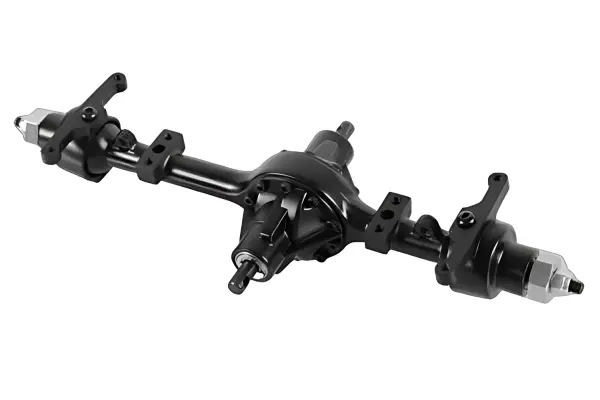

RC4WD Yota II Ultimate Scale Cast Axle (Center Front)

The RC4WD Yota II Ultimate Scale Cast Axle (Center Front) delivers exceptional scale realism and robust performance for detailed crawler builds. With a removable offset third member and intricate casting, it captures full-size axle character while providing the durability demanded by serious trail use. Part number Z-A0086.

Key Features

• Die cast light weight metal housing
• Hardened steel spool gears
• 5mm axle output shaft
• Full ball bearings
• Powdercoated in black

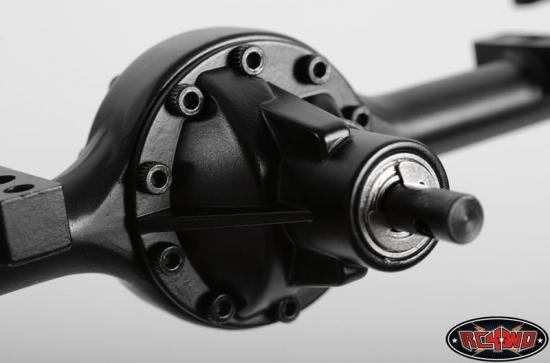

• Removable offset third member

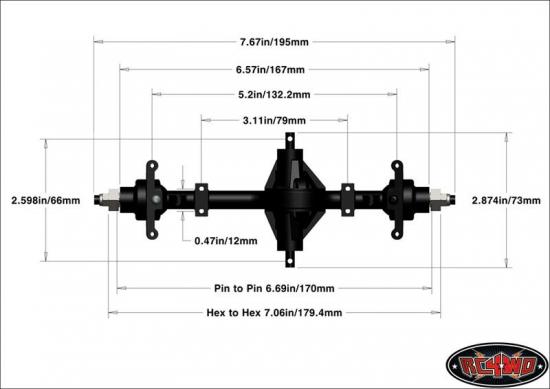

Specifications

• Gear Ratio: 2.67 : 1
• Total Width: 7.67in / 195mm
• Hex to Hex Width: 7.06in / 179.4mm
• Pin to Pin Width: 6.69in / 170mm
• Pumpkin Height: 1.38in / 35mm
• Leaf Mount Width: 3.11in / 79mm
• Axle Output Shaft OD: 0.19in / 5mm
• 12mm steel wheel hex
• Weight: 5.6oz / 159g

What’s Included

• 1x Yota II Ultimate Scale Cast Axle (Center Front)

Notes

• While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed.
• Axle Shimming Video: Click Here

Other Yota II Axles

• Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
• Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
• Yota II Ultimate Scale Cast Axle (Center Rear) (Z-A0010)

Replacement Parts

• Axle Ring & Pinion Gears (Z-S0027)
• Front Replacement Case Housing (Z-A0082)
• Replacement Third Member (Z-S0813)
• Replacement Cast Knuckles for Yota II Axle (Z-S0811)
• Replacement Hardware for Front Yota II Axle (Z-S0868)
• Yota Front Steel Axle Shaft (Z-S0060)
• Socket Head Cap Screws M2 x 6mm (10) (Z-S0611)
• 2x Metal Shield Bearing 8x12x3.5mm (Z-S0681)
• 8x Metal Shield Bearing 5x11x4mm (Z-S0683)
• 2x Metal Shield Bearing 5x8x2.5mm (Z-S0684)

Optional Parts

• Helical Gear Set (Z-G0059)
• XVD Axle for Ultimate Scale Yota II (Z-S0823)
• Steering Link Set (Z-S0938)
• Predator Track Front Axle Fitting Kit (Z-S0918)
• Ultimate Axle 4 Link Mount (Z-S0133)
• Axle U Bolt Kit (Z-S0304)
• RC4WD 12mm Mini Hex Wheel Widener Set (+15mm) (Z-S0407)
• Knuckle Bushings for Yota II Axle (8) (Z-S1784)

Suggested compatibility includes scale truck builds and multi-axle projects, with suitability for 6x6 or 8x8 configurations referenced by the manufacturer.
