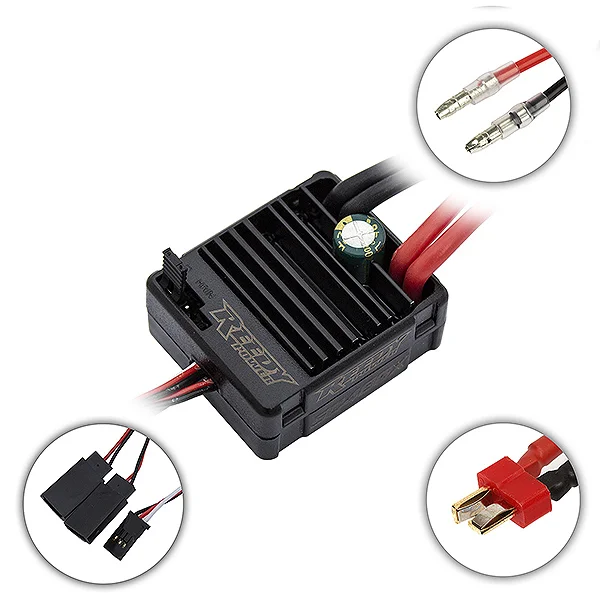

Reedy SC480X Brushed Crawler ESC — image 1 of 2
Reedy SC480X Brushed Crawler ESC — image 2 of 2

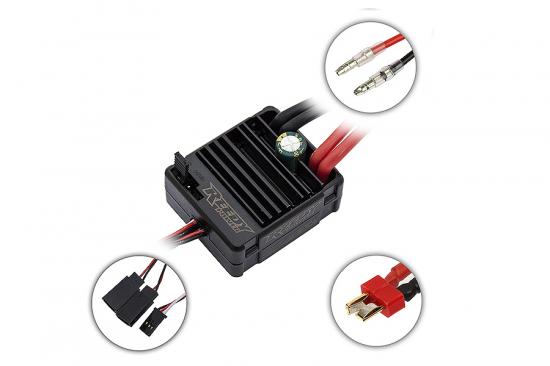

Reedy SC480X Brushed Crawler ESC
Reedy SC480X Brushed Crawler ESC

Reedy SC480X Brushed Crawler ESC (AS27011)

Brand: Reedy

Part No: AS27011

£34.19 RRP £35.99
Pre-Order

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

Customers Also Buy

Popular with customers who buy products like the Reedy SC480X Brushed Crawler ESC

Reedy Power Rx/Servo Y-Connector Lead 95mm - Black Reedy Power Rx/Servo Y-Connector Lead 95mm - Black
£5.88
Reedy Electronic Power Switch Reedy Electronic Power Switch
£24.69
Reedy Lipo Pro RX 2700mAh 7.4V Hump Reedy Lipo Pro RX 2700mAh 7.4V Hump
£36.09
Reedy 75mm Servo Extension Wire Black (2.95In) Reedy 75mm Servo Extension Wire Black (2.95In)
£3.79
Reedy SC600-BL2 Sensorless Brushless ESC Reedy SC600-BL2 Sensorless Brushless ESC
£75.99
Reedy 2mm Bullet Adapter (2) Reedy 2mm Bullet Adapter (2)
£8.35

Description

The Reedy SC480X Brushed Crawler ESC (AS27011) is a simple-to-use, economical and powerful speed controller for trail truck and crawler enthusiasts. Trail tested and proven, it delivers excellent forward/reverse/brake feel together with a wide range of adjustability and robust hardware suited to demanding off-road use.

Supporting 2–3S LiPo or 5–9 cell NiMH batteries, the SC480X provides up to 80A continuous and 320A burst current. A 7.4V/5A BEC supplies reliable power to receivers and servos, while the integrated low-voltage cutoff helps protect LiPo packs. Compact dimensions and 16-gauge power wires make clean installations straightforward.

Key Specifications

  • Cells: 2–3 LiPo; 5–9 NiMH
  • Current: 80A continuous / 320A burst
  • Resistance: 0.0014
  • Motor limits, 2S LiPo / 5–6 NiMH: 540/550 12T 3-slot; 8T 5-slot
  • Motor limits, 3S LiPo / 7–9 NiMH: 540/550 15T 3-slot; 10T 5-slot
  • Low-Voltage Cutoff: Yes
  • BEC: 7.4V / 5A
  • Dimensions: 32 × 37 × 18 mm
  • Weight: 43 g
  • Power wires: 16-gauge
  • Connectors: Battery T-plug; Motor bullet; Aux FUT-J
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Specifications

A simple to use, economical, and powerful ESC for trail truck and crawler enthusiasts.

Trail tested and proven, Reedy's SC480X is a simple to use, economical, and powerful ESC for trail truck and crawler enthusiasts. Excellent forward/reverse/brake feel, a wide range of adjustability, and robust hardware make the SC480X suitable for both trail truck and crawler applications.

Specifications

Cells: 2-3 LiPo, 5-9 NiMH
Current (A): 80 cont./320 burst
Resistance: 0.0014
Motor Limit, 2S LiPo/5-6 NiMH: 540/550 12T 3-slot; 8T 5-slot
Motor Limit, 3S LiPo/7-9 NiMH: 540/550 15T 3-slot; 10T 5-slot
Low-Voltage Cutoff: Yes
Dimensions (mm): 32 x 37 x 18
Weight (g): 43
BEC: 7.4V/5A
Power Wires: 16-gauge
Connector: Battery: T-plug. Motor: Bullet. Aux: FUT-J.




Key Info:
  • Brand: Reedy
  • Part No: AS27011
  • Barcode: 784695270114
