Robitronic Razer eight Brushless ESC 150A 3-6S

Robitronic Razer eight 150A 3-6S Brushless ESC ROBR01223

Brand: Robitronic

Part No: ROBR01223

£107.26 RRP £112.90

Usually ships next day

UK Delivery
Get it by Tuesday 24th Nov (Order within 15h 24m)
Store Collection (Cannock)
Monday 23rd Nov, once stock arrives

Finance options available at checkout.

Popular with customers who buy products like the Robitronic Razer eight Brushless ESC 150A 3-6S

Description

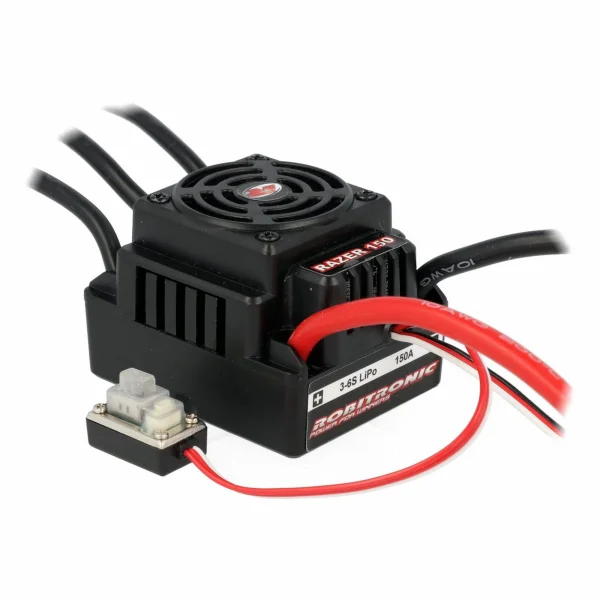

The Robitronic Razer eight Brushless ESC 150A 3-6S (part number ROBR01223) is a sensorless brushless electronic speed controller for 1/8 scale on-road and off-road models, rated at 150A constant and 950A peak current.

The ESC arrives ready to connect, with the battery and motor plugs already soldered, so no soldering is needed. It is waterproof and dustproof, and has an ON/OFF switch with a setup button for simple programming. A separate programming port allows the optional LED program card to be connected. Protection covers undervoltage shutdown, thermal protection and signal loss, and the S-BEC supplies 6V at 5A.

For motor choice, the manufacturer gives limits of a 4274-size motor at 3000KV or below on 4S LiPo, and 2400KV or below on 6S LiPo. It is recommended for ages 14 and over.

Specifications

  • Dimensions: 59.5 x 48 x 42 mm
  • Weight: 178 g
  • Battery connection: T-Plug
  • Motor connection: 4 mm

What's Included

  • ESC with battery and motor wires
  • Manual

Specifications

The Razer ten G2 60A ESC is always the top choice when reliability, efficiency, and durability are paramount. With extensive adjustment and programming options, it leaves nothing to be desired. All cables are pre-wired and ready to connect, no soldering required.

ESC
  • Constant/peak Current: 150A / 950A
  • Type: Sensorless
  • Cells: 2-3S LiPo / 6-9 cells NiMH
  • Motor Limit:
    • 4S LiPo: 4274er Motor, <=3000KV
    • 6S LiPo: 4274er Motor, <=2400KV
  • S-BEC: 6V/5A
  • Programming Port: Yes
  • Battery Connection: T-Plug
  • Motor Connection: 4mm
  • Dimensions: 59.5 x 48 x 42mm
  • Weight: 178g
  • Application: 1/8 on- and off-road

Robitronic Razer eight Brushless ESC 150A 3-6S Key Features:

  • Completely waterproof and dustproof
  • ON / OFF switch with setup button
  • S-BEC with 6V and 5A peak current
  • Plug and Play, battery and motor plug already soldered
  • Multiple protections: undervoltage shutdown, thermal protection and protection against signal loss.
  • Simple programming via set button
  • Separate programming port, easy connection of the LED program card (optional)

What's in the Box:

  • 1x ESC with battery and motor wires
  • 1x Manual

Robitronic Razer eight Brushless ESC 150A 3-6S Tech Specs:

  • Weight: 178g / 6.28oz
  • Shipping Weight: 0.27kg / 0.60lbs
  • Product Height: 42mm / 1.65in
  • Product Width: 48mm / 1.89in
  • Product Length: 60mm / 2.34in
  • Application: 1/8 Onroad and Offroad
  • Connector: Deans
  • Scale: 1:8
  • Age Recommendation: 14+
  • Colour: Black
  • Material: Plastic


    Key Info:
    • Brand: Robitronic
    • Part No: ROBR01223
    • Barcode: 4046032087233

    Delivery & Returns

    Free Shipping

    This item is over £100, so qualifies for free standard UK shipping!

    Express Shipping

    Upgrade to next day from £3

    Worldwide Shipping

    Available at checkout

    Customer Reviews

    No specific product reviews yet, why not write one?
    Write a Review
    All reviews are subject to moderation

    Questions & Answers

    Real questions from real customers. Why not ask your own?
    Does this esc support a Sensor motor?
    Steve / 4th March 2020

    This ESC is sensorless, but apparently can power sensored motors without the lead/cable in sensorless mode, (But never tried it.)

    Ben @ Wheelspin Models
