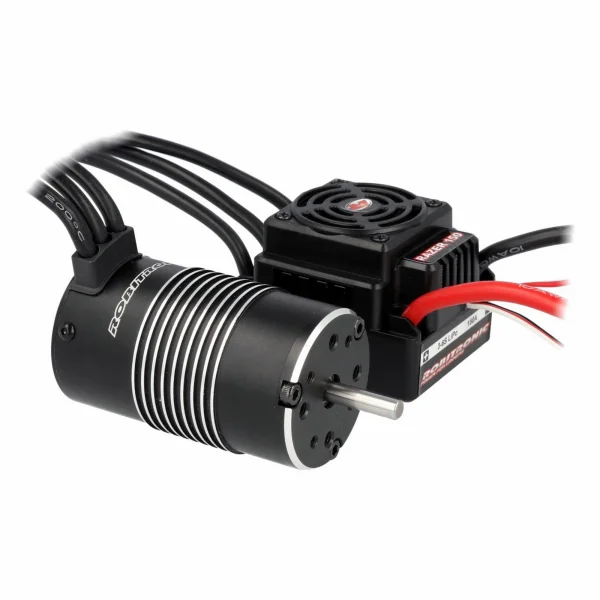

Robitronic Razer eight Brushless Motor & ESC Combo 150A 4268 1600kV

Robitronic Razer eight Brushless Motor & ESC Combo ROBR01260

Brand: Robitronic

Part No: ROBR01260

£166.16 RRP £174.90

Usually ships next day

UK Delivery
Get it by Tuesday 24th Nov (Order within 15h 24m)
Store Collection (Cannock)
Monday 23rd Nov, once stock arrives

Finance options available at checkout.

Popular with customers who buy products like the Robitronic Razer eight Brushless Motor & ESC Combo 150A 4268 1600kV

Description

The Robitronic Razer eight Brushless Motor & ESC Combo 150A 4268 1600kV, part number ROBR01260, combines a sensorless brushless motor with a 150A electronic speed controller.

Suggested for 1/8-scale radio-controlled applications, the combo provides a ready-wired power system with no soldering required for the supplied battery and motor connections. The ESC has a T-style battery connector and 4mm motor sockets, while the motor is supplied with flexible silicone connection cables and soldered 4mm plugs.

Features

The 4268 motor uses a 4-pole design, a polished 5mm steel rotor shaft and precision ball bearings. Its CNC-machined aluminium housing is designed to dissipate heat, and the motor can be disassembled for maintenance. The sensorless motor is waterproof and dustproof.

The ESC includes an on/off switch with setup button, simple programming through the set button and a separate port for an optional LED programming card. Its S-BEC supplies 6V with a 5A peak current. Protection functions include undervoltage shutdown, thermal protection and signal-loss protection.

Specifications

  • Motor: 4268 brushless, 1600kV, sensorless
  • ESC rating: 150A
  • ESC battery range: 3-6S
  • Battery connector: T-style plug
  • Motor connectors: 4mm plugs
  • Shipping weight: 0.80kg

What's Included

  • Razer eight Brushless Motor 4268 1600kV
  • Razer eight Brushless ESC 150A 3-6S
Secure Payments

Secured by Stripe

Robitronic Razer eight Brushless Motor & ESC Combo 150A 4268 1600kV Manuals & Guides

Specifications

Razer eight ESC

The Razer eight 150A controller has all the important features and settings on board that an ambitious 1/8 drive wants. The outstanding quality gives you a controller with the highest reliability and best efficiency for use in all 1/8 classes.

All cables are already wired ready for connection on the controller, no soldering necessary. The battery connect is a T-style plug and the motor connections are 4mm sockets.

Razer eight Motor

The Razer eight motors are a sensorless high-performance motor with massive power. Housed in a beautiful CNC milled aluminium case the finely balanced rotor with precision ball bearings offer pro-class features in a range of performance options. Ideal for converting brushed motor installations or for upgrading existing brushless motor setups the quality, performance and price offered by Razer will be a first choice for both the beginner and competitive drivers.

Designed with ease of use in mind they are wired ready to go without soldering and for ease of maintenance the motor can be disassembled.

Robitronic Razer eight Brushless Motor & ESC Combo 150A 4268 1600kV Key Features:

  • Razer eight ESC

    The Razer eight 150A controller has all the important features and settings on board that an ambitious 1/8 drive wants. The outstanding quality gives you a controller with the highest reliability and best efficiency for use in all 1/8 classes.

    All cables are already wired ready for connection on the controller, no soldering necessary. The battery connect is a T-style plug and the motor connections are 4mm sockets.

    Razer eight Motor

    The Razer eight motors are a sensorless high-performance motor with massive power. Housed in a beautiful CNC milled aluminium case the finely balanced rotor with precision ball bearings offer pro-class features in a range of performance options. Ideal for converting brushed motor installations or for upgrading existing brushless motor setups the quality, performance and price offered by Razer will be a first choice for both the beginner and competitive drivers.

    Designed with ease of use in mind they are wired ready to go without soldering and for ease of maintenance the motor can be disassembled.

  • 4-pole design for high torque and fast response
  • CNC machined, high-strength aluminium housing for optimum heat dissipation
  • Motor winding made of pure, double insulated copper wire
  • Precision ball bearing for optimal running smoothness and extended service life
  • Highly flexible silicone connection cable with soldered 4mm plugs
  • High strength and polished steel 5mm rotor shaft
  • Completely waterproof and dustproof
  • ON / OFF switch with setup button
  • S-BEC with 6V and 5A peak current
  • Plug and Play, battery and motor plug already soldered
  • Multiple protections: undervoltage shutdown, thermal protection and protection against signal loss.
  • Simple programming via set button
  • Separate programming port, easy connection of the LED program card (optional)

What's in the Box:

  • 1x eight Brushless Motor 4268 1600kV
  • 1x eight Brushless ESC 150A 3-6S

Robitronic Razer eight Brushless Motor & ESC Combo 150A 4268 1600kV Tech Specs:

  • Shipping Weight: 0.80kg / 1.77lbs
  • Connector: Deans (HCT)


    Key Info:
    • Brand: Robitronic
    • Part No: ROBR01260
    • Barcode: 4046032087370
