Savox Standard Size Digital Servo - 6.5KG - 0.14s

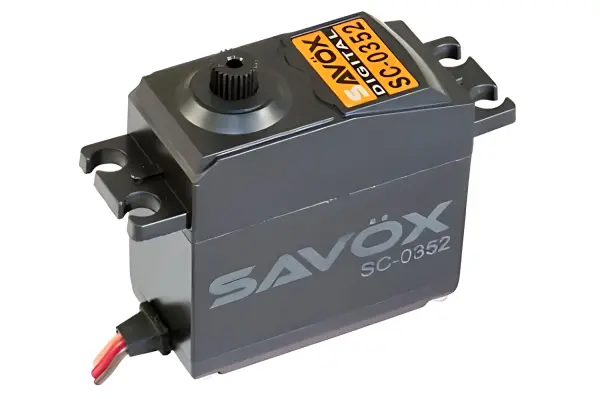

The Savox SC-0352 (part SAV-SC0352) is a standard-size digital servo offering reliable performance for a range of RC applications. Delivering 0.14 sec/60° transit speed and 6.5 kg-cm torque at 6.0V, it features dual bearings for smoother operation and a 25T (Futaba) output spline. A durable plastic case and industrial plastic gears complete a practical, value-focused design.

Features

• Strict production and quality control of plastic components
• Environmentally friendly design from materials to production
• Ideal for 30 size airplane applications

Specifications

• Speed @ 6.0V: 0.14 sec/60°
• Torque @ 6.0V: 90 oz-in / 6.5 kg-cm
• Weight: 42 g
• Bearing: Dual
• Type: Standard size
• Output Shaft: 25T spline (Futaba)
• Gear: Industrial plastic
• Case: Plastic
• Case Size (L x W x H): 40.7 x 20 x 39.4 mm

Important Note

Certain receiver and ESC combinations may cause brown-out issues when used with Savox servos. An external BEC or a BEC-stabilising receiver capacitor may be required for efficient, glitch-free operation in low-voltage electric setups.
