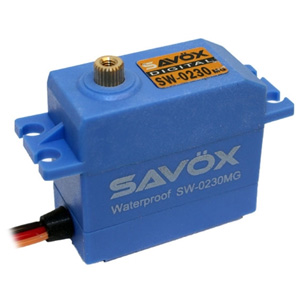

Savox SW0230MG Waterproof HV Digital Servo - 8kg / 0.13s
Brand: Savox
Part No: SAV-SW0230MG
THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
PLEASE SEE ITEM #SAV-SW0230MG+ AS A REPLACEMENT
The Savox SW0230MG Waterproof HV Digital Servo (part number SAV-SW0230MG) is a budget-friendly brushed unit that runs at 6.0V or 7.4V. It delivers a quick 0.13s transit and up to 8 kg-cm (111.1 oz-in) of torque at 7.4V, with durable metal gears and super-high 12-bit (4096) resolution for precise control in wet conditions.
Suggested compatibility includes RC cars, trucks, buggies and boats.
Key Features
- Waterproof construction for all-weather running.
- High-voltage capable (6.0V and 7.4V operation).
- Brushed motor with super-high 12-bit (4096) resolution.
- Strong metal gears for long life and durability.
- Environmentally friendly materials and production.
Specifications
- Dimensions: 41.8 x 20.2 x 38.0 mm
- Weight: 59 g
- Speed @6.0V: 0.16 s/60°
- Torque @6.0V: 90.3 oz-in
- Speed @7.4V: 0.13 s/60°
- Torque @7.4V: 111.1 oz-in (8 kg-cm)
- Gears: Metal
- Bearings: 2BB
- Case: Plastic
- Output spline: 25T
Secured by Stripe
SAVOX WATERPROOF 'HIGH VOLTAGE' DIGITAL SERVO 8KG/[email protected]
The SW0230MG is a budget friendly waterproof digital servo capable of operating at 6.0V and 7.4V. This brushed servo features a quick speed of .13 and 111.1 oz-in (8kg-cm) of torque 7.4V. It combines leading edge technology with super high 12-bit (4096) resolution and metal gears for your greater precision when dodging puddles. This is a great upgrade if your looking to drive your RC vehicle in any condition...rain, sleet, or snow.
Savox SW0230MG Servo Features:
- Combines leading edge technology with super high 12 bit (4096) resolution and metal gears.
- Waterproof.
- Brushed motor
- Extremely strong metal gears ensure long-life and durability.
- Our servos are totally green - from materials to production, these servos are environmentally friendly.
- Ideal for RC cars, trucks, buggies, and boats.
Spec check:
- Dimensions(mm): 41.8x20.2x38.0
- Weight(g): 59
- Speed(@6.0V sec/60): .16
- Torque(@6.0V oz-in): 90.3
- Speed(@7.4V sec/60): .13
- Torque(@7.4V oz-in): 111.1 (8kg)
- Gear: Metal
- Bearing: 2BB
- Case: Plastic
- 25 Tooth Spline
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: Savox
- Part No: SAV-SW0230MG
- Barcode: 4710006992136
- Max Voltage: 7.4v+ (LiPo)
- Gear Material:
• Metal
• Plastic
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
- Dimensions(mm): 41.8x20.2x38.0
Yes it would be fine, unless the car is been driven hard ! I'd look for a higher torque servo.
Yes should do
That's not a servo we sell, but looking at the specs online it looks to be standard size - so yes this should work fine and be a great upgrade.
Yes, blackout takes standard size throttle servo so this would fit fine.
No, it's too large for the Traxxas 1:16 cars.
Yes that would work well in your Savage XS.
Yes, that should work fine in your FTX Viper.
