ZTW Seal 120A Opto ESC for 6-12 Cells (ZTW6120400)
Brand: ZTW
Part No: ZTW6120400
Out of stock
Request Stock NotificationFinance options available at checkout.
Description

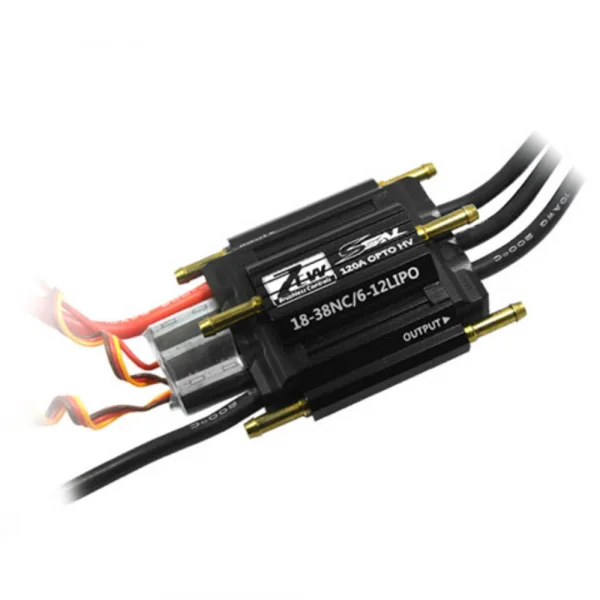

The ZTW Seal 120A Opto ESC (6-12 Cells), part number ZTW6120400, is a water-cooled brushless speed controller from ZTW's Seal marine range. It uses newer FETs that offer lower resistance and less heat dissipation, and a three pipe water cooling system increases the cooling area so heat is carried away faster. ZTW states that this allows higher power levels without the risk of burning out the controller.
The controller's MCU runs efficient code intended to give faster sync, accurate control and smooth throttle linearity, and it supports high RPM motors. Protection includes over temperature protection, automatic throttle shut down if the signal is lost, and power arming protection, which stops the motor running accidentally when the controller is switched on. Settings are adjusted using ZTW's new advanced programming software.
Specifications
- Length: 62 mm
- Height: 24 mm
- Burst current: 150 A
- Battery: 18-38 NiCd / 6-12 Li-Po
Secured by Stripe
Seal 120A Opto ESC (6-12 Cells) Manuals & Guides
Manuals & Guides
Specifications
Beautifully designed and manufactured, the new SEAL marine range of water-cooled brushless speed controllers by ZTW use new FETs that offer less resistance and less heat dissipation. ZTW has added additional water-pipes to increase the cooling area and so dissipate heat faster and with greater efficiency. The result enables higher power levels without fear of burning out the controller. Add to this a well-designed MCU with efficient code that makes for a faster sync and accurate control, and within this competitively priced package is a recipe for performance, reliability, and longevity.
Specification:

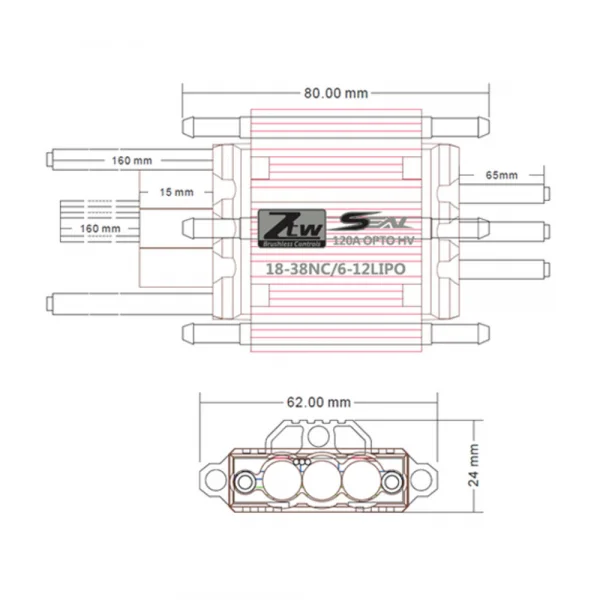

| Size (W x L x H): | 66 x 62 x 24mm |
| Weight (g): | 188 |
| Burst current (A): | 150 |
| Battery: | 18 - 38 NiCd / 6 - 12 Li-Po |
Seal 120A Opto ESC (6-12 Cells) Tech Specs:
Seal 120A Opto ESC (6-12 Cells) Key Features:
- Beautifully designed and manufactured, the new SEAL marine range of water-cooled brushless speed controllers by ZTW use new FETs that offer less resistance and less heat dissipation. ZTW has added additional water-pipes to increase the cooling area and so dissipate heat faster and with greater efficiency. The result enables higher power levels without fear of burning out the controller. Add to this a well-designed MCU with efficient code that makes for a faster sync and accurate control, and within this competitively priced package is a recipe for performance, reliability, and longevity.
Specification:
Size (W x L x H): 66 x 62 x 24mm Weight (g): 188 Burst current (A): 150 Battery: 18 - 38 NiCd / 6 - 12 Li-Po - Extremely low internal resistance
- Highly efficient three pipe water cooling system
- Super smooth and accurate throttle linearity
- Over temperature protection
- Auto throttle shut down in signal loss situation
- Supports high RPM motors
- Power arming protection (prevents the motor from accidentally running when switched ON)
- New advanced programming software
Seal 120A Opto ESC (6-12 Cells) Tech Specs:
- Weight: 125g / 4.41oz
- Shipping Weight: 0.08kg / 0.18lbs
- Product Height: 24mm / 0.93in
- Product Width: 65mm / 2.56in
- Product Length: 62mm / 2.44in
Key Info:
- Brand: ZTW
- Part No: ZTW6120400
- Barcode: 5051121222234
