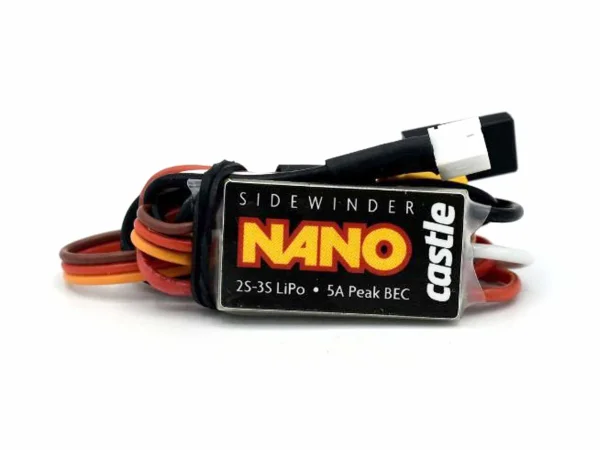

Sidewinder Nano Micro PnP ESC - 12.6V
Brand: Castle Creations
Part No: P-CC010-0176-01
£77.59
RRP £79.99
Out Of Stock
Request Stock NotificationThe Castle Creations Sidewinder Nano Micro PnP ESC (P-CC010-0176-01) packs serious control into a tiny footprint. Featuring CRYO-DRIVE technology for improved thermal performance at partial throttle, this ready-to-run 2–3S controller arrives pre-wired with an XT30 battery connector and a JST motor plug commonly used on aftermarket 1/24-scale outrunner motors.
Key Features
- Input voltage range: 2S–3S LiPo (12.6V max)
- Sensorless and brushed running modes
- Internal BEC: 5V fixed, 5A peak
- CRYO-DRIVE technology to minimise heat build-up during typical driving
- Transmitter programming for six common settings, including cutoff voltage and drag brake
- Castle Link tuning via Windows PC and Castle Link USB adapter (sold separately)
- Optional smartphone programming via B-Link Bluetooth Adapter (sold separately) and Castle Link app
- Audible alerts for diagnostics, including low-voltage cutoff
- Telemetry ready with Castle Creations Telemetry Link for S.BUS2 (sold separately) for select Futaba transmitters
Product Application & Suggested Compatibility
- Ideal for 1/24th scale 2WD or 4WD vehicles up to 453 g (1 lb). Suggested compatibility: Axial SCX24, Axial AX24, Element Enduro24, FMS FCX24.
- 1/18th crawlers up to 1.02 kg (2.25 lbs); no rock racing/hill climbing. Suggested compatibility: Axial UTB18, Traxxas TRX-4M, FMS FCX18.
Programming & Tuning
- Use a Windows-based PC (Windows 10 or higher) with the Castle Link USB adapter to access advanced parameters.
- Go wireless with the B-Link Bluetooth Adapter (sold separately) and the Castle Link app on iOS or Android.
What’s Included
- Sidewinder Nano ESC
- ESC Quick Start Guide
Secure Payments
Secured by Stripe
Overview
The SIDEWINDER NANO may be small in stature, but it's colossal in power and includes our proprietary CRYO-DRIVE Technologyresulting in improved thermal performance during partial throttle operation where the majority of driving occurs. The Sidewinder Nano is ready-to-run out of the box but can also be "tuned" for the drivers' preferences using a Windows based PC and a Castle Link USB adapter (sold separately) , or with a mobile device using Castle B-Link Bluetooth Adapter (sold separately).
Castle's newest software technology, CRYO-DRIVE minimizes the amount of time the ESC's electrical components spend generating heat by optimally controlling which components are being used while driving the motor. This is happening thousands of times per second, which greatly reduces the rate at which the ESC heats up. This results in significantly improved thermal performance during partial throttle operation where the majority of driving occurs. Your setup will be able to handle higher gear ratios, in heavier vehicles, with longer runs.
For over 25 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters download the BRAND NEW simple to install software from the Castle Creations website and you are ready to personalize your controller's settings. Requires Windows 10 or higher.
You can now WIRELESSLY PROGRAM settings with the free Castle-Link app available on the Apple App store or Google Play for Android devices and the Castle B-LinkT BluetoothT Adapter (sold separately). It is compact and lightweight installed in your vehicle, for anytime programming!
SIDEWINDER NANO is telemetry ready, which means owners of Futaba T4PX, 7PX and T7PXR Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the "unknown" parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.
SIDEWINDER NANO features Audible Alerts that will notify you, via audible chimes, of possible issues with calibrations and error conditions to help diagnose problems.
Key Info:
The SIDEWINDER NANO may be small in stature, but it's colossal in power and includes our proprietary CRYO-DRIVE Technologyresulting in improved thermal performance during partial throttle operation where the majority of driving occurs. The Sidewinder Nano is ready-to-run out of the box but can also be "tuned" for the drivers' preferences using a Windows based PC and a Castle Link USB adapter (sold separately) , or with a mobile device using Castle B-Link Bluetooth Adapter (sold separately).
The PnP version comes with an XT30 battery connectors and JST plug pre-installed on the battery and motor wires. The JST plug is commonly found on most aftermarket outrunner style motors for 1/24th scale.
Product Application:
- Ideal for 1/24th scale 2WD or 4WD vehicles up to 453g (1lbs). Vehicle examples: Axial SCX24, Axial AX24, Element Enduro24, FMS FCX24
- 1/18th crawlers up 1.02Kg (2.25lbs) - no rock racing/hill climbing. Vehicle Examples: Axial UTB18, Traxxas TRX-4m, FMS FCX18
- Sidewinder Nano ESC
- ESC Quick Start Guidee
- Input Voltage Range 2s-3s LiPo, 12.6V Max
- Sensorless and Brushed Running Modes
- Internal BEC 5V Fixed, 5A Peak
- CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
- Castle Link tuning via Windows PC and a Castle Link USB adapter (sold separately)
- Convenient TRANSMITTER PROGRAMMING for six common adjustable settings including cutoff voltage and drag brake
- Optional smartphone-based programming with the B-LINK Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store
- Audible alerts for easy diagnoses of common issues such as low-voltage cutoff
Cryo Drive
Castle's newest software technology, CRYO-DRIVE minimizes the amount of time the ESC's electrical components spend generating heat by optimally controlling which components are being used while driving the motor. This is happening thousands of times per second, which greatly reduces the rate at which the ESC heats up. This results in significantly improved thermal performance during partial throttle operation where the majority of driving occurs. Your setup will be able to handle higher gear ratios, in heavier vehicles, with longer runs.
Castle Link
For over 25 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters download the BRAND NEW simple to install software from the Castle Creations website and you are ready to personalize your controller's settings. Requires Windows 10 or higher.
B Link
You can now WIRELESSLY PROGRAM settings with the free Castle-Link app available on the Apple App store or Google Play for Android devices and the Castle B-LinkT BluetoothT Adapter (sold separately). It is compact and lightweight installed in your vehicle, for anytime programming!
Telemetry Link
SIDEWINDER NANO is telemetry ready, which means owners of Futaba T4PX, 7PX and T7PXR Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the "unknown" parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.
Alerts
SIDEWINDER NANO features Audible Alerts that will notify you, via audible chimes, of possible issues with calibrations and error conditions to help diagnose problems.
Key Info:
- Brand: Castle Creations
- Part No: P-CC010-0176-01
- Barcode: 0819326013454
