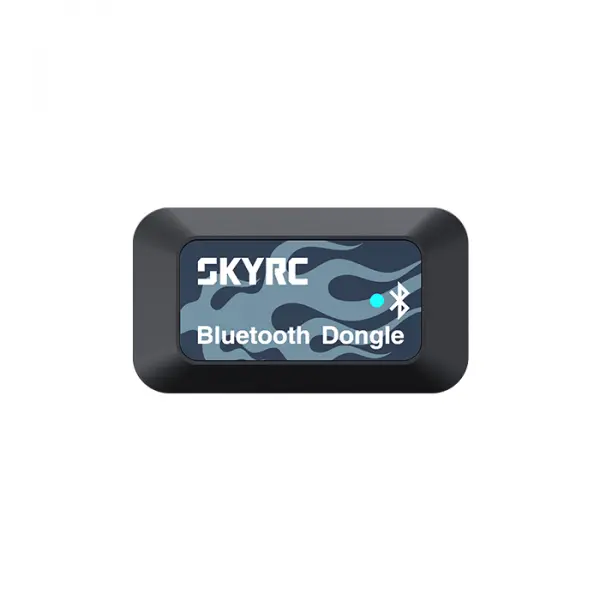

SKY RC Bluetooth Module

The SkyRC Bluetooth Module (SCH-SK-600135) adds wireless capability to supported SkyRC chargers, enabling control and real-time monitoring via the SkyCharger app. Leveraging Bluetooth 5.0, it offers increased range, speed and broadcast capacity over BLE 4.2 for a smoother, more reliable connection.

Custom-tuned for selected SkyRC professional chargers with an embedded proprietary protocol, the dongle supports instant wake-and-pair behaviour for quick start-ups, while conserving power in sleep mode when idle. A clear blue LED indicates status at a glance.

Features

• Control and monitor charging with the SkyCharger app
• Bluetooth 5.0 for higher speed, longer range and improved broadcast capacity
• Instant pairing from low-power sleep mode
• Scan to Go: scan a QR code to charge/discharge a specific battery
• At-a-glance status and data monitoring
• Micro USB interface

Specifications

• Case size: 45 x 25 x 13 mm
• Weight: 9 g
• Input voltage: 4.5–5.5 V
• Input current: ≤ 20 mA
• Working power: 110 mW (max)
• Bluetooth version: 5.0
• Range: 15 m
• Interface: Micro USB
• Bluetooth status: LED flashes blue (ready), solid blue (connected)
• Working temperature: -10 to 55 °C (14 to 131 °F)
• Storage temperature: -20 to 70 °C (-4 to 158 °F)

Suggested Compatibility

• Selected SkyRC chargers that incorporate the proprietary embedded protocol for use with the SkyCharger app
