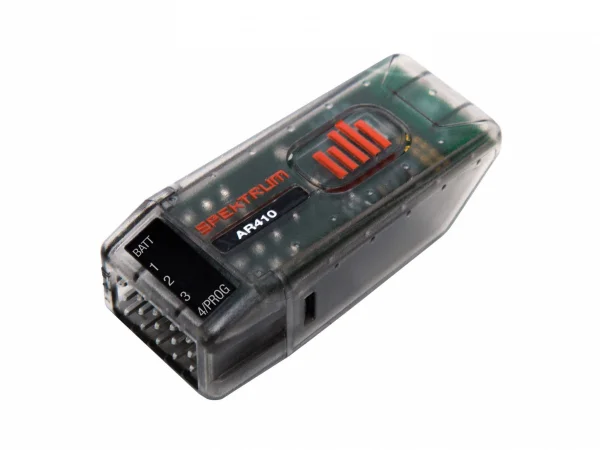

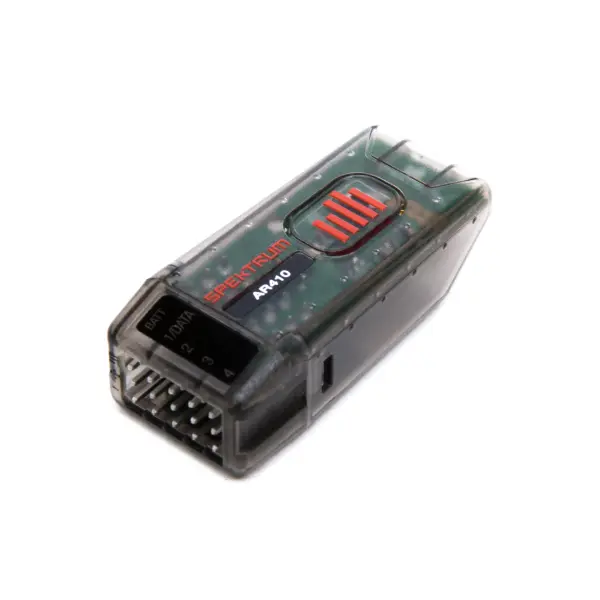

Spektrum AR410 4 Channel Sport Antenna-less Air Receiver

Key Features

• Compact low-cost, full-range DSMX receiver with telemetry
• Antenna-less design increases convenience, performance and durability
• Integrated flight log and receiver voltage telemetry with fly-by range
• Streamlined, end-pin design in a lightweight hard-case
• Large bind-button eliminates the need for the old bind plug
• Lightweight park flyer-size with full-range performance
• Ideal for most aircraft including indoor sport models
• Capable of low latency 11ms and standard 22ms Frame Rates.

Overview

The Spektrum AR410 air receiver is a full-range, 4-channel sport receiver with DSMX/DSM2 compatibility and a compact footprint that’s streamlined to fit in a wide range of models. More than just a simple box that connects your servos, the AR410 features an internal antenna design that delivers a whole new world of installation ease that includes a higher-level of durability and convenience while maintaining superior full-range performance for your electric or engine powered aircraft.

In addition, the AR410 has been integrated with fly-by range telemetry that includes flight log and receiver battery pack voltage data. Access to telemetry is automatic when used with telemetry-capable Spektrum transmitters.* There’s nothing to do in order to enjoy the peace-of-mind instantly knowing receiver battery voltage offers.

No more bind plugs! Instead, a large bind button is used to enter the bind mode. All combined Spektrum gives you more in a basic receiver, like the AR410, so that you can fly with the highest sense of confidence possible and have more fun.

*Not compatible with the TM1000 and TM1100 external telemetry modules

Antenna-less

Unlike old technology that requires an external antenna to achieve adequate reception, the new AR410 features an internal antenna design that offers superior full-range performance. In addition, installation is easier than ever, plus there’s no longer a risk of failure due to long-term wire exposure or abuse.

Bind, Redefined

New technology eliminates the need for the old bind plug. With the AR410, a large top-located button makes binding more convenient than ever while two bind-sequence options make the process simpler by allowing you to bind while powering up or after receiver power is connected.

Telemetry

Built into the AR410 is telemetry that automatically delivers vital data to your Spektrum telemetry-capable transmitter. With fly-by range, you can retrieve flight log data such as any fades, frame losses or holds and see receiver voltage status in real-time.

Compatible Products Spektrum AR410 DSMX 4-Channel Sport Receiver SPMAR410 is compatible with FCEF060001C, PKZ6100, PKZ6180, SPM6610SC

Spektrum AR410 4 Channel Sport Antenna-less Air Receiver Specfications:

• Antenna Length: : Internal
• Band: : 2.4GHz
• Bind Method: : Bind Button
• Channels: : 4
• Data Port: : No
• Failsafe: : Yes
• Flight Log Compatible: : No
• Height: : 0.55 in (13.9mm)
• Input Voltage: : 3.5-9V
• Length: : 1.78 in (45.2mm)
• Modulation: : DSMX
• Number of Receivers: : 1
• Range: : Full
• Resolution: : 2048
• Rev Limiter: : No
• Technology: : Smart Technology
• Telemetry: : Integrated
• Type: : AR410 4 Channel Sport Receiver
• Water-Resistant: : No
• Weight: : 0.25 oz (7 g)
• Width: : 0.79 in (20.0mm)

• Brand: Spektrum
• Part No: SPMAR410
• Barcode: 605482369425
• Frequency: 2.4Ghz
• Channels: 4 Channel
• Fitment: Option Part
• Fitment: Standard Part
