Spektrum S650 5Kg Servo - Plastic Gear

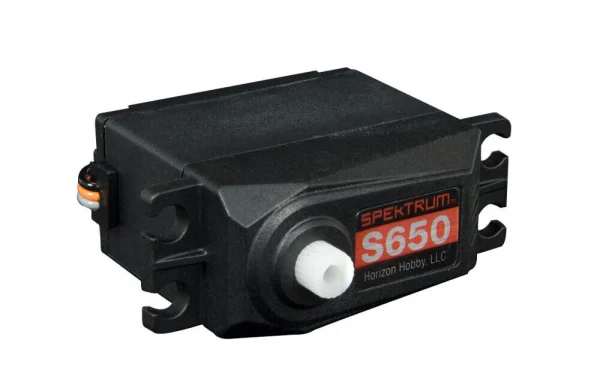

The Spektrum S650 5Kg Servo is a nylon (plastic) gear unit delivering up to 5.9 kg-cm (82 oz-in) of torque at 6.0V. It features a 23-tooth spline and a compact case size to help with straightforward installation. Identified by part number SPMS650, it is designed to operate at 6.0V.

Dimensions are 40 x 20 x 39 mm (1.58 x 0.79 x 1.55 in), providing a practical footprint for many RC setups where space is limited.

Key Specifications

• Gear Type: Nylon
• Maximum Servo Torque: 82 oz-in, 5.9 kg-cm at 6V
• Spline Count: 23-tooth
• Input Voltage: 6V
• Servo Operating Voltage: 6.0V
• Product Length: 1.58" (40 mm)
• Product Width: 0.79" (20 mm)
• Product Height: 1.55" (39 mm)
