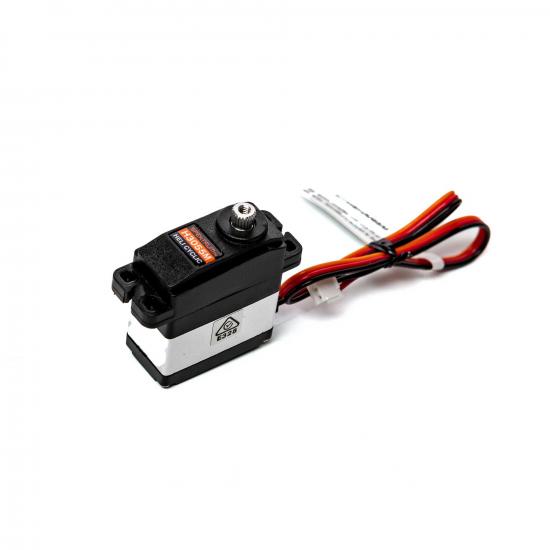

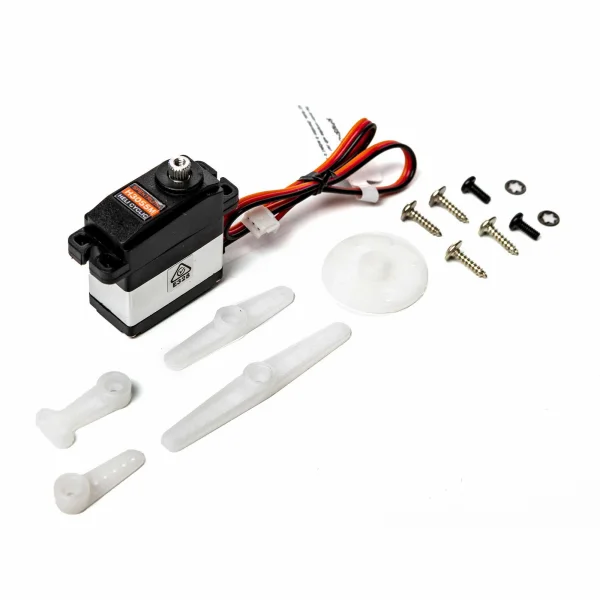

Sub-Micro Digital Metal Gear Servo Micro Connector

The Blade SPMSH3055M H3055 Sub-Micro Digital Metal Gear Servo with micro connector delivers high speed, accuracy and dependable holding power for compact RC helicopter applications. Running at 333Hz with a rapid 0.053s transit speed, it offers crisp cyclic response in a lightweight 12.9g form factor. Metal gears and a bearing-supported output provide durability in demanding flight conditions.

Overview

With suggested compatibility for 250–450 size heli cyclic setups, the H3055 suits upgrades on many Blade Bind-N-Fly models and kit builds that require a sub-micro servo. Operating from 4.8–6.0V, it develops up to 36 oz-in of torque, combining speed and authority for precise control.

Key Specifications

• Servo Type: Digital
• Gear Type: Metal
• Servo Size Category: Sub-Micro
• Application (suggested): 250–450 size heli, cyclic
• Frequency: 333Hz
• Transit Speed: 0.053s
• Maximum Torque: 29 oz-in (2.1 kg-cm) at 4.8V; 36 oz-in (2.6 kg-cm) at 6.0V
• Operating Voltage: 4.8–6.0V
• Bearing: Single
• Deadband: 2
• Programmable: No
• Connector Wire Length: 200mm (7.87")
• Wire Gauge: 22 AWG
• Dimensions (L × W × H): 23.0 × 12.0 × 29.6mm (0.91 × 0.47 × 1.17")
• Weight: 12.9g (0.46 oz)
