SW 4 - 12.6V - 2A BEC - WP SENSORLESS ESC W/1412-2100 SENSORED
Brand: Castle Creations
Part No: P-CC010-0164-08
Out Of Stock
Request Stock NotificationThe Castle Creations SW 4 - 12.6V - 2A BEC - WP Sensorless ESC w/1412-2100 Sensored (P-CC010-0164-08) pairs the proven Sidewinder 4 speed controller with a 1412-2100Kv sensored brushless motor. Designed for 1/10 scale performance, this combo delivers cooler running and longer sessions thanks to CRYO-DRIVE technology, with the robustness of a waterproof, epoxy‑potted ESC and a 30 mm removable fan.
Suggested Applications
- 2WD and 4x4 short course trucks
- 1/10th monster trucks
- Rock racers
Key Features
- Input voltage range (for 1412-2100Kv combo): 2S–3S LiPo
- Sensorless and brushed running modes
- 5.0 V fixed, 2 A internal BEC
- CRYO-DRIVE technology reduces heat generation for improved thermal performance, especially at partial throttle
- Durable injection-moulded case potted in waterproof epoxy; 30 mm removable fan
- Suggested compatibility includes S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
- Audible alerts for motor over-temperature and low-voltage cutoff
- Enhanced drag brake functionality and smoother sensorless startups
- Convenient transmitter programming for six common settings, including cutoff voltage and drag brake
- Additional settings and software updates via Windows-based Castle Link software and USB adapter (sold separately)
- Optional smartphone programming with the Castle B‑Link Bluetooth adapter (sold separately) and Castle Link App (Google Play / Apple App Store)
What’s Included

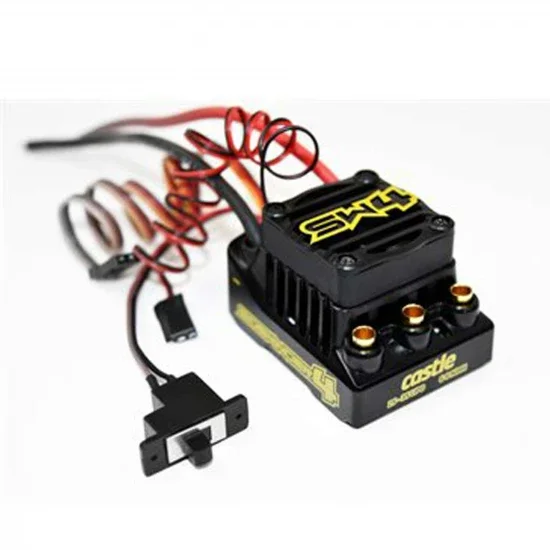

- 010-0164-00 Sidewinder 4 Sensorless ESC

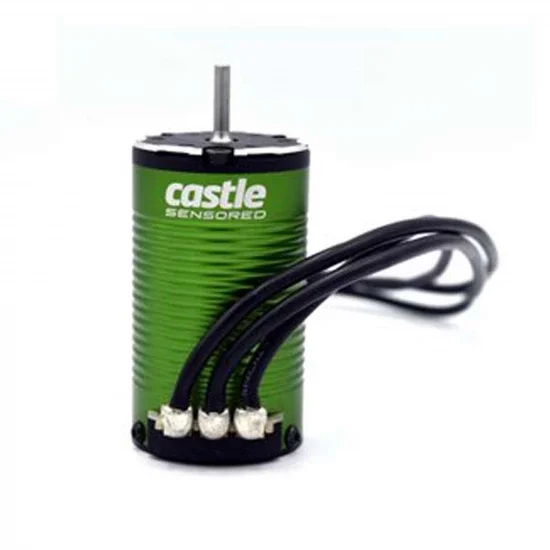

- 060-0094-00 Castle 1412 Sensored Motor – 2100Kv
- Quick Start Guide
- 1/10th scale gearing chart
- Decal sheet
Programming And Tuning
Fine-tune your setup with Castle Link on Windows (requires USB adapter, sold separately) for access to additional parameters and firmware updates. For on-the-go adjustments, add the compact Castle B‑Link Bluetooth adapter (sold separately) to adjust settings wirelessly via the Castle Link App.
With powerful hardware, refined control and robust waterproof construction, the Castle Creations Sidewinder 4 and 1412‑2100Kv motor combo offers a versatile upgrade for 1/10 scale bashing, racing and trail use.
Secured by Stripe
While the all new SIDEWINDER 4T builds upon Castle's most popular platform, the SIDEWINDER 1:10 SCALE SERIES, it is the first of its kind to run Castle's newest technology, CRYO-DRIVET. CRYO-DRIVET combines technology from cutting-edge hardware and software advancements to increase thermal performance. COOLER TEMPS mean LONGER RUNS and MORE POWER in your SIDEWINDER 4 setup.
The SIDEWINDER 4 is a versatile ESC and is accepted in a wide variety of applications. Whether throwing dirt, ripping through a corner or steadily dominating the trails, we've got you covered!
This combo includes a Sidewinder 4 ESC and 1412-2100 sensored* motor. The 1412-2100 is ideal for 2WD and 4x4 Short Course Trucks, 1/10th Monster Trucks, and Rock Racers.
In The Box
- 010-0164-00 SIDEWINDER 4 SENSORLESS ESC ONLY
- 060-0094-00 CASTLE 1412 SENSORED MOTOR - 2100KV
- Quick Start Guide
- 1/10th scale gearing chart
- Decal sheet
- Input Voltage Range for 1412-2100 Kv Combo : 2s-3s LiPo
- SENSORLESS and BRUSHED Running Modes
- 5.0 VOLTS FIXED, 2AMP internal BEC (Battery Eliminator Circuit)
- CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs.
- ESC is housed in a durable injection molded case and potted in WATERPROOF epoxy to protect the electronics and promote efficient heat transfer. 30mm removable fan
- Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
- AUDIBLE ALERTS for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff.
- Enhanced drag brake functionality
- Smoother sensorless startups.
- Convenient TRANSMITTER PROGRAMMING for six common adjustable settings, including cutoff voltage and drag brake.
- Additional settings and software updates available via Windows-based Castle Link software and USB adapter (sold separately)
- Optional smartphone-based programming with the B-LINKT BLUETOOTH ADAPTER (sold separately) and Castle Link App available on Google Play or Apple App Store
Castle's newest software technology, CRYO-DRIVE minimizes the amount of time the ESC's electrical components spend generating heat by optimally controlling which components are being used while driving the motor. This is happening thousands of times per second, which greatly reduces the rate at which the ESC heats up. This results in significantly improved thermal performance during partial throttle operation where the majority of driving occurs. Your setup will be able to handle higher gear ratios, in heavier vehicles, with longer runs.
For over 25 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters download the BRAND NEW simple to install software from the Castle Creations website and you are ready to personalize your controller's settings. Requires Windows 10 or higher.
You can now WIRELESSLY PROGRAM settings with the free Castle-Link app available on the Apple App store or Google Play for Android devices and the Castle B-LinkT BluetoothT Adapter (sold separately). It is compact and lightweight installed in your vehicle, for anytime programming!
SIDEWINDER NANO is telemetry ready, which means owners of Futaba T4PX, 7PX and T7PXR Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the "unknown" parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.
SIDEWINDER 4 features Audible Alerts that will notify you, via audible chimes, of possible issues with calibrations and error conditions to help diagnose problems.
ESC is housed in a durable injection molded case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer.
Key Info:
- Brand: Castle Creations
- Part No: P-CC010-0164-08
- Barcode: 0819326013300
