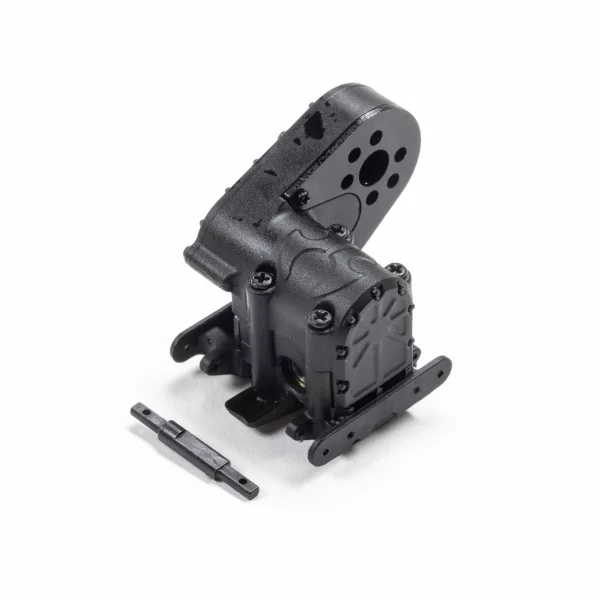

Axial SCX30 Assembled Transmission - AXI-3311

The Axial Transmission - Assembled: SCX30 (part number AXI-3311) is an assembled transmission listed as a chassis part for SCX30. The manufacturer identifies SCX30 as the suggested application. This assembly brings together the transmission gears, worm gear components, output shaft, bearings, O-ring, transmission cases, skid plate and motor plate, along with the screws required among the supplied parts. It is provided as a collection of transmission components rather than as a separate body, wheel or tyre accessory.

The contents include transfer and idler gears, a worm gear pinion and ring gear, plus the output shaft for the transmission assembly. The upper and lower transmission cases enclose the assembly, while the motor plate and included fasteners form part of the listed chassis components. Bearing sizes and screw dimensions are retained below to help identify the supplied parts.

What's Included

• Transfer gear, Mod 0.3, 30T, transmission
• Idler gear, Mod 0.3, 40T, transmission
• M1.4 x 0.3mm x 5mm button-head screw
• Worm gear pinion, 2T, 2/12T, transmission
• Worm gear ring gear, 16T, 2/12T, transmission
• Transmission output shaft
• 3mm x 0.5mm O-ring
• Six M1.0 x 0.25mm x 6mm button-head screws
• Four M1.4 x 0.3mm x 12mm button-head screws
• Two M1.0 x 0.25mm x 4mm button-head screws
• Two 3mm x 6mm x 2mm ball bearings
• Four 3mm x 6mm x 2.5mm ball bearings
• Transmission cover
• Upper transmission case
• Lower transmission case with skid plate
• Transmission motor plate
