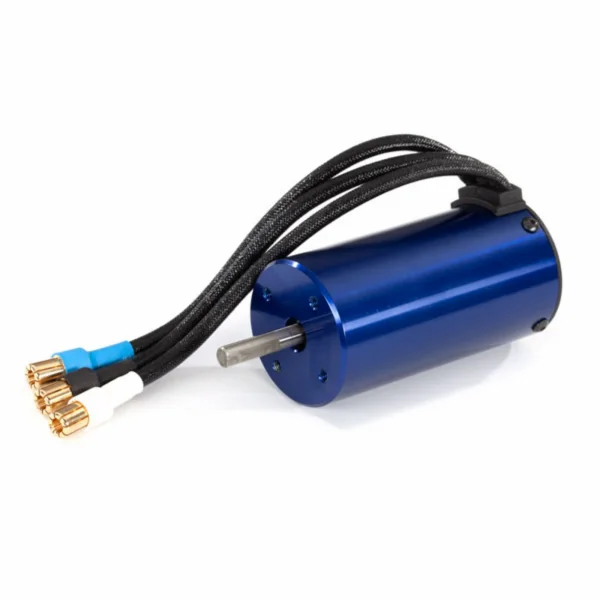

Traxxas Motor, Velineon 540XL, 2400Kv 70mm, brushless (assembled with 12-gauge wire and gold-plated bullet connectors) (for MAXX) — image 1 of 2

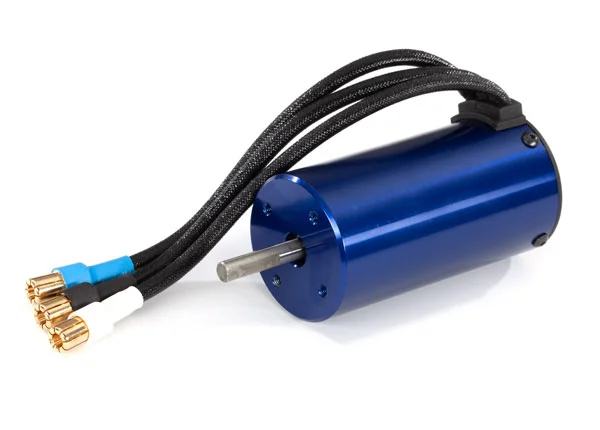

Traxxas Motor, Velineon 540XL, 2400Kv 70mm, brushless (assembled with 12-gauge wire and gold-plated bullet connectors) (for MAXX) — image 2 of 2
Traxxas Motor, Velineon 540XL, 2400Kv 70mm, brushless (assembled with 12-gauge wire and gold-plated bullet connectors) (for MAXX)
Traxxas Motor, Velineon 540XL, 2400Kv 70mm, brushless (assembled with 12-gauge wire and gold-plated bullet connectors) (for MAXX)

Traxxas Velineon 540XL Brushless Motor TRX3461

Brand: Traxxas

Part No: TRX3461

£125.35 RRP £131.95
Pre-Order

Finance options available at checkout.

Fits These Models (8)

Show all 8 models

Popular with customers who buy products like the Traxxas Motor, Velineon 540XL, 2400Kv 70mm, brushless (assembled with 12-gauge wire and gold-plated bullet connectors) (for MAXX)

Description

The Traxxas Motor, Velineon 540XL, 2400Kv 70mm, brushless (assembled with 12-gauge wire and gold-plated bullet connectors) (for MAXX), is part number TRX3461, a brushless electric motor for radio-controlled vehicles. It uses a long-format 540XL design with a 4-pole 2400Kv specification, and is supplied with 12-gauge wire and 6.5mm gold-plated bullet connectors.

This motor has a 5mm output shaft and a low-maintenance design. The manufacturer identifies it as a standard replacement for Maxx and Stampede 4X4 VXL trucks, so these applications represent suggested compatibility. It is not intended for marine models. The motor is assembled and ready with its wiring and connectors installed, making it a replacement component rather than a motor supplied without connections.

Finished in blue aluminium, the motor is intended for electric-powered 1:10 scale applications. Its 2400Kv rating identifies the motor speed characteristic, while the 4-pole configuration and long-format housing form part of the Velineon 540XL specification. The dimensions and weight below describe the individual motor.

Specifications

  • Motor type: Brushless, 4-pole Velineon 540XL
  • Motor rating: 2400Kv
  • Output shaft: 5mm
  • Connectors: 6.5mm gold-plated bullet connectors
  • Weight: 347g
  • Dimensions: 128mm long × 47mm wide × 64mm high
  • Scale: 1:10
  • Power source: Electric

Specifications

The Velineon 540XL brushless motor delivers massive torque with brushless efficiency. Motor comes equipped with 6.5 mm gold-plated bullet connectors. Standard replacement for Maxx and Stampede 4X4 VXL trucks. Not intended for marine models.

Traxxas Motor, Velineon 540XL, 2400Kv 70mm, brushless (assembled with 12-gauge wire and gold-plated bullet connectors) (for Maxx) Key Features:

  • Long format brushless motor
  • 4-pole 2400Kv
  • 5mm output shaft
  • Low-maintenance design

Traxxas Motor, Velineon 540XL, 2400Kv 70mm, brushless (assembled with 12-gauge wire and gold-plated bullet connectors) (for Maxx) Tech Specs:

  • Weight: 347g / 12.24oz
  • Shipping Weight: 0.35kg / 0.77lbs
  • Product Height: 64mm / 2.5in
  • Product Width: 47mm / 1.85in
  • Product Length: 128mm / 5.05in
  • Connector: Bullet
  • Scale: 1:10
  • Age Recommendation: 14+
  • Colour: Blue
  • Material: Aluminium
  • Power Source: Electric


    Key Info:
    • Brand: Traxxas
    • Part No: TRX3461
    • Barcode: 020334346100
