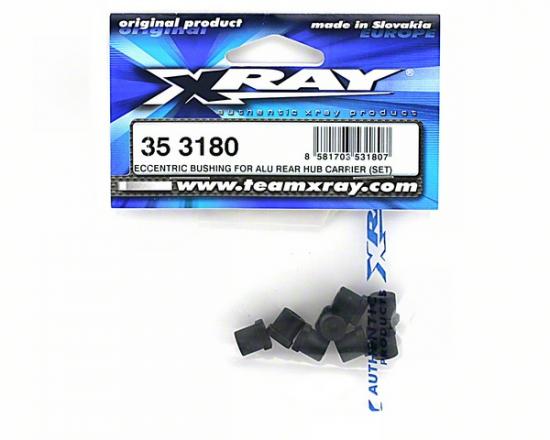

XRay Eccentric Bushing For Aluminium Rear Hub Carrier (Set)
XRay Eccentric Bushing For Aluminium Rear Hub Carrier (Set)
XRay Eccentric Bushing For Aluminium Rear Hub Carrier (Set)
XRay Eccentric Bushing For Aluminium Rear Hub Carrier (Set)

XRay Eccentric Bushing For Aluminium Rear Hub Carrier (Set)

Brand: XRay

Part No: XR353180

£15.19 RRP £15.99

Shadow Stock: Usually ships next day

Collect Instore
Request Price Match Ask a Question Write a Review

The XRay XR353180 Eccentric Bushing Set is a moulded composite insert kit for fine-tuning rear suspension geometry on the XB8 platform. Designed for use with aluminium rear hub carriers, the clearly marked bushings allow up to nine geometry settings by exchanging and orienting the inserts.

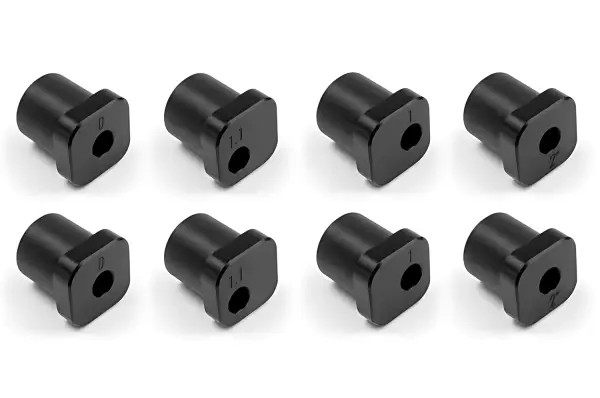

Set Includes

  • 0: No offset; hole centred in the bushing
  • 1: Hole offset 1 mm from centre
  • 1.1: Hole offset 1 mm vertical and 1 mm horizontal from centre
  • 2: 2° outboard toe-in bushing

Important Note

Always use the same bushing on both aluminium rear hubs. When using an eccentric hole bushing (1, 1.1 or 2), the left side must be oriented opposite to the right side.

Suggested Compatibility

  • XRay XB8 buggies
  • Aluminium Rear Hub Carriers #353355 and #353365
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

This is a set of optional molded composite eccentric bushings for the Xray XB8 line of buggies. These eccentric bushings will work with aluminum rear hub carriers #353355 and #353365. The eccentric bushings are used for rear suspension geometry adjustment. Exchanging the bushings allows 9 different geometry settings. Each bushing is marked for easy identification.

The set of bushings includes the following:

  • 0 = no offset; hole in center of bushing
  • 1 = hole offset 1mm from center
  • 1.1 = hole offset 1mm vertical and 1mm horizontal from center
  • 2 = 2° outboard toe-in bushing

    • Important: Always use the same bushing on left and rear aluminum rear hub and if you use an eccentric hole bushing (1, 1.1 and 2), left side must be opposite to the right side.

    Part Compatibility:
  • XRAY XB8


Key Info:
  • Brand: XRay
  • Part No: XR353180
  • Barcode: 8581703531807
  • Fitment: Option Part
