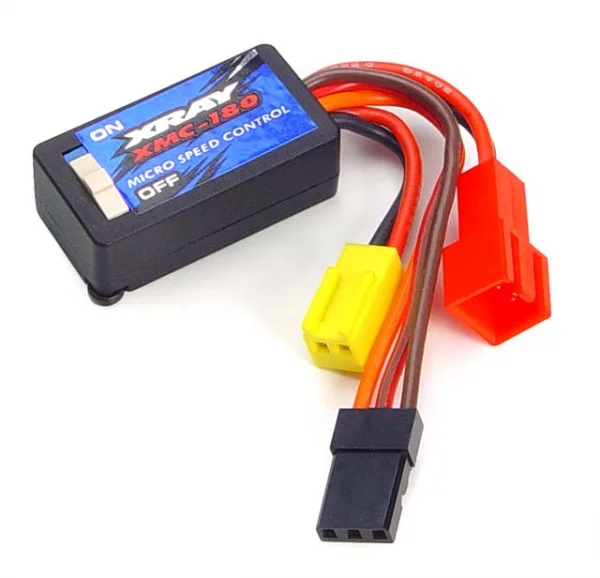

XRay Micro Speed Controller 180 With Reverse

The XRAY XMC180 Micro Speed Controller with Reverse (XR389180) is a compact, high-quality ESC for micro RC applications. Built on SMD technology for a minimal footprint, it offers smooth, proportional throttle and braking alongside an integrated BEC to power onboard electronics.

Key Features

• Reverse function for easy manoeuvring
• Proportional throttle and braking
• Integrated BEC: 5V / 0.5A
• SMD construction for compact size

Specifications

• Input power: 4–5 cell NiMH/NiCd (4.8–6.0V)
• Continuous current: max. 3.6A
• Peak current: max. 27A / 0.05 sec
• PWM frequency: 1900 Hz
• Resistance: 0.138 Ω (min @ 7.5V), 0.206 Ω (max @ 6V)
• BEC output: 5V / 0.5A
• Operating temperature range: 0–40°C (32–72°F)

Suggested Compatibility

• XRAY M18 micro racecar

Important Notes

• Designed for use only with micro stock motors.
• Do not use with micro modified or super size motors, as this can damage the ESC.
