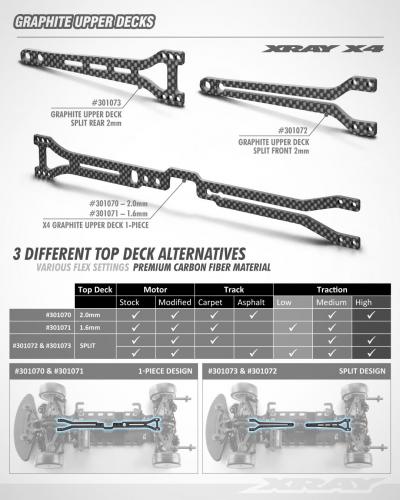

XRay X4 Graphite Upper Deck 1.6mm
Brand: XRay
Part No: XR301071
£44.64
RRP £46.99
Shadow Stock: Usually ships within 2 days
Upgrade your touring car’s flex characteristics with the XRay X4 Graphite Upper Deck 1.6mm (XR301071). This thinner graphite top deck is recommended for low- to medium-traction conditions when used with an aluminium chassis and in modified class. Milled holes accept special tweak-free top deck screws, while the refined shape aims to deliver maximum traction with confident steering feel.
Features
- Machined from 1.6mm graphite for optimised flex
- Specifically shaped to balance maximum traction with great steering
- Milled holes for tweak-free top deck screws
- Recommended for low- to medium-traction use with aluminium chassis and for modified class
- Four adjustable flex characteristics via motor-mount connection
- Part number: XR301071
Flex Settings
- Soft: No bushing or bearing — maximum flex and steering; less on‑power stability.
- Soft‑Medium: Connect via ball bearing — slightly less steering, improved stability.
- Medium: Connect via special screw M3x5.5mm behind the layshaft — slightly less steering, improved stability.
- Stiff: Connect via special screws M3x5.5mm behind and in front of the layshaft — maximum stability and improved steering response.
As the 1.6mm top deck is more fragile, XRay suggests using the stiff setting for better durability.
Secure Payments
Secured by Stripe
The thinner 1.6mm graphite top deck is recommended for use in low- to medium-traction conditions with the aluminium chassis and for modified class. The graphite top deck features milled holes for special tweak-free top deck screws.
Machined from 1.6mm graphite material, the shape of the top deck has been specifically designed to achieve maximum traction and great steering characteristics at the same time.
The unique top deck flex settings allows easy adjustment of the flex between 4 different characteristics.
The top deck can be connected to the motor mount using these alternatives:
1.) Soft setting - No bushing or bearing is used. This allows maximum flex and provides maximum steering. However, the car is less stable on-power.
2.) Soft-medium setting - The top deck is connected to the motor mount via ball bearing. This setting eliminates a bit of steering but improves stability.
3.) Medium setting - The top deck is connected to the motor mount via special screw M3x5.5mm behind layshaft. This setting eliminates a bit of steering but improves stability.
4.) Stiff setting - The top deck is connected to the motor mount via special screws M3x5.5mm behind and in front of layshaft. This setting provides maximum stability. And also improves steering response.
As the 1.6mm top deck is more fragile, we suggest to use stiff setting for better durability.
Key Info:
Machined from 1.6mm graphite material, the shape of the top deck has been specifically designed to achieve maximum traction and great steering characteristics at the same time.
The unique top deck flex settings allows easy adjustment of the flex between 4 different characteristics.
The top deck can be connected to the motor mount using these alternatives:
1.) Soft setting - No bushing or bearing is used. This allows maximum flex and provides maximum steering. However, the car is less stable on-power.
2.) Soft-medium setting - The top deck is connected to the motor mount via ball bearing. This setting eliminates a bit of steering but improves stability.
3.) Medium setting - The top deck is connected to the motor mount via special screw M3x5.5mm behind layshaft. This setting eliminates a bit of steering but improves stability.
4.) Stiff setting - The top deck is connected to the motor mount via special screws M3x5.5mm behind and in front of layshaft. This setting provides maximum stability. And also improves steering response.
As the 1.6mm top deck is more fragile, we suggest to use stiff setting for better durability.
Key Info:
- Brand: XRay
- Part No: XR301071
- Barcode: 8581703010715
