Add-ons and accessories that go with the ZTW Shark 100A SBEC ESC G2 (2-6 Cells) (Water-cooled)
Description

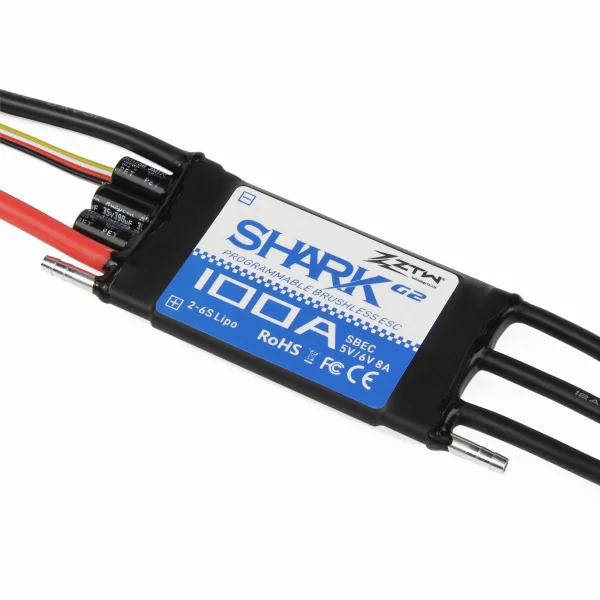

The ZTW Shark 100A SBEC ESC G2 (2-6 Cells) (Water-cooled), part number ZTW9100211, is a programmable brushless marine electronic speed controller for R/C model boats. It supports battery setups from 2 to 6 cells and combines a 100A rating with a built-in switch-mode BEC. The controller is waterproof and uses water cooling to dissipate heat during operation.
A 32-bit microprocessor processes input signals quickly, while the throttle system provides smooth start-up and accurate throttle linearity. The ESC supports high-RPM motors and offers two selectable running modes: forward and reverse, or forward only. Programming is available through a phone app or LCD program card, allowing the controller to be configured for the intended model boat setup.
Protection And Control Features
The Shark 100A G2 includes several functions intended to control operation and protect the electronics. Over-temperature protection monitors heat, while low-voltage and phase-loss protection address battery and motor conditions. Signal-loss throttle shut-down stops the throttle output if the receiver signal is interrupted. Power arming protection helps prevent the motor from starting accidentally when the ESC is switched on, and the high-throttle safety function prevents arming when the throttle stick is not fully closed.
Specifications
- Application: R/C model boats
- Battery range: 2-6 cells
- Weight: 100g
- Dimensions: 96 x 44 x 13mm
- Cooling: Water-cooled
- Running modes: Forward and reverse; forward only
Secured by Stripe
ZTW Shark 100A SBEC ESC G2 (2-6 Cells) (Water-cooled) Manuals & Guides
Specifications
Designed specifically to provide a solid, hassle-free performance, Shark programmable brushless marine ESCs offer high quality components programmed with ZTW s mature software at a price that ll have you reaching for your bank card. Now sporting super-fast 32-bit processing power, each controller is water-cooled, waterproof and packs a built-in switch-mode BEC. But that's not all. Featuring over temperature protection, a high-throttle safety function (that prevents the ESC from arming the motor if the throttle stick is not fully closed) and two running modes, there really isn t a better alternative for those who seek an affordable fit 'n' forget solution.
ZTW Shark 100A SBEC ESC G2 (2-6 Cells) (Water-cooled) Key Features:
- Designed specifically to provide a solid, hassle-free performance, Shark programmable brushless marine ESCs offer high quality components programmed with ZTW s mature software at a price that ll have you reaching for your bank card. Now sporting super-fast 32-bit processing power, each controller is water-cooled, waterproof and packs a built-in switch-mode BEC. But that's not all. Featuring over temperature protection, a high-throttle safety function (that prevents the ESC from arming the motor if the throttle stick is not fully closed) and two running modes, there really isn t a better alternative for those who seek an affordable fit 'n' forget solution.
- Super smooth start up and accurate throttle linearity.
- 32-bit microprocessor affords greater processing power and faster input signals.
- 100% waterproof.
- Water-cooling system ensures ultra efficient heat dissipation.
- Light and compact.
- Over temperature protection.
- Low voltage protection.
- Phase loss protection.
- Auto throttle shut down in signal loss situation.
- Supports high RPM motors.
- Power arming protection (prevents the motor from accidentally running when switched on).
- Programmable via phone app or LCD program card.
- Two running modes forward / reverse and forwards only.
ZTW Shark 100A SBEC ESC G2 (2-6 Cells) (Water-cooled) Tech Specs:
- Weight: 100g / 3.53oz
- Shipping Weight: 0.12kg / 0.26lbs
- Product Height: 13mm / 0.51in
- Product Width: 44mm / 1.71in
- Product Length: 96mm / 3.78in
- Application: R/C model boats
Key Info:
- Brand: ZTW
- Part No: ZTW9100211
- Barcode: 6975514990151
