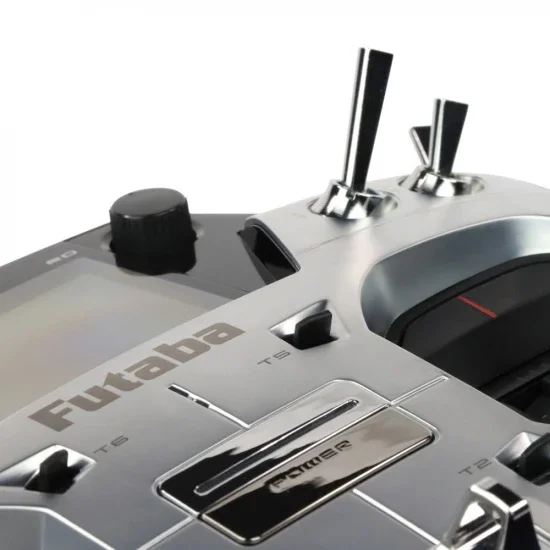

Futaba T26SZ With 3x R7214SB Receivers

Thoughtfully positioned between the much-loved, mid-range T16IZS and the highly-desirable range-topping T32MZ-WC, Futaba s brand-new, high end T26SZ is the answer to many a prayer. For pilots who fly anything and everything, demand unquestioned reliability and seek a future-proof radio that offers the highest level of programming sophistication, Futaba s T26SZ will be impossible to ignore. With its user-friendly interface, twin screens, silky-smooth hall effect non-contact gimbals, near like-for-like 32MZ feature set, elegant styling and latest FASSTest 26ch protocol, the '26SZ is highly likely to tick every box on your extensive wish list. With instant boot-up, incredible receiver pricing and satellite-free airframe installations, the T26SZ is, we re tempted to say, the perfect choice. Here's just a hint of what to expect:

S.BUS2 SYSTEM
Multiple servos, gyros and telemetry sensors can be easily installed with a minimum of cables.

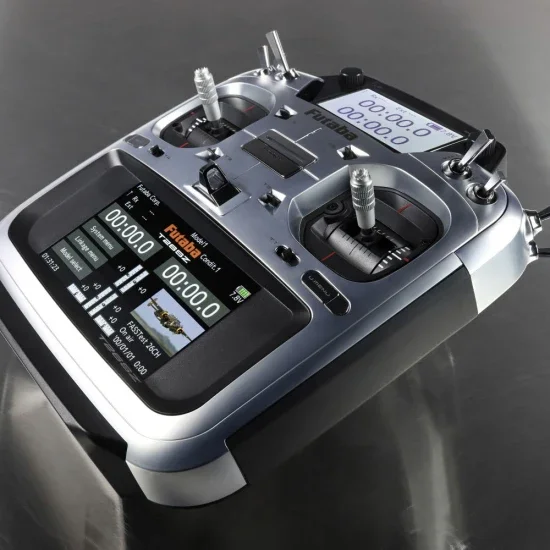

COLOUR LCD MAIN DISPLAY
HVGA 4.3" full colour backlit LCD transflective (indoor / outdoor visible) touch screen.

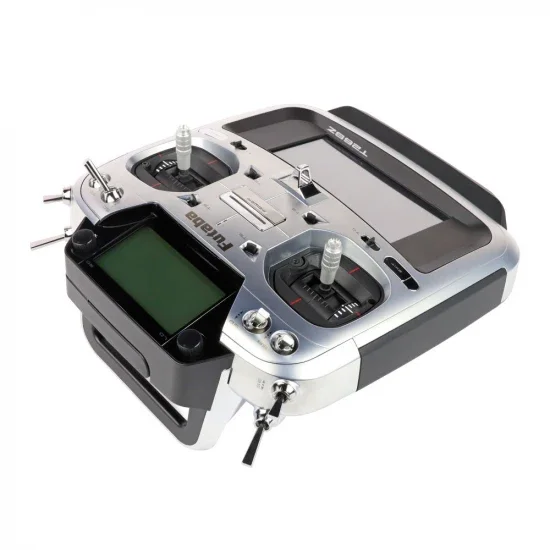

LCD SECONDARY DISPLAY
A high quality reflective LCD for easy recognition of telemetry information.

SD CARD PORT
Update software, store model data and upload picture files using the microSD port.

HIGH CAPACITY LI-ION
2100mAh offers a comfortable operating duration and real peace of mind.

INTUITIVE PROGRAMMING
Model-specific programming and editing has never been easier.

MULTIPROP CHANNEL EXPANSION
Using the MPDX-1 multiprop decoder (sold separately) one channel can be divided into eight channels. Two MPDX-1s can be used.

FEELS GOOD
Magnetic detection non-contact potentiometers offer fine, ultra-precise, long-lasting operation. A throttle stick external adjustment screw allows ratchet or self-neutralising spring adjustment.

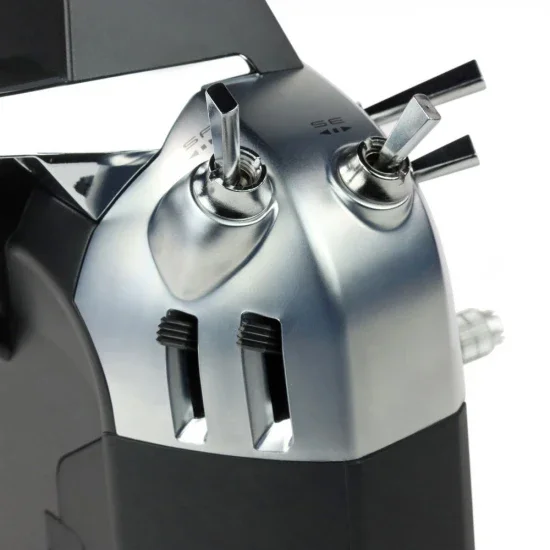

SWITCH REPLACEMENT
Change four of the toggles on the right and left shoulder with your chosen two-position, three-position or momentary switch.

Telemetry functions

• Temperature
• RPM (magnetic & optic)
• Altitude
• GPS
• Voltage
• Receiver battery
• Current
• Data logging

Futaba T26SZ 26-Channel Air Radio with 3x R7214SB Rx, Multi Mode Key Features:

• FASSTest26, FASSTest18, FASSTest12, S-FHSS & T-FHSS protocols.
• 26 channels (24+2).
• Full colour 4.3 inch touch screen.
• 3.0 LCD sub display.
• High quality finish.
• Model image display.
• Smooth non-contact stick potentiometer.
• Shoulder switch upgrade / replacement.
• Four rear sliders (paired).
• Vibration alert.
• Voice.
• Telemetry system.
• Four stick modes (1-4).
• MicroSD card software update.
• High capacity LiPo.
• Earphone jack.
• USB-C charging.
• Calendar clock.
• S.BUS I/F enabled.
• Wireless trainer system.
• 240 step sub trim.
• Sub trim balance.
• DLPH-2 settings.
• Receiver mode-setting port.
• Gyro setting for CGY755 / 760R / 770R / GYA553.
• 8 flight conditions.
• 30 pre-programmed mixers.
• 10 free programmable mixers.
• Retract and door sequencer.
• 13 fixed-wing types.
• 3 fixed-wing tail types.
• 2 fixed-wing rudder types.
• 8 helicopter swash types.
• Supports 14 telemetry sensor types.

What's in the Box:

• 1x T26SZ 26-Channel Transmitter.

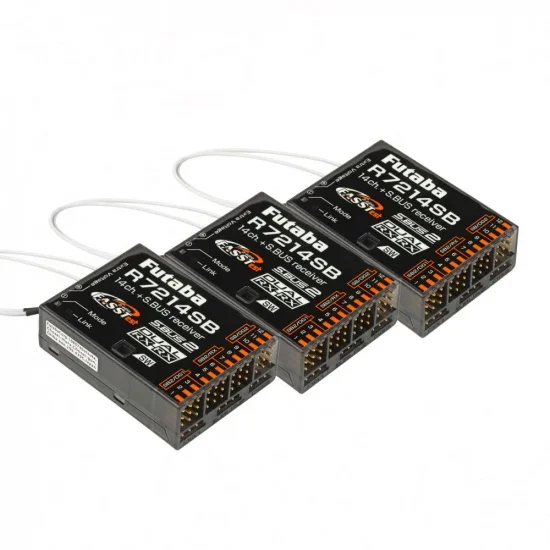

• 3x R7214SB Receiver.
• 1x 7.4V 2000mAh Li-Ion Tx Battery Pack.
• 1x USB-C Charge Lead.
• 1x Neck Strap.
• 1x Tool Set.
• 1x Printed Instruction Manual (Short).

Manuals & Parts Explosions:

Futaba T26SZ 26-Channel Air Radio with 3x R7214SB Rx, Multi Mode Tech Specs:

• Weight with Battery: 920g / 32.45oz
• Shipping Weight: 1.70kg / 3.74lbs
• Product Height: 205mm / 8.07in
• Product Width: 64mm / 2.52in
• Product Length: 190mm / 7.48in

• Age Recommendation: 14+
• Channels: 26
• Radio Protocol: T-FHSS [Air], S-FHSS [Air], FASSTest
• Model Memory: 30
• Colour: Array

• Battery: Yes
• Battery: 2000mAh Li-Ion

• Brand: Futaba
• Part No: FUT05003241-3
• Barcode: 4513886041402
• Frequency: 2.4Ghz
• Receivers Included: 3
• Channels: 9+ Channel
• Format: Stick
