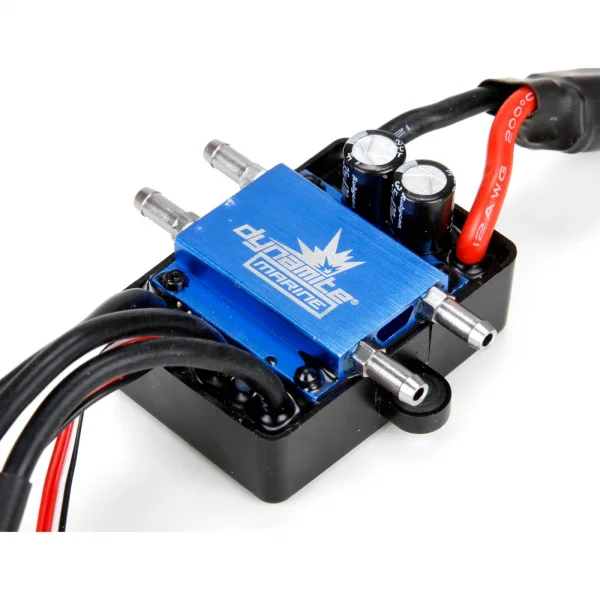

Dynamite 120A BL Marine ESC 2–6S IC5

The Dynamite 120A BL Marine ESC (DYNM3876) delivers reliable brushless power control for marine models. Supporting 2–6S LiPo or 6–18 cell NiMH setups, it features a single IC5 connector and 5.5mm bullet motor outputs. A robust switching BEC and multiple protection functions provide smooth throttle response and dependable performance on the water.

Key Specifications

• Connector type: IC5
• Output connector: 5.5mm bullet
• Input voltage: 2–6S LiPo, 6–18 cells NiMH
• ESC rating: 120A
• Maximum burst current: 720A
• BEC: Yes (switching)
• BEC voltage: 6V
• BEC continuous current: 5A
• BEC maximum burst current: 10A
• Battery input lead: 12 AWG
• Auto cutoff: Yes
• Low-voltage cutoff programmable: Yes
• Overload protection: Yes
• Brakes: Yes
• Time delay brake: Yes
• Forward: Yes
• Reverse: Yes
• Resistance: 0.0005 ohms
• Part type: Electronics

Suggested Compatibility

Brushless marine power systems in RC boats requiring an ESC rated for 2–6S LiPo or 6–18 cell NiMH, with an IC5 connector and 5.5mm motor bullets.
