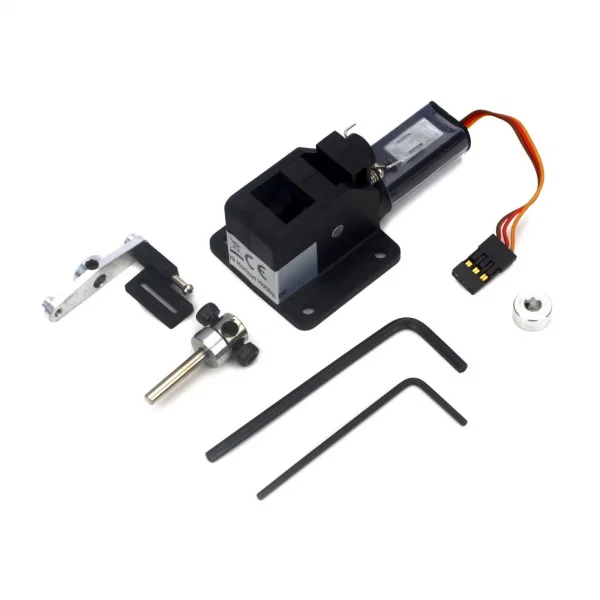

E-flite 15–25 Size 90° Nose Electric Retract (EFLG21190)
Brand: E Flite
Part No: EFLG21190
Supplier Stock: Expected August 8th
Request Stock NotificationFinance options available at checkout.
Description
The E-flite EFLG21190 15–25 Size 90° Nose Electric Retract Unit delivers dependable electric actuation for sport and scale RC aircraft. Featuring metal gears, a JR/universal connector and a broad 4.8–7.4V operating range, it provides smooth cycling and straightforward installation for nose landing gear setups.
Cycle speed varies with input voltage, allowing performance to be matched to your power system. Low idle current and modest stall draw support efficient operation with common receiver packs or BECs.
Key Specifications
- Application: Aircraft 15–25 size
- Speed: 1.25 sec @ 4.8V; 1.00 sec @ 6.0V; 0.75 sec @ 7.4V
- Weight: Main gear: 1.4 oz (39.5g) each
- Motor Type: Electric brushed can
- Connector Type: JR, universal
- Gear Type: Metal
- Current Draw Idle: 5mA
- Current Draw Stall: 200mA
- Voltage: 4.8V–7.4V
Secured by Stripe
15 - 25 Size 90 Degree Nose Electric Retract Unit Manuals & Guides
Manuals & Guides
How-To Guides & Articles
Specifications
- Application:: Aircraft 15-25 size
- Speed:: 1.25 sec @ 4.8V; 1.00 sec @ 6.0V; 0.75 sec @ 7.4V
- Weight:: Main gear: 1.4 oz (39.5g) each
- Motor Type:: Electric brushed can
- Connector Type:: JR, universal
- Gear Type:: Metal
- Current Draw Idle:: 5mA
- Current Draw Stall:: 200mA
- Voltage:: 4.8V-7.4V
Key Info:
- Brand: E Flite
- Part No: EFLG21190
- Barcode: 605482778623
