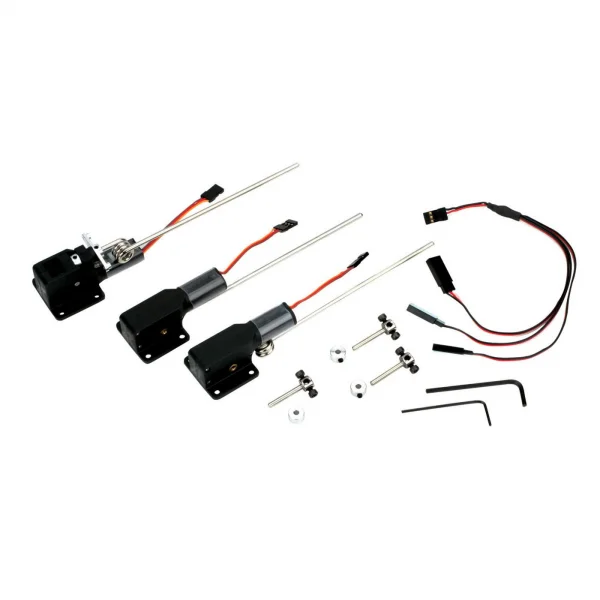

15 - 25 Size Tricycle Electric Retracts

The E-flite 15–25 Size Tricycle Electric Retracts (EFLG230) add the realism of functioning landing gear to suitable 15–25-size RC aeroplanes. These self-contained electric units bolt straight in and plug directly into your receiver—no air tanks, complex linkages or extra servos required. A specially designed Y-harness is included, allowing all retract units to be controlled from a single receiver channel.

Engineered for dependable operation, the system combines robust struts and mounting brackets with an integrated electric motor and micro PCB control. Built-in overcurrent protection adds peace of mind during operation, while the universal connector ensures straightforward integration with common radio gear.

Suggested compatibility includes 15–25-size airframes within the specified 1.80–3.10 kg (4.00–7.00 lb) aircraft weight range.

Key Features

• Robust landing gear strut and mounting bracket
• Integrated electric motor with a micro PCB
• Built-in overcurrent protection
• Includes Y-harness for single-channel operation of all retract units

Specifications

• Part Type: Retract Parts
• Connector Type: Universal
• Voltage: 4.8V–7.4V
• Current Draw (Idle): 5 mA
• Current Draw (Stall): 200 mA
• Motor Type: Brushed
• Strut Diameter: 0.137 in (3.5 mm)
• Aircraft Weight: 4.00–7.00 lb (1.80–3.10 kg)
