25 - 46 100degree Rotating Electric Retracts

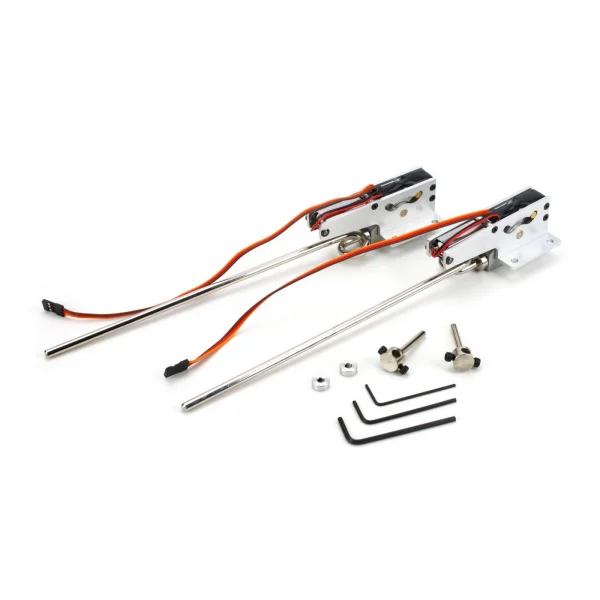

The E Flite EFLG320 25–46 100° Rotating Electric Retracts are precision, all‑aluminium units with an integrated electric motor and micro PCB, eliminating the need for a separate retract servo. Engineered for smooth, reliable operation and a scale appearance, they provide a 100‑degree retraction sweep with 90‑degree leg rotation.

Key Features

• All‑aluminium CNC‑machined retract unit
• Integrated electric motor with micro PCB (no retract servo required)
• Brass wheel collars and fully bushed brass pivot points for smooth, trouble‑free operation
• Built‑in over‑current protection
• Scale‑appearance 100‑degree retraction sweep and 90‑degree rotation
• Chrome‑plated landing gear strut

Specifications

• Operating voltage range: 4.8–7.4V
• Sequence time: 2.75 s @ 4.8V; 2.50 s @ 6.0V; 2.25 s @ 7.4V
• Current draw: Idle 5 mA; Operating up to 900 mA
• Pulse width trigger points: Down 1.331 ms; Up 1.690 ms
• Operation with FM and DSM: FM 22 ms frame rate, 5V signal; DSM 20 ms frame rate, 3.3V signal
• Aircraft weight range: 5.00–9.50 lb (2.25–4.30 kg)
• Unit weight: Nose gear 3.5 oz (99.5 g); Main gear 2.8 oz (79.5 g) each
• Strut diameter: 4 mm

Suggested Compatibility

• Hangar 9 F4U‑1D Corsair 50 ARF (.46–.55) (HAN2590)
