RC4WD Gelande II RTR Truck Kit with Cruiser Body Set (BFGoodrich 150th Anniversary Edition)

RC4WD Gelande II RTR Truck Kit with Cruiser Body Set (BFGoodrich 150th Anniversary Edition)

Brand: RC4WD

Part Number: Z-RTR0102


SORRY, THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.


Why not contact our team to see if an alternative is available?






RC4WD Gelande II RTR Truck Kit w/Cruiser Body Set (BFGoodrich 150th Anniversary Edition)

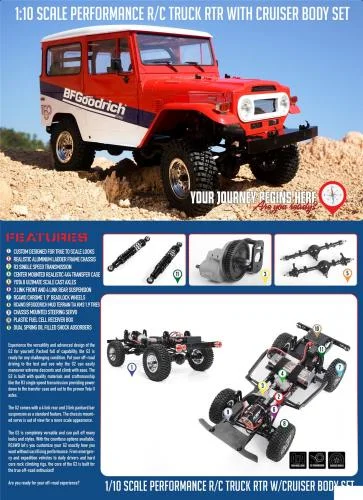

  Experience the versatility and advanced design of the G2 for yourself. Packed full of capability, the G2 is ready for any challenging condition. Put your off-road driving to the test and see why the G2 can easily maneuver extreme descents and climb with ease.   The G2 is built with quality materials and craftsmanship like the R3 single speed transmission providing power down to the transfer case and out to the proven Yota II axles.
  The G2 comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance.   The G2 is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let's you customize your G2 exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast!   Are you ready for your off-road experience?   Custom Designed for True to Scale Looks Realistic Aluminum Ladder Frame Chassis R3 Single Speed Transmission Center Mounted Realistic 4X4 Transfer Case Yota II Ultimate Scale Cast Axles 3 Link Front and 4 Link Rear Suspension RC4WD Chrome 1.9" Beadlock Wheels RC4WD BFGoodrich Mud Terrain T/A KM3 1.9 Tires Chassis Mounted Steering Servo Plastic Fuel Cell Receiver Box Dual Spring Oil Filled Shock Absorbers



Hammer Transfer Case Ratio: 1.47:1 Gears: Wide .8 Mod Hardened Steel Gears, 8 Bearings, Cast Casing   R3 Single Speed Transmission Ratios: Pinion/Spur 14/64 = 4.57:1 Internal Ratios: 1.78:1 Gears - Wide Steel .8 Mod, Delrin Spur, Slipper Clutch   Yota II Ultimate Scale Cast Axles Ratio: 15/40 = 2.67:1 Width at Hex (Using 4mm TF2 Hexes): 178.2mm   G2 Suspension 3 Link Suspension with Panhard Bar Double Triangulated 4 Link Rear Suspension   Shock Absorbers Dual Spring 80mm Shocks - Can be Oil Filled   Wheels

Type: RC4WD Chrome 1.9" Beadlock Wheels

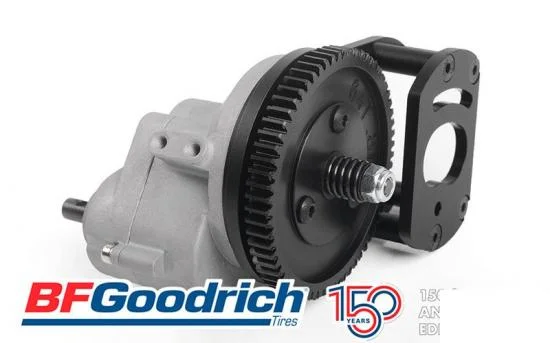

Hub: 12mm Hex Width: 26mm (1.02") OD: 54mm (2.14")   Bumpers Machined Billet Aluminum, Lightweight   G2 Truck Dimensions Wheelbase: 10.8in / 275mm  Length: 18.3in / 465mm Width: 8.2in / 210mm Height: 10.7in / 274mm Ground Clearance: 2.4in / 61mm Final Drive Ratio: 31.9:1 Weight: 8.35Lbs / 3.79Kg   DRIVETRAIN   The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.   The G2 includes the Hammer Transfer Case. Packed with scale detail, the Hammer features a cast metal exterior and heavy duty .8 Mod Widened Gears for durability.   Drawing on the success of the RC4WD MOA Gear Sets, the G2 Drivetrain has the most durable gears RC4WD has to offer so the G2 will stay on the trail, day after day.   The most scale accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.



The punisher shafts for the G2 feature bulletproof steel universals and a high quality plastic shaft for great driveline angles and durability on the trail.

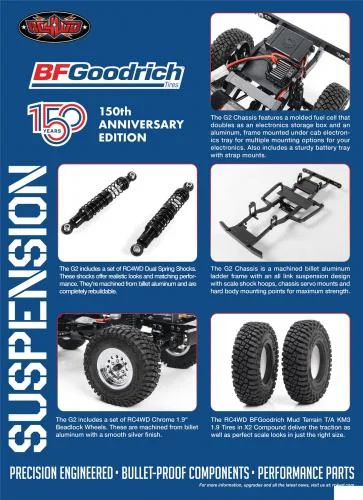

SUSPENSION   The G2 Chassis features a molded fuel cell that doubles as an electronics storage box and an aluminum, frame mounted under cab electronics tray for multiple mounting options for your electronics. Also includes a sturdy battery tray with strap mounts.   The G2 includes a set of RC4WD Dual Spring Shocks. These shocks offer realistic looks and matching performance. They're machined from billet aluminum and are completely rebuildable.   The G2 Chassis is a machined billet aluminum ladder frame with an all link suspension design with scale shock hoops, chassis servo mounts and hard body mounting points for maximum strength   The G2 includes a set of RC4WD Chrome 1.9" Beadlock Wheels. These are machined from billet aluminum with a smooth silver finish.   The RC4WD BFGoodrich Mud Terrain T/A KM3 1.9 Tires in X2 Compound deliver the traction as well as perfect scale looks in just the right size.

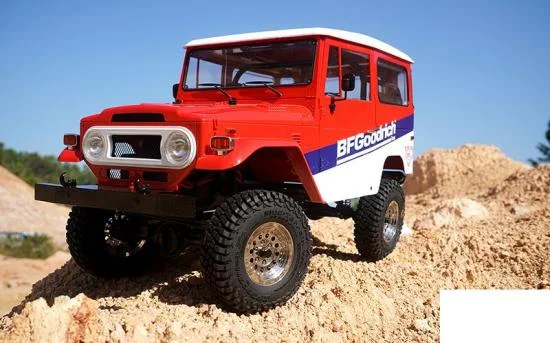

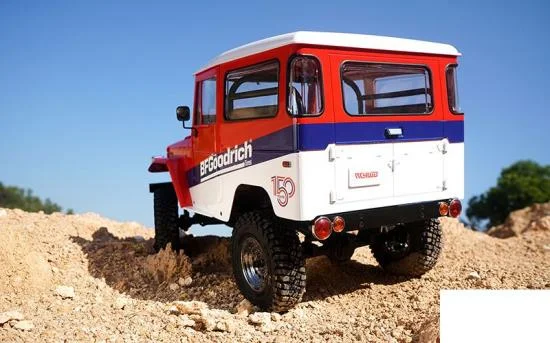

DETAILS   The G2 features the Cruiser Scale Body Set. The Cruiser Body has an awesome assortment of scale details including mirrors, door handles, vents and a grill to match the 1:1 real vehicle.   The Cruiser Body Set feature the unmistakable lines of a classic. It is an exact replica of the full scale vehicle, right down to the removable top! No other scale body comes this close to realism.

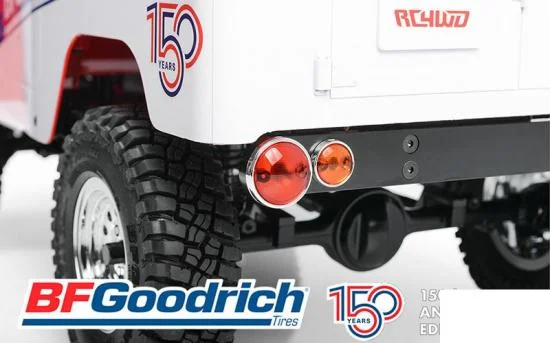

The limited edition red and white paint scheme commemorates BFGoodrich's 150th year anniversary along with custom factory-applied decals

  Comprised of over 70 parts, the Cruiser Body Set features a full detailed interior, seats, gear shifter, handbrake and a detailed dashboard. It's all here to bring your build to next level.

The unmistakable front grille has been painted in a classic white and features a metal grille insert. All lights and marker lamps can be illuminated with an optional RC4WD LED light kit.





ELECTRONICS   The G2 includes a high quality XR3 3 Channel 2.4Ghz Radio System. Use the third channel to control the winch and add even more fun to your scale adventure!   The G2 is powered by the nearly indestructible RC4WD 45 Turn Crawler Motor. With its sealed endbell for increased durability and long lasting performance, you're sure to get where you're going!   The G2 features the popular RC4WD Outcry Brushed Speed Controller with built-in drag brake and a separate 6V 5amp Turbo BEC for reliable, constant power on demand. Anytime.   A great truck needs a great servo to get you out of those tough spots and the G2 features the Twister. A high torque metal gear digital servo to handle all your steering duties.   Featuring a massive [email protected] of torque and a full metal geared drivetrain, the RC4WD Twister Metal Gear Digital Servo has the power and per-formance you need when the turning gets tough.

What's Included:

  • 1x RC4WD Gelande II RTR Truck Kit w/Cruiser Body Set (BFGoodrich 150th Anniversary Edition)



Replacements Parts:

  • Gelande 2 Front 3 Link & Panhard Mount (Black) (Z-S0794)
  • Gelande 2 Rear 4 Link Mount (Z-S0795)
  • Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
  • Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
  • 59mm (2.32") Aluminum Link for Gelande 2 (Z-S0807)
  • 65.3mm (2.57") Aluminum Link for Gelande 2 (Z-S0817)
  • 70mm (2.75") Aluminum Link for Gelande 2 (Z-S0819)
  • Drag Link for Yota II (104.5mm / 4.11in) (Z-S0810)
  • 73mm (2.87") Aluminum Link for Gelande 2 (Z-S0805)
  • M3 Medium Straight Plastic Rod End (20x) (Z-S0399)
  • M3 Short Bent Plastic Rod End (20x) (Z-S0402)
  • M3 Mini Plastic Rod End (20x) (Z-S0398)
  • M3 Offset Short Plastic Rod End (20x) (Z-S0401)
  • R3 Single Speed Transmission Mounts (Z-S0802)
  • R3 Scale Single Speed Transmission (Z-U0028)
  • 14t 32p Hardened Steel Pinion Gear (Z-S0430)
  • Gelande 2 Chassis Set (Z-C0040)
  • Battery Plate for Gelande 2 (Z-S0792)
  • Servo Mounts for Gelande 2 Chassis (Z-S0791)
  • Fuel Cell Radio Box (Z-S0592)
  • Hammer Transfer Case (1.47/1) (Z-U0024)
  • Transfer Case and Lower 4 Link Mount for Gelande 2 Chassis (Z-U0027)
  • Metal Drive Coupling for Gelande 2 (Z-S0803)
  • Front Shock Hoops for Gelande 2 Chassis (Z-S0798)
  • Rear Shock Hoops for Gelande 2 Chassis (Z-S0799)
  • Dual Spring 80mm Scale Black Shocks (Ver 2) (Z-D0039)
  • RC4WD ION Style 71 1.9" Beadlock Wheels (Z-W0303)
  • RC4WD BFGoodrich Mud Terrain T/A KM3 1.9 Tires (Z-T0192)
  • Heavy Duty Nylon Strap Lock (5) (Z-S0552)
  • 1mm Black Spacer with M3 Hole (10) (Z-S0809)
  • 2mm Black Spacer with M3 Hole (10) (Z-S0600)
  • 3mm Black Spacer with M3 Hole (10) (Z-S0806)
  • 5mm Black Spacer with M3 Hole (10) (Z-S0821)
  • RC4WD Cruiser Main Interior (Z-B0063)
  • RC4WD Cruiser Dashboard Parts Tree (Z-B0067)
  • RC4WD Cruiser Seat Parts Tree (Z-B0069)
  • RC4WD Cruiser Accessories Parts Tree (Z-B0071)
  • RC4WD Cruiser Accessories 2 Parts Tree (Z-B0073)
  • RC4WD Cruiser Chrome Accessories Parts Tree (Z-B0075)
  • RC4WD Cruiser Clear Parts Tree (Z-B0077)
  • RC4WD Cruiser Main Window (Z-B0079)
  • RC4WD Cruiser Front Grille Insert (Z-B0081)
  • RC4WD Cruiser Front LED Holder (Z-B0083)
  • RC4WD Complete Cruiser Body Set For Gelande II (Z-B0109)
  • RC4WD Cruiser Main Body (Z-B0061)
  • RC4WD Cruiser Roof (Z-B0065)
  • Cruiser Body Conversion Kit for D90 (Z-S1706)
  • RC4WD 12mm Axle Wheel Hexes (2 way) (Z-S0238)
  • 540 Crawler Brushed Motor 45T (Z-E0004)
  • Outcry III Waterproof ESC (Z-E0113)
  • Twister High Torque Metal Gear Digital Servo (Z-E0035)
  • XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)


Optional Parts:

  • Ultra Scale Hardened Steel Driveshaft "Ver 2" (80mm - 110mm / 3.15" - 4.33") (VVV-S0120)
  • Rebuildable Super Punisher Shaft (100mm - 118mm / 3.94" - 4.65") 5mm Hole (Z-S1261)
  • RC4WD Fender Flare for Rear Cruiser Body (Z-S1539)
  • RC4WD Snorkel for Cruiser Body (Z-S1554)
  • Tube Roll Bar for RC4WD Gelande II Cruiser (VVV-C0216)
  • Tube Roll Bar with Fabric Shade for RC4WD Gelande II Cruiser (VVV-C0221)
  • RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (120mm/4.72") (Z-E0095)
  • Driver (Z-S0190)
  • Winch (Winch Options)
  • XVD For Yota II Front Axle (Z-S0823)
  • Scale Aisin/Yota Style Hubs (Z-S0196)
  • Trition Transfer Case (1:1 ratio) (Z-U0029)
  • Survivor Rear Bumper for Gelande (Z-S0698)
  • Yota II Scale Diff Cover (Z-S0907)
  • Shock Hoops for Trail Finder 2 Chassis (Z-S0597)
  • Gelande II Steering Guard (Z-S0824)
  • Scale Steel Punisher Shaft V3 (90.5mm - 110.5mm / 3.56" - 4.35") 5mm Hole (Z-S0826)
  • Ultra Scale Hardened Steel Driveshaft (46mm - 50mm / 1.81" - 1.96") 5mm (VVV-S0006)
  • K44 Ultimate Scale Rear Axle (Z-A0049)
  • Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
  • Heavy Duty Metal Servo Arm 24t Hitec (Z-S0820)
  • Mud Flaps for Gelande 2 (Z-S0890)
  • Challenger 1.9 Scale Tires (Z-T0108)
  • 1.9" 5 Lug Steel Wheel Hex Hub (Z-S0734)
  • 1.9" 5 Lug Steel Wheel Hex Hub with Brake Rotor (Z-S0532)
  • Predator Track Front Axle Fitting Kit for Yota II (Z-S0918)
  • Tow Bar Mount for TF2 / G2 (Z-S1125)
  • RC4WD 1/10 Warn 9.5cti Winch CNC Mounting Plates (Z-S1168)
  • RC4WD 1/10 Warn 9.5cti Winch (Z-S1079)
  • R3 Scale Single Speed Transmission (Z-U0028)
  • R3 Single Speed Transmission Mounts (Z-S0802)
  • Land Rover Mud Flaps for Gelande II D90/D110 (Z-S1888)
  • RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (75mm/3") (Z-E0055)
  • Gelande 2 Mounting kit for Jack Stand (Z-S1324)
  • RC4WD 1/10 Super Charged Emblem Set (Z-S1138)
  • RC4WD 1/10 Turbo Diesel Emblem Set (Z-S1132)
  • LED Basic Lighting System For Cruiser Body Set (Z-E0071)
  • Rear Fender Flares for RC4WD Cruiser Body (VVV-C0136)
  • Metal Side Diamond (B) Plates for RC4WD Cruiser Body (Silver) (VVV-C0135)
  • Metal Side Diamond (A) Plates for RC4WD Cruiser Body (Silver) (VVV-C0134)
  • Side Metal Emblems for RC4WD Cruiser Body (Side B) (VVV-C0133)
  • Snorkel for RC4WD Cruiser Body (VVV-C0131)
  • Metal Side Diamond (B) Plates for RC4WD Cruiser Body (Black) (VVV-C0130)
  • RC4WD Tough Armor Metal Tube Cage for G2 Cruiser (Z-X0021)
  • Tough Armor Tube Roll Bar for G2 Cruiser (Z-X0023)
  • Hitch Mount with Bumper for RC4WD G2 Cruiser (Z-S1626)
  • Metal Tire Holder RC4WD G2 Cruiser/FJ40 (VVV-C0173)
  • Rear Bumper Assembly w/Pad for RC4WD G2 Cruiser/FJ40 (VVV-C0171)
  • Rear Bumper Step for RC4WD G2 Cruiser/FJ40 (VVV-C0178)
  • Rear Bumper for RC4WD G2 Cruiser/FJ40 (VVV-C0170)
  • Rear Bumper Assembly w/Pad and Step for RC4WD G2 Cruiser/FJ40 (VVV-C0172)
  • Rear Bumper Pads for RC4WD G2 Cruiser/FJ40 (VVV-C0167)
  • 1.9 Landies Internal Beadlock Wheels (Z-W0075)
  • RC4WD Tough Armor Side Slider for G2 Cruiser (Z-S1543)
  • Scale Steel Punisher Shaft (77mm - 100mm / 3.03" - 3.94") (Z-S1054)
  • RC4WD Tough Armor Swing Away Tire Carrier w/Fuel holder for the G2 Cruiser (Z-X0025)
  • RC4WD Tough Armor Tube Sliders for G2 Cruiser (Z-S1625)
  • Cruiser Body Emblem Set (Z-S1714)
  • RC4WD Teraflex Diff Cover for Yota II Axle (Z-S1681)
  • M3 Offset Short Aluminum Rod Ends (Red) (10) (Z-S1631)
  • M3 Offset Short Aluminum Rod Ends (Blue) (10) (Z-S1633)
  • Front Winch Bumper for G2 Cruiser (VVV-C0251)
  • RC4WD Tough Armor Side Sliders for G2 Cruiser (Z-S1726)
  • Rhino Front B
  • Brand: RC4WD
  • Part No: Z-RTR0102
  • Barcode: 812115029995
  • Scale: 1:10
  • Build Level: Assembled (RTR)
  • Power Source: Electric - Brushed
  • Surface Type: Off Road
  • Vehicle Type: Rock Crawler
