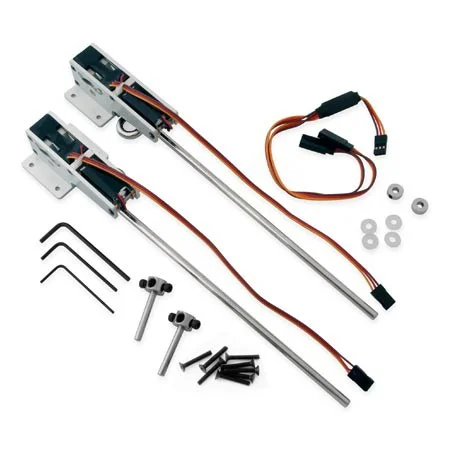

E-flite 60–120 85° Main Electric Retract

The E-flite 60–120 85 Degree Strut Ready Main Electric Retract (EFLG510) provides smooth, fast retraction for larger sport and scale models. With a wide 4.8–7.4V operating range, universal connector, and 5 mm strut interface, it is straightforward to integrate into your setup. Each unit is suitable for models in the 8.0–15.0 lb (3.60–5.80 kg) weight class.

Designed for aircraft or helicopter applications, the retract features low idle current draw and rapid cycle times to complement modern receiver power systems. Weight per unit is 130 g.

Specifications

• Aircraft Weight Class: 8.0–15.0 lbs (3.60–5.80 kg)
• Application: Aircraft/Helicopter
• Connector Type: Universal
• Current Draw, Idle: 5 mA
• Current Draw, Stall: 900 mA
• Speed: 1.25 sec @ 4.8V; 1.0 sec @ 6.0V; 0.8 sec @ 7.4V
• Strut Diameter: 5 mm
• Voltage Range: 4.8–7.4V
• Weight: 4.6 oz (130 g) each
