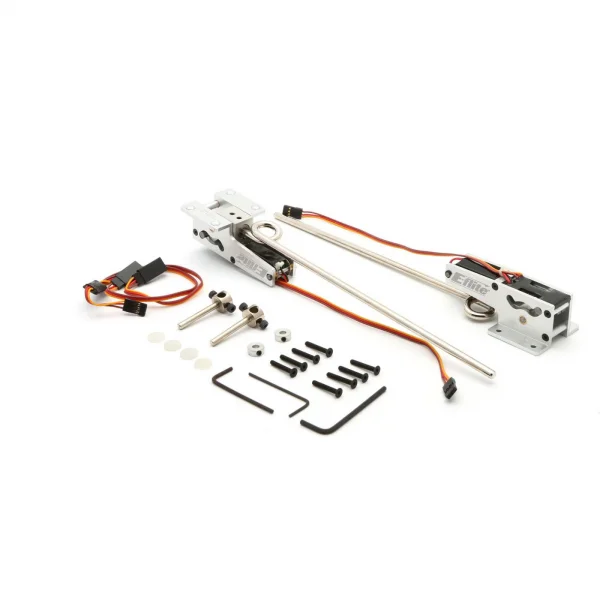

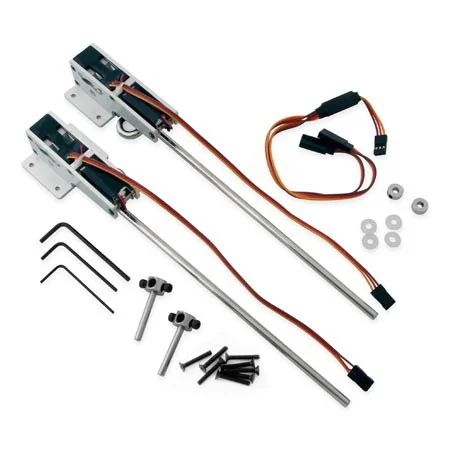

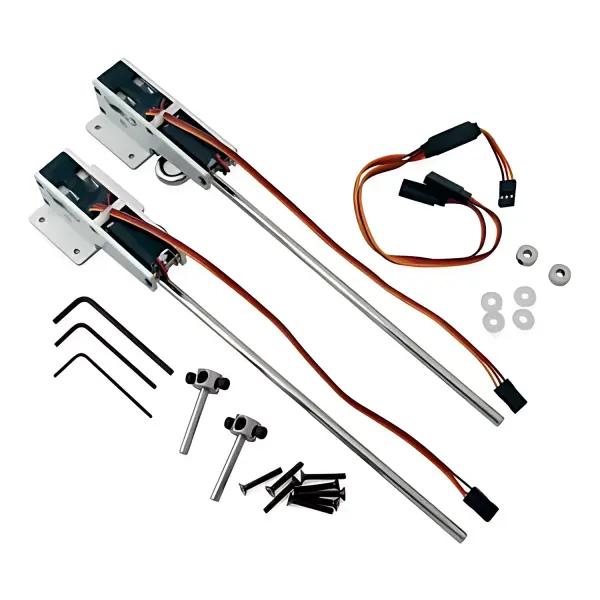

E-flite 60–120 90° Strut-Ready Main Electric Retract EFLG500

The E-flite 60–120 90 Degree Strut Ready Main Electric Retract (part number EFLG500) delivers smooth, reliable operation for 60–120 class models. Designed for aircraft and helicopter applications, this strut-ready unit accepts 5 mm struts and uses a universal connector for straightforward installation. It operates across a wide 4.8–7.4 V range with quick cycle times and low idle current.

Key Specifications

• Aircraft weight class: 8.0–15.0 lb (3.60–5.80 kg)
• Application: Aircraft/Helicopter
• Connector type: Universal
• Voltage range: 4.8–7.4 V
• Cycle speed: 1.25 s @ 4.8 V, 1.0 s @ 6.0 V, 0.8 s @ 7.4 V
• Current draw (idle): 5 mA
• Current draw (stall): 900 mA
• Strut diameter: 5 mm
• Weight: 4.6 oz (130 g) each

With its 90° retraction angle and efficient power draw, the E-flite EFLG500 is a practical choice for builders seeking dependable electric landing gear performance in the 60–120 size class.
