Spektrum A345 9g Sub-Micro Servo 230mm Lead

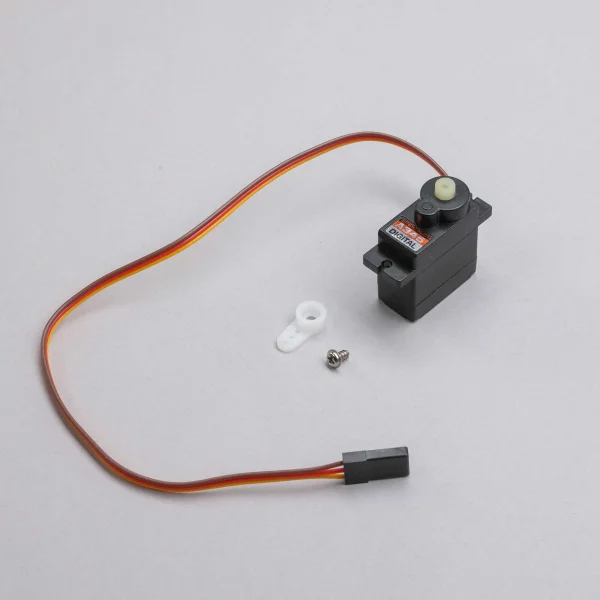

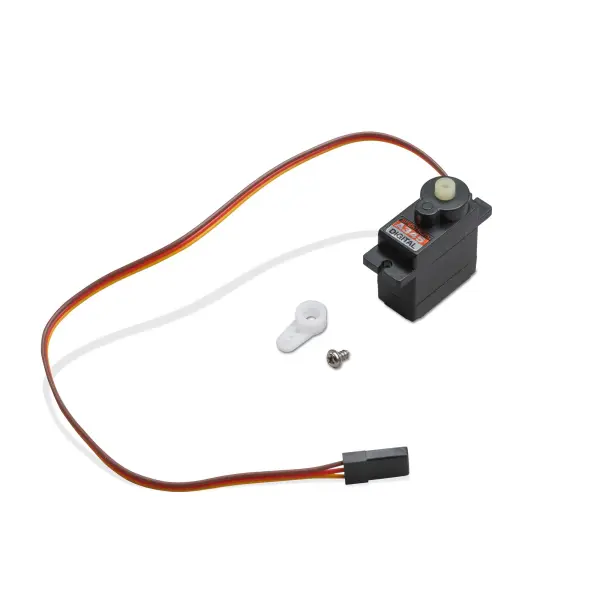

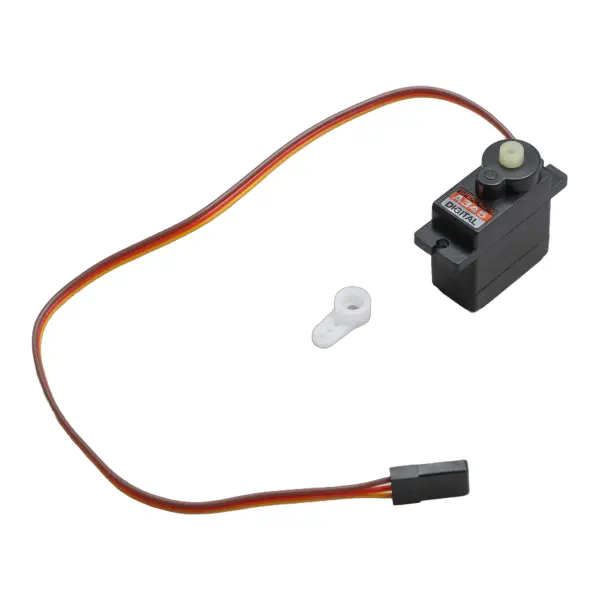

The Spektrum A345 9g Sub-Micro Servo (SPMSA345) is a compact digital servo with a 230mm connector lead, designed for aircraft applications. Operating on 4.8–6.0V and weighing just 9g, it offers a practical balance of speed and torque in a lightweight package.

Key Specifications

• Servo Size Category: Sub-Micro
• Servo Type: Digital
• Operating Voltage: 4.8–6.0V
• Connector Wire Length: 9.05" (230 mm)
• Torque: 20.8 oz/in (1.5 kgf·cm)
• Maximum Servo Speed: 0.12 sec/60°
• Gear Type: Plastic
• Spline Count: 40-tooth
• Connector Type: Servo
• Application: Aircraft
• Product Weight: 9 g
• Part Type: Electronics

This Spektrum A345 sub-micro servo is well-suited to lightweight RC aircraft builds where space and mass are at a premium, while still providing responsive control and dependable performance.
