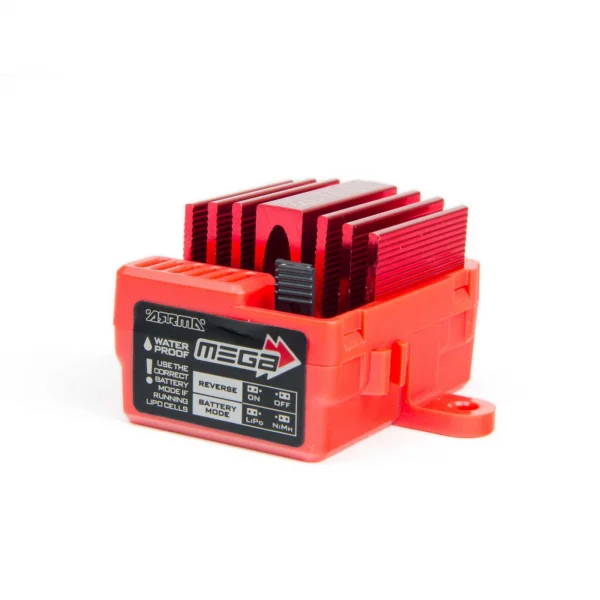

ARRMA MEGA Brushed 2S ESC

The ARRMA MEGA Brushed 2S ESC (ARA390288) delivers consistent, safe power control with an integrated LiPo protector. Featuring a reliable IC3 connector and robust construction, it supports 2S LiPo or 6–7 cell NiMH packs and includes safeguards to manage voltage under heavy running. Suggested compatibility: ARRMA vehicles using MEGA brushed systems.

Features

• Integrated LiPo protector for added pack safety
• Fitted with reliable IC3 connector
• Capable of running 2S LiPo or 6 or 7 cell NiMH
• Over-voltage protection for safe voltage management under heavy load
• Integrated red anodised heatsink for increased heat dissipation
• Durable motor and battery connection cables for reliable power transfer
• Waterproof power switch
• Strong red nylon case with dedicated chassis mount tabs for a secure fit
• Etched ARRMA livery

Specifications

• Battery usage: 7.2V (6 cell) NiMH stick pack, 8.4V (7 cell) NiMH stick pack, 7.4V (2S) LiPo
• Low Voltage Cut-Off (LVC): 3.2V per cell
• Thermal protection temperature: 95°C / 203°F
• BEC voltage: 5V
• BEC current: 2A
• ESC length: 47mm / 1.85 in
• ESC height: 21mm / 0.83 in
• ESC width: 34mm / 1.34 in
• ESC weight: 70g / 2.47 oz
• Receiver wire length: 160mm / 6.3 in
• Battery wire length: 90mm / 3.54 in

What’s Included

• 1 x ARRMA MEGA Brushed ESC
