Arrma Typhon 4x4 Mega Brushed

Introduction

Making your move into 1/8 scale buggy bashing has never been easier. The TYPHON™ 4X4 MEGA 550 Speed Buggy brings exciting TYPHON™ buggy style to a 2S LiPo-capable brushed version that's ready for action in all terrain. Its 12T 550 brushed motor supplies rippling muscle for rock-jumping speeds. The waterproof* electronics are ready for any weather. dBoots® 2-HO tires on tough, multi-spoke wheels find traction on any surface. The Spektrum™ STX2® radio with SRX200 receiver offers many of the same features found in high-end 2.4GHz systems — throttle and servo reversing, throttle and steering travel adjust, throttle limiting and more — for the ultimate control. Precision aluminum, tough steel and composite materials come together for an easy-to-maintain, super-durable vehicle design whose high downforce wing and low center of gravity, with wide arms and narrow wheels and tires, improve handling over race tracks, trails, muddy courses, skate parks, and more. Just add four AA batteries.

*Note: For details on waterproof standards, refer to the instruction manual. Features

• Spektrum™ STX2® 2.4GHz radio
• 2-Channel SRX200 waterproof receiver
• Built-in 3-position throttle limiter
• Extended range and interference-free performance
• Throttle/steering reversing
• Throttle/steering travel adjust
• Throttle limiting
• ADS-5 waterproof 5kg-cm servo (70 oz-inch @ 6V)
• MEGA 12T Brushed 550 motor
• MEGA waterproof ESC
• IC3™ connectors (EC3™ compatible)
• Easy-access power module
• Easy-access electronics module
• Easy-access diff module removal front and rear
• Oil-filled shocks

• Smooth bearings
• Tough metal gears
• Tough multi-spoke black wheels and multi-terrain dBoots® 2-HO tires
• Painted, decaled and trimmed body
• Adjustable body mounts
• Adjustable ride height
• High-downforce wing
• 2400mAh 8.4V 7-cell NiMH battery
• ADC-N7 7-cell NiMH wall charger
• 30 mph (48km/h) speed achievable in optimum driving conditions with optional gearing
• Waterproof*
• 2-year limited warranty

*Note: For details on waterproof standards, refer to the instruction manual.

Overview

Powered by the MEGA 550 brushed motor system, the ARRMA® 1/8 TYPHON™ 4X4 MEGA 550 RTR Speed Buggy is DESIGNED FAST, DESIGNED TOUGH — built for exciting bashing speeds and extreme, all-terrain durability.

Its full-time 4WD transmission with front and rear differentials uses strong front, rear, and centerline telescoping driveshafts that can't be lost during heavy impacts, unlike dogbones. A simple, dependable, responsive steering assembly complements the ultra-reliable drive system and features a servo horn with built-in servo saver. The easy-to-bleed, oil-filled shocks use a tried and tested, coil-over design for simple maintenance and amazing handling. An innovative rod end design has a molded-in spring perch for extra toughness.

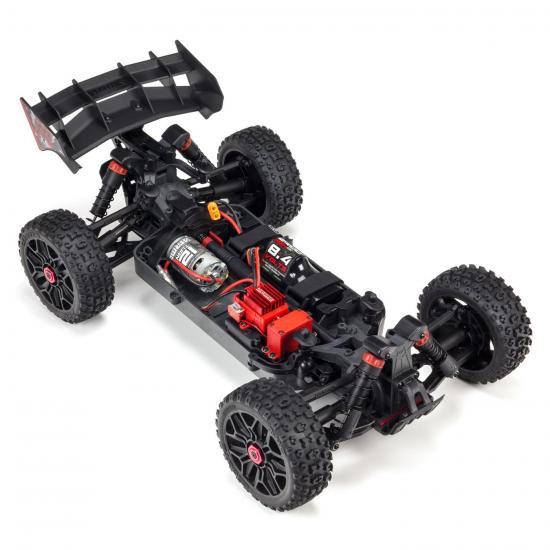

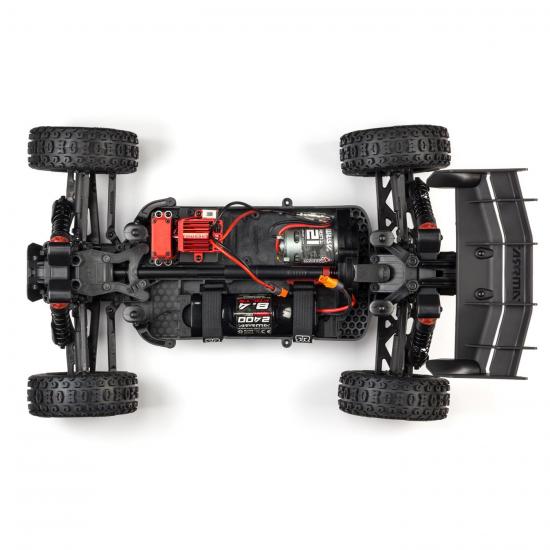

The TYPHON™ 4X4 MEGA 550 RTR Speed Buggy's ingenious modular design makes chassis components easy to access for maintenance. Its power module consists of a MEGA 550 motor, motor plate, slipper clutch assembly and gear cover. The power module can be detached from the chassis as a complete unit by removing just one screw. With the power module removed, the slipper clutch can be reached easily for adjustments by taking out three screws that attach the gear cover. The power module design also ensures that pinion and spur gear mesh is perfect every time, using numbered holes for different pinion gear sizes.

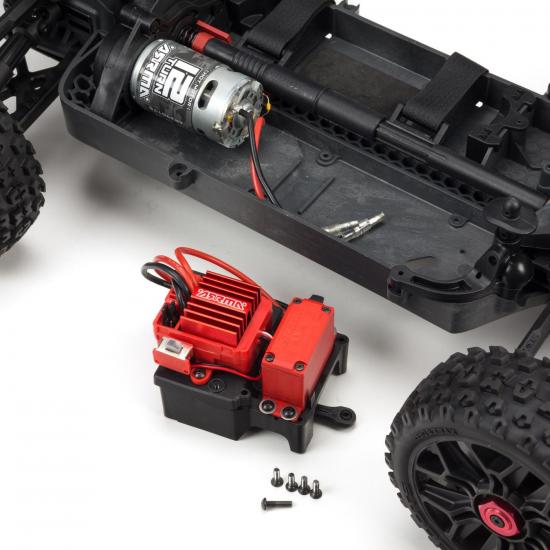

A two-piece molding screwed to the chassis serves as its electronics module, containing a waterproof radio box, servo mount, and ESC tray. The radio receiver mounts inside the radio box for protection from dirt and moisture. The ultra-compact ESC is screwed to the top of the module, allowing quick access to the on/off switch, while the servo mounts to the side. All three components can be removed together, quickly and easily.

The differential module houses each assembled differential unit in an innovative yoke design. Only eight screws need to be removed to release the front and rear yokes. The power module can then be detached, allowing you to pivot the gearbox cases for access to the differentials. Each differential gear case features large pitch gears that are engineered to withstand huge torque. Internal metal gears have been chosen for reliability during extreme bashing.

Finally, tough, multi-spoke black wheels with dBoots® 2-HO tires give the TYPHON™ 4X4 MEGA 550 RTR effective traction for bashing on almost any terrain.

Needed to Complete

• (4) AA Batteries

What's in the Box?

• (1) 1/8 TYPHON™ 4X4 MEGA 550 4WD Speed Buggy with:
• (1) ARRMA MEGA ESC
• (1) MEGA 12T 550 Brushed Motor with IC3™ Connectors (EC3™ compatible)
• (1) Spektrum™ 2.4GHz STX2® Radio and SRX200 Receiver
• (1) ADS-5 Servo
• (1) 2400mAh 8.4V 7-cell NiMH Battery

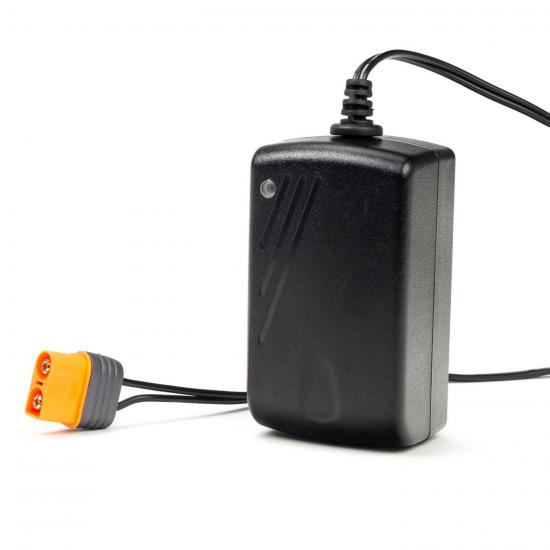

• (1) ADC-N7 7-cell NiMH Wall Charger
• (1) Product Manual

IC3™ CONNECTORS

The TYPHON™ 4X4 MEGA now comes with IC3™ connectors so you can take full advantage of Spektrum Smart Technology. The IC series of connectors are also designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. For those using the popular EC3™ connectors, there's no need to worry. The IC3 connector is entirely backwards compatible.

SPEKTRUM STX2® RADIO SYSTEM

• Complete 2.4GHz radio system including a 2Ch waterproof receiver *
• Built-in 3-position throttle limiter
• Steering & throttle rate & trim adjustments with throttle and steering reversing
• FHSS 2.4GHz protocol** offers extended range and interference free performance
* For details on waterproof standards, please refer to the product instruction manuals

** Not compatible with DSM, DSM2 or DSMR 2.4GHz protocol

REMOVABLE DIFFERENTIAL MODULE

Both the front and rear diff modules are super-easy to access in the TYPHON 4x4 MEGA, ensuring that you spend more time driving and less time in the workshop.

TOUGH, LARGE, LIGHTWEIGHT DIFFS

These differentials are TOUGH. The main differential gears have been super-sized with large pitch gears that have been designed to withstand huge torques, allowing lightweight composite material to be used for reduced rotating mass without compromising strength. The differential internals feature full-metal straight-cut gears, ensuring trouble-free operation.

REMOVABLE POWER MODULE

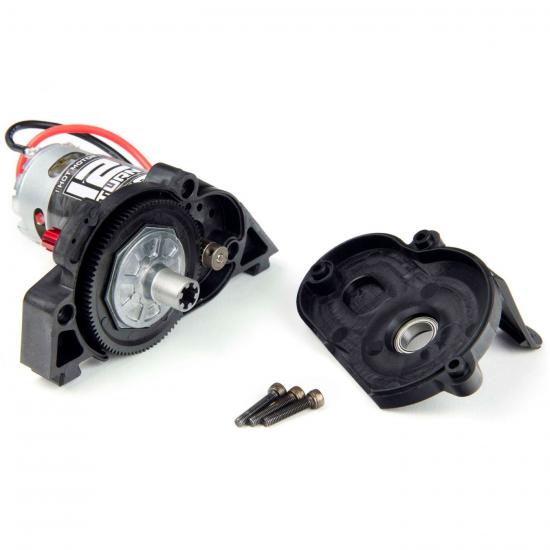

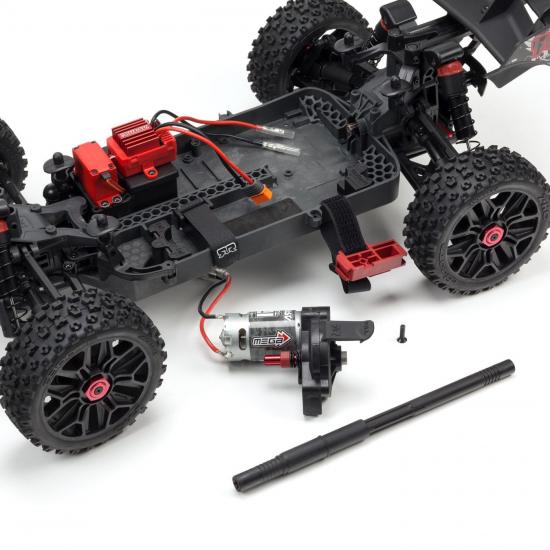

Easy-access Power Module assembly can be removed from the vehicle in seconds, with the removal of just one single screw. The center shaft assembly* is telescopic to assist with the easy disassembly and is sprung loaded to ensure it stays in position in use.

POWER SYSTEM

With the Power Module removed from the vehicle you can easily service your motor, single-pad slipper clutch, spur and pinion gears. The 4x4 MEGA power system features a high-torque 550 sized 12 turn brushed motor.

REMOVABLE ELECTRONICS MODULE

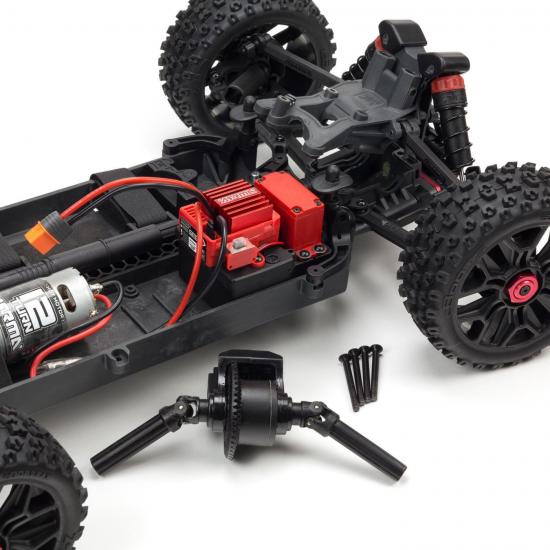

Easy-access Electronics Module assembly can be removed from the vehicle with the removal of only 5 screws. With this module removed you can access the servo, electronic speed control and the receiver. The two-piece moulding comprises of a lower box and upper lid that are sealed with high-quality rubber seals. The ESC and steering servo are attached to this moulding, while the receiver sits inside the waterproof box.

TOUGH SHOCK DESIGN

Soaking up a wide range of surfaces is made easy with the included coil-over-oil shocks. Factory set to handle everything from fast speed runs to snow and mud chucking, no matter where you choose to drive, these high-quality units will keep you stable and in-control. The shock absorbers on the TYPHON 4x4 MEGA feature keyed spring perch and self-bleed* design. These shocks are designed to be simple to maintain, yet offer all the performance required to give amazing handling.

4WD DRIVETRAIN AND SLIDER DRIVESHAFTS

Featuring a full-time four-wheel drive, the TYPHON 4x4 MEGA is ready to blast through your chosen environment. Telescopic driveshafts in the front, rear and centreline transmit drive from the slipper clutch to each wheel.

2-HO BUGGY TIRE DESIGN

High quality dBoots 2-HO Buggy tires coupled with multi-spoke wheels offer superb bite on a multitude of surfaces.

ADS-5 STEERING SERVO

The ADS-5 Steering Servo will provide fast and consistent steering response on the most demanding surfaces. This servo provides 5kg/cm (70oz/inch) of torque. A waterproof servo case will keep your ARRMA vehicle handling correctly, even when the action gets wet. With 5kg (70oz) of torque at 6v, this ADS-5 Steering Servo can reach full operating angle in just 0.12 seconds.

30 MPH BUGGY ACTION

The TYPHON 4X4 MEGA Buggy comes Ready To Run with everything you need other than standard AA transmitter batteries. Plus, with ideal driving conditions and using the optional gearing, you can achieve speeds of 30 mph. Just power it up and get ready to blast beyond your limits!

Typhon 4X4 550 Mega Brushed 1/8TH 4WD Buggy Green Specfications:

• Approximate Assembly Time: : Less than 1 Hour
• Ball Bearings: : Transmission Only
• Batteries: : Single 7-cell 8.4V 2400mAh NiMH w/IC3 connector
• Battery Dimensions: : 6.3 x 1.8 x 0.94" (160 x 46 x 24mm)
• Body: : Painted, decals applied, and trimmed
• Brakes: : Electronic
• Bushing Material: : Plastic
• Charger: : ADC-N7 7-cell wall charger
• Chassis: : Molded Composite
• Completion Level: : Ready-To-Run
• Differential: : Oil filled, metal internal geared differentials
• Drivetrain: : 4WD
• Final Drive Ratio: : 18.72
• Gear Pitch: : 48-Pitch
• Ground Clearance: : 1.65 in (42mm)
• Height: : 7.68 in (195mm)
• Internal Gear Ratio: : 2.88
• Length: : 20.12 in (511mm)
• Max Battery Dimensions: : 6.50 x 2 x 1.9" (165 x 51 x 48mm) with battery mounting blocks removed
• Motor Size: : 550
• Motor Type: : Brushed, 12 turn
• Pinion: : 14T
• Radio: : Spektrum STX2 2-channel w/SRX200 receiver
• Servos: : Waterproof, metal gear
• Shock Type: : Coil-over-oil-filled, molded composite bodies
• Size/Scale: : 1/8
• Speed Control: : MEGA Waterproof, IC5 connector
• Spur Gear: : 91T
• Suspension: : Independent
• Tire Diameter: : 4.60 in (117mm)
• Tire Tread: : dBoots 2HO
• Vehicle Type: : Buggy
• Water-Resistant: : Yes
• Weight: : 6.01lb (2.73kg)
• Wheel Diameter: : 3.27 in (83mm)
• Wheel Hex Size: : 17mm Hex
• Wheel Type: : 1/8th Buggy, one piece multi spoke, black in color
• Wheelbase: : 12.91 in (328mm)
• Width: : 12.05 in (306mm)

• Brand: Arrma
• Part No: ARA102694I
• Barcode: 5052127034456
• Scale: 1:8
• Build Level: Assembled (RTR)
• Vehicle Type: Buggy
• Power Source: Electric - Brushed
• Surface Type: Off Road
• Fitment: Standard Part
