Arrma Typhon 6S V4

Reach extremes of 70+ mph with the ready-to-run ARRMA® TYPHON™ 6S BLX 4WD 1/8 scale speed buggy. Designed fast, designed tough, and outfitted with the 2.4GHz Spektrum™ STX2® radio system, it's all set for fast action on all terrain, in all conditions!

Arrma Typhon 6S V4 Features:

• Ready-to-run
• Extremely durable
• Fast, 70+ mph speed potential *
• 150A, 6S LiPo ready (3S, 4S and 6S LiPo compatible)
• Anodized aluminum chassis
• Strong front and rear composite chassis braces
• Strong composite chassis side pods
• Heavy-duty drivetrain
• All-metal diff outdrives and gearbox internals
• Durable steel driveshafts
• Easy-access sliding motor mount
• 4-Bolt center diff removal
• Never-pop ball ends
• Never loose red aluminum servo saver
• Oil-filled adjustable shocks
• Black anodized aluminum front and rear shock towers
• Aluminum shock caps and protectors
* Speed achievable in optimum conditions on 6S LiPo with optional pinion gear

• Matte paint scheme with forged composite detail
• High-speed, low-drag wing
• Strengthened wing mounts
• Low-drag 1/8 buggy wheels
• Multi-terrain DBoots® KATAR B tires
• Super-durable wheel hubs
• Hub nut O-rings
• Spektrum™ 2.4GHz STX2® Radio with SRX200 Receiver
• BLX4074 2050Kv brushless motor
• BLX185 waterproof 4S/6S ESC (fitted with IC5™ connector and EC5™ compatible) **
• ADS-15M waterproof 15kg-cm metal-geared servo (195 oz-in @ 6V) **
• 2-year limited warranty (see website for details).
** For details on waterproof standards, please refer to the product instruction manuals

Needed to Complete

• (2) 2S or 3S 35C+ 5000mAh LiPo batteries with IC5/EC5 connector or
• (1) 4S or 6S 35C+ 5000mAh LiPo battery and harness with IC5/EC5 connectors
• Suitable LiPo balancing charger
• (4) AA batteries (for transmitter)
• LiPo charging bag or case (recommended)

What's in the Box?

• (1) ARRMA TYPHON 6S BLX 4WD 1/8 Speed Buggy RTR
• (1) Spektrum 2.4GHz STX2 Radio Transmitter
• (1) Product Manual

Overview

To give intermediate-level bashers such incredible speed, ARRMA® equips this new TYPHON™ speed buggy with powerful, 6S-capable brushless electronics. Its 2050Kv brushless motor is paired with the BLX185 ESC, featuring IC5™ connectors and compatible with standard EC5™ connectors. The waterproof electronics ably support all-weather bashing. Add your favorite 4S or 6S LiPo battery and watch this buggy smash your bashing speed expectations, especially while running with the optional recommended pinion gear.

New, low-drag buggy wheels arrive outfitted with super-aggressive, multi-surface DBoots® KATAR B tires. A new, low-drag wing helps keep the vehicle grounded. Both contribute to confident control and responsive handling at thrilling high speeds.

The TYPHON™ 6S BLX 4WD speed buggy blasts over dirt, asphalt, grass - all terrain and all conditions - with adjustable oil-filled shocks soaking up the bumps. The shocks are mounted on black-anodized aluminum towers and include aluminum shock caps and protectors to maintain their super-smooth damping.

For the durability needed to support such intense brushless performance, ARRMA® uses a strong anodized aluminum chassis as its foundation. Front and rear composite chassis braces and composite chassis side pods lend more strength. All-metal diff outdrives and gearbox internals plus durable steel driveshafts all contribute to a reliable, heavy-duty drivetrain that holds up to extreme bashing. A new "never loose" aluminum steering servo saver and "never pop" ball ends supply more precision, reliability and confidence.

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. A sliding mount gives you quick, hassle-free access to the motor. The center diff is easy to reach and can be removed by taking out just four bolts. Topping it all off is a sleek buggy body with streamlined good looks, featuring a matte paint scheme in black and red with forged composite detail.

The ready-to-run TYPHON™ 6S BLX 4WD includes the new Spektrum™ 2.4GHz STX2® transmitter and comes with its SRX200 receiver and ADS-15M metal-geared servo already factory-installed. The only required items are a 4S or 6S LiPo battery, compatible charger, safe charging bag, and four AA transmitter batteries.

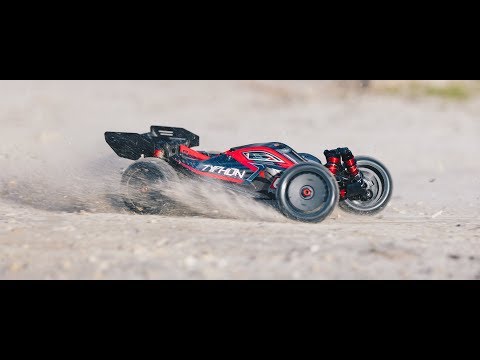

TYPHON Video Introduction

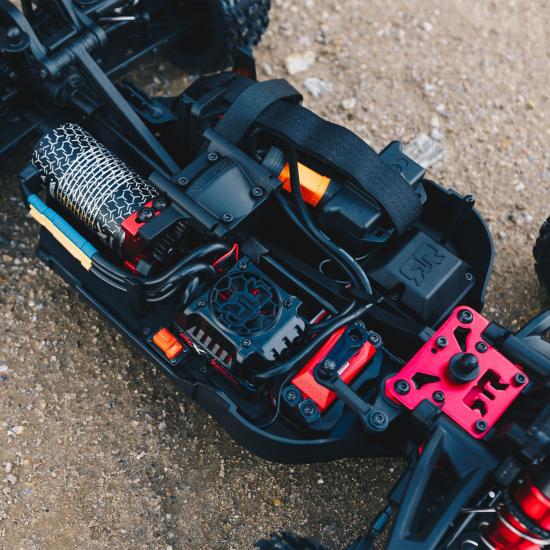

Under The Hood

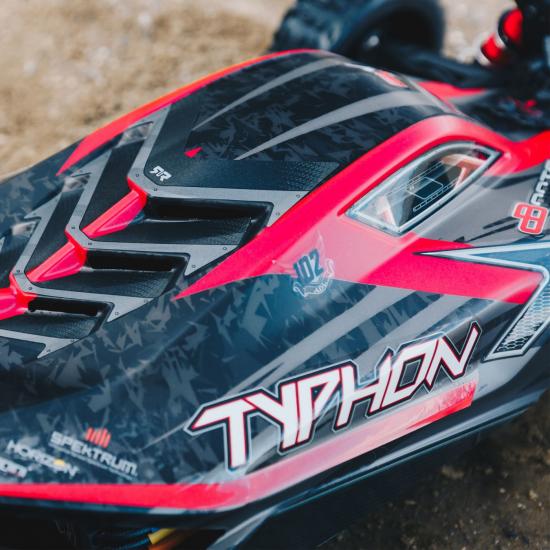

PREMIUM LOOKS

New body includes forged composite details and a matte painted finish.

TAKES THE ROUGH WITH THE TUMBLE

New high-speed, low-drag wing includes strengthened wing mounts to take the hits and keep going.

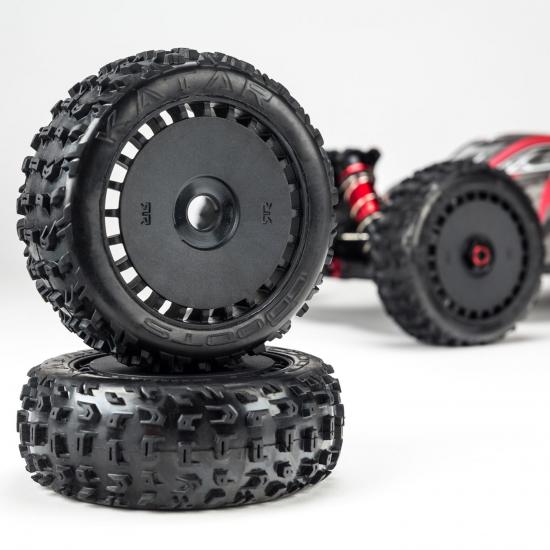

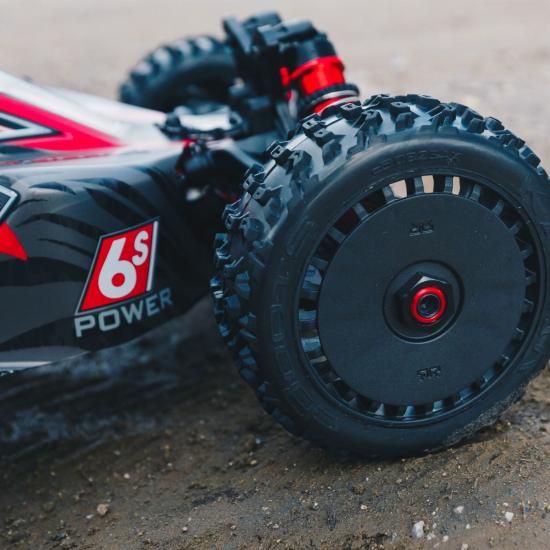

READY FOR ANYTHING

High-speed wheels and multi-terrain DBoots® Katar B tires for thrilling speed, agressive driving, and fun in all conditions.

SLIP & SLIDE

Sliding motor mount for easy meshing and removal, and easy-access 4-bolt center diff

TIGHT & TRUE

New servo saver design that will never loosen, for maximum servo protection.

CAPTIVATING

Captured steering ball ends that will never pop off

SIGNED, SEALED, & DELIVERED

New, updated hubs and hub nut o-rings that will never come loose

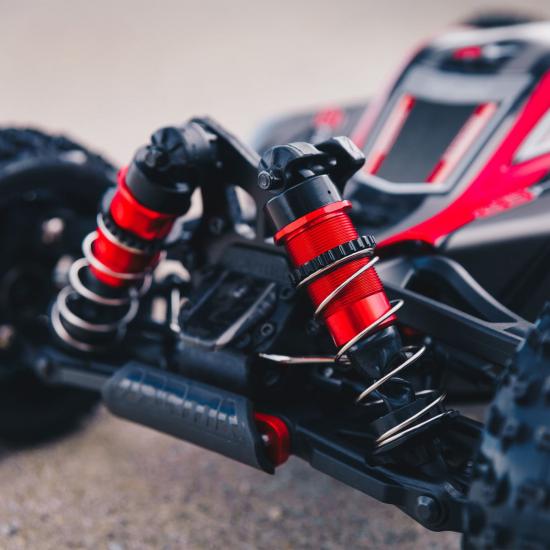

ANODIZED ALUMINUM SHOCK CAPS

Anodized aluminum shock absorbers feature aluminum caps and adjustment collars and composite shock cap protectors

HEAVY-DUTY SHOCK DESIGN

Heavy duty red anodized aluminum shocks with 4mm shock shafts

VERTICALLY ADJUSTABLE END-COVER

Ensures your batteries are firmly secured.

BLX185 ESC

• Waterproof and dustproof design *
• 150A, 6S LiPo ready (3S, 4S and 6S LiPo compatible)
• Fitted with reliable IC5™ connectors (EC5™ compatible)
• Integrated fan for reduced heat during extreme running
• High quality 10awg wires
• Low voltage cut off and thermal overload protection
• User programmable punch and brake settings
• Capable of 70+ mph (113+ km/h) speeds **
* For details on waterproof standards, please refer to the product instruction manuals.

** Speed achievable in optimum conditions on 6S LiPo with optional pinion gear.

BLX4074 2050Kv BRUSHLESS MOTOR

• Beautifully etched aluminum can
• 4-pole construction for smooth and consistent power
• Gold bullet connectors for reliable and efficient connection
• Finned motor can for increased heat dissipation
• Super strong 5mm shaft
• Capable of 70+ mph (113+ km/h) speeds *
* Speed achievable in optimum conditions on 6S LiPo with optional pinion gear.

OPTIONAL SPEED PINION INCLUDED

Red anodized motor mount and mod 1 spur and pinion gears to handle increased speed and optimum performance.

HEAVY-DUTY DRIVETRAIN

Tough A-arms and durable steel driveshafts and components keep you bashing for longer

SPEKTRUM STX2 RADIO SYSTEM

• Complete 2.4GHz radio system including a 2Ch waterproof receiver *
• Built-in 3-position throttle limiter
• Steering & throttle rate & trim adjustments with throttle and steering reversing
• FHSS 2.4GHz protocol** offers extended range and interference free performance
* For details on waterproof standards, please refer to the product instruction manuals.

** Not compatible with DSM, DSM2 or DSMR 2.4GHz protocol

ADS-15M SERVO

• Strong metal gears used throughout
• Waterproof and dustproof case *
• 25 tooth output spline
• Torque: 14kg-cm @6V
• Speed: 0.16sec/60degree @6V
• Dimensions: 40x38x20mm (Industry standard size)
* For details on waterproof standards, please refer to the product instruction manuals.

TYPHON 6S 4WD BLX 1/8 RTR Specfications:

• Approximate Assembly Time: No assembly required
• Ball Bearings: Full ball bearing drivetrain
• Body: Trimmed and painted molded polycarbonate
• Charger: Required, compatible with selected battery
• Chassis: 0.12" (3mm) thick 6061-T6 aluminum
• Completion Level: Ready-To-Run
• Differential: Three, metal gear, front & rear filled with 7,000cst silicone diff oil, center filled with 100,000cst silicone diff oil
• Drivetrain: 4WD Shaft Drive
• Final Drive Ratio: 11.79:1
• Gear Pitch: 1.0 Module
• Ground Clearance: 1.85" (47mm)
• Height: 7.48" (190mm)
• Internal Gear Ratio: 3.3:1
• Length: 20.08" (510mm)
• Max Battery Dimensions: 6.22 x 2.76 x 1.89" (158 x 70 x 49mm)
• Motor Size: 4074, 2050Kv with new sliding mount for easier maintenance
• Motor Type: Non-sensored brushless
• Pinion: 14T
• Radio: Spektrum STX2 2-channel
• Servos: Waterproof high torque
• Shock Type: Oil-filled, coil-over springs, filled with 550cst silicone shock oil
• Size/Scale: 1/8
• Speed Control: BLX185 150A w/cooling fan, 6.0V/3A continuous output, 12A max, IC5 battery connector
• Spur Gear: 50T
• Suspension: Independent
• Tire Diameter: 4.65" (118mm)
• Tire Tread: dBoots KATAR B
• Vehicle Type: Speed Buggy
• Water-Resistant: Yes
• Weight: 7.52lbs (3.42kg)
• Wheel Diameter: 3.27" (83mm)
• Wheel Hex Size: 17mm Hex
• Wheel Type: 17mm hex
• Wheel Width: Rear, 1.6" (41mm)
• Wheelbase: 12.91" (328mm)
• Width: 12.2" (310mm)

• Brand: Arrma
• Part No: ARA106046
• Barcode: 5052127032124
• Scale: 1:8
• Build Level: Assembled (RTR)
• Vehicle Type: Buggy
• Power Source: Electric - Brushless
• Surface Type: Off Road
• Fitment: Standard Part
