Associated RC10B84.1 1/10 4WD Buggy Kit AS90058
Brand: Associated
Part No: AS90058
Expected Tue 6 Oct
Request Stock NotificationRelated Items
Description

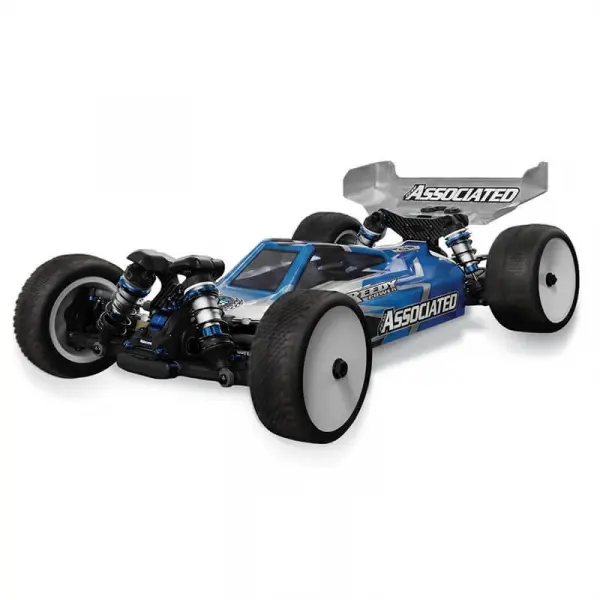

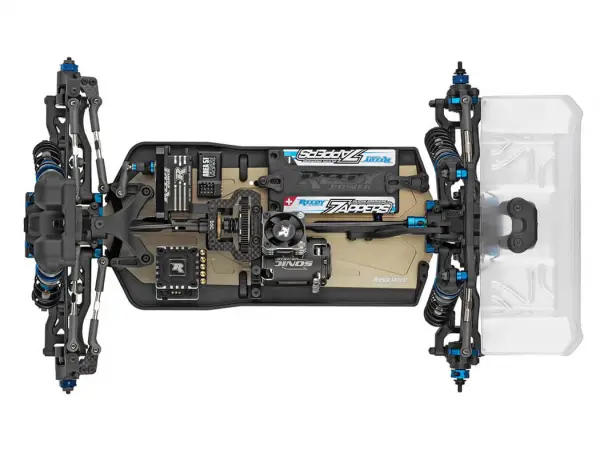

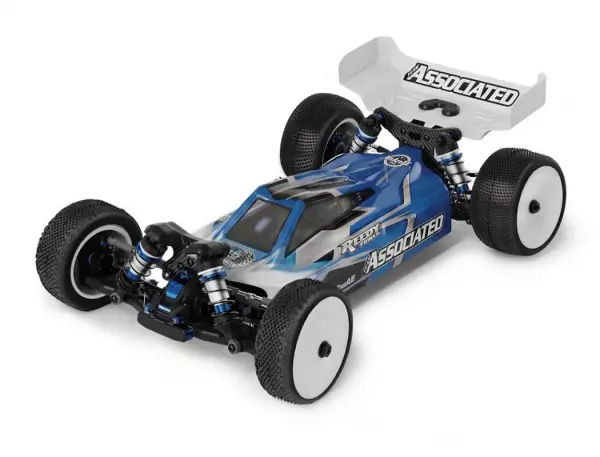

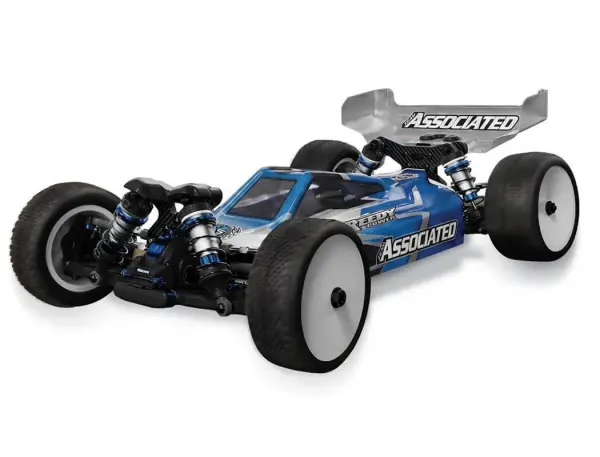

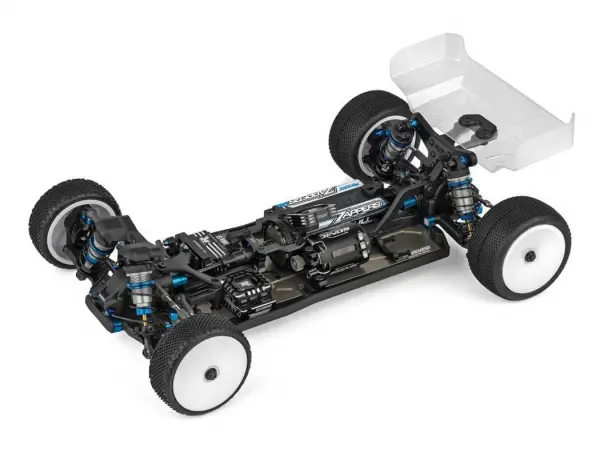

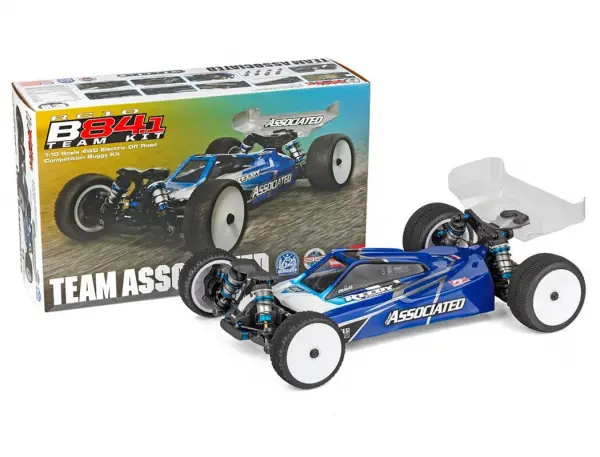

The Associated Team B84.1 Team Kit (RC10B84.1), part number AS90058, is a 1/10-scale 4WD electric off-road buggy kit. It is supplied for full user assembly and is designed around adjustable chassis, drivetrain and suspension features for competition use. The kit uses a 2.5mm tapered 7075-T6 aluminium chassis with 10 degrees of kick-up, a wide tongue layout and V2 side rails.

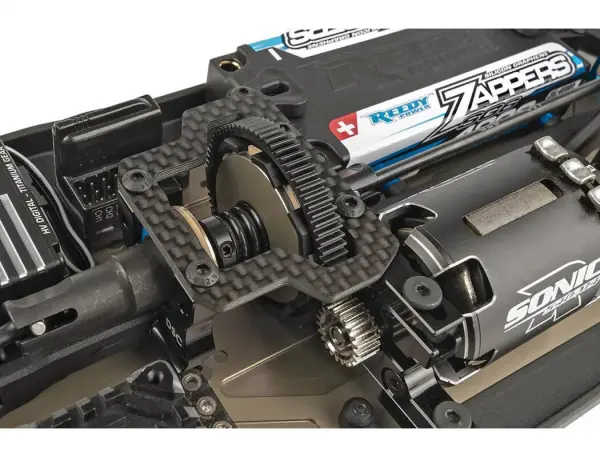

Its height-adjustable front and rear gearboxes include an additional +2 rear gearbox for high-grip conditions, while forward and rearward motor positions allow weight bias adjustment. The battery holder also has thumb tabs for easier battery removal and further weight distribution changes. A decoupled slipper clutch, aluminium centre-mounted servo mount and long rear differential outdrives form part of the drivetrain arrangement.

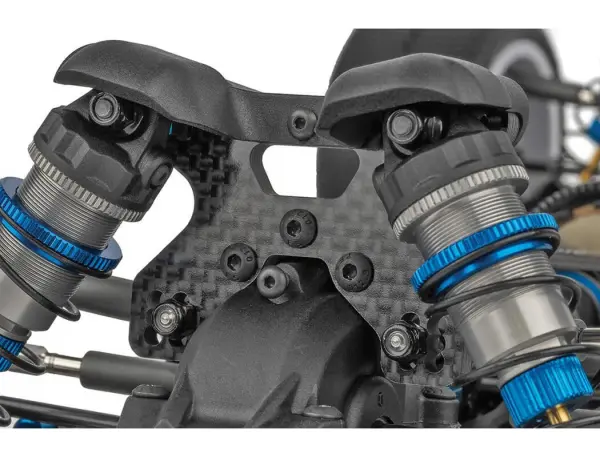

Suspension features include 73mm gull-wing front arms, a carbon fibre front shock tower with a moulded protective cover, 66mm rear CVA bones and 13mm big-bore shocks. Standard and HRC rear hubs are included, along with adjustable caster inserts offering 0, plus or minus 1, and plus or minus 2 degrees. The V2 steering posts and bellcranks are intended to reduce vertical movement in the steering rack, with the steering layout supporting bump-steer adjustment across different ride heights.
Kit Features
- 1/10-scale 4WD off-road buggy chassis
- Wide tongue chassis with V2 side rails
- Height-adjustable front and rear gearboxes
- Adjustable chassis bracing and motor positions
- 73mm front suspension geometry with carbon fibre shock tower
- Standard and HRC rear hubs with adjustable caster inserts
- Low-profile body, 7-inch rear wing and two rear wing mount heights
The body is supplied in a low-profile design, with two rear wing mounting heights for setup changes. The kit also includes 3.5mm turnbuckles and ballcups, a moulded front bumper and an optional bumper covering the anti-roll bar mounts. The internal gear ratio is 2.50:1, and the model is intended for electric power.
Required to Complete
- Motor and pinion gear
- Electronic speed controller
- Steering servo
- Transmitter and receiver
- Tyres and wheels
- Polycarbonate-specific paint
- Battery and charger
- Full kit assembly
Suggested electronics associated with this kit include the Reedy RT3507A LP brushless high-torque HV servo, Stockstar 5000mAh 7.4V 160C LCG Shorty battery, Blackbox 610R competition ESC and Sonic 540-SP5 13.5T brushless motor. Associated also lists the Reedy 1416-C2L dual AC/DC competition balance charger for the build.
Secured by Stripe
Associated B84.1 Team Kit Manuals & Guides
Manuals & Guides
Specifications
The Team Associated RC10B84.1 is Engineered for Victory!
Unleash unparalleled performance with the RC10B84.1, a 1/10-scale 4WD buggy engineered for precision, speed, and racetrack victories.
Designed with cutting-edge features, this competition machine delivers superior handling and control. Its molded height-adjustable gearboxes ensure optimized drivetrain efficiency. V2 Steering posts and bellcranks ensure reduced vertical movement in the steering rack, keeping your lines tight at every corner.
Fine-tune your setup with chassis bracing adjustments, giving you the flexibility to adapt to each track you race on. The RC10B84.1 allows for precise weight distribution and chassis balance, letting you push the limits with confidence.
Enhanced aerodynamics come standard with a low-profile body and two rear wing mount heights. The RC10B84.1 is finished with shock tower covers, 3.5mm turnbuckles and ballcups, and 13mm big-bore shocks, providing the ultimate blend of strength, precision, and performance, the RC10B84.1 is your key to placing at the top of the podium!
Features- Wide Tongue Chassis for Improved Durability.
- V2 Side Rails to Account for Wide Tongue Chassis.
- Wide A and B Mounts.
- 73mm Gull Wing Front Arm Suspension.
- Carbon Fiber Front Shock Tower for 73mm arm Geometry.
- Molded Front Shock Tower Cover for 73mm arm Shock Tower.
- V2 Steering Posts and Bellcranks to Reduce Vertical Movement in the Steering Rack.
- Long HD Differential Outdrives for the Rear Differential.

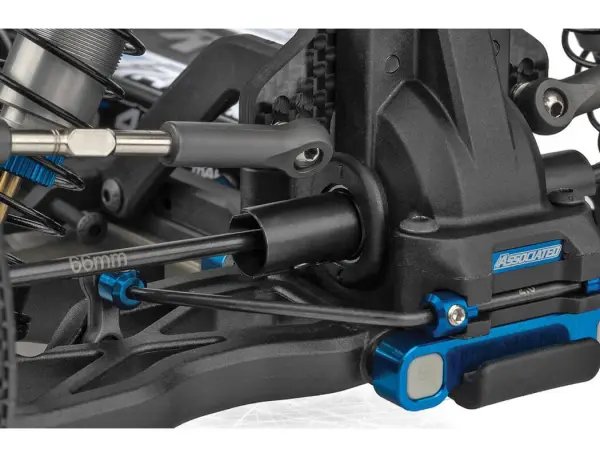

- 66mm Rear CVA Bones.
- New A and D mount 0.7mm shims.
- Molded Front Bumper with Optional Bumper That Covers Anti-roll Bar Mounts.

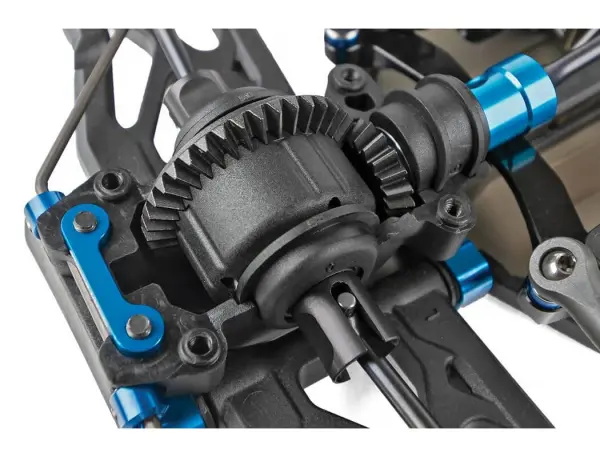

- Molded Height-Adjustable Gearboxes Front and Rear with Additional +2 Rear Gearbox for High-Grip Conditions.
- Optimized Steering Bellcranks and Rack: improved bumpsteer control at all ride heights.

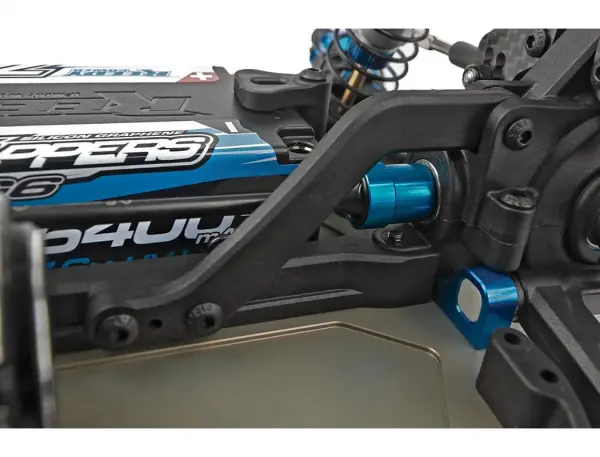

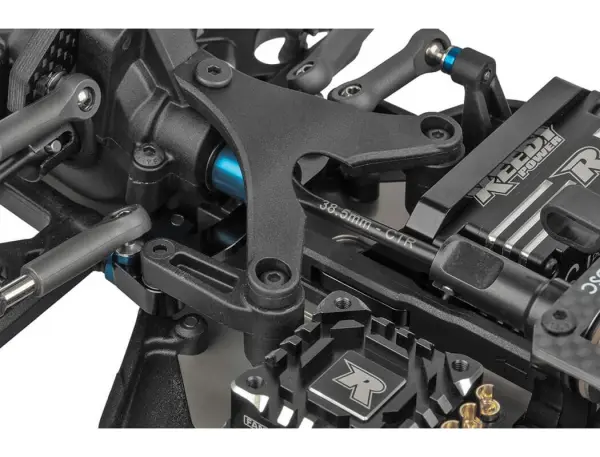

- Chassis Bracing: Fine tune chassis flex characteristics with upper and lower chassis bracing front and rear.
- Standard and HRC (High Roll Center) Rear Hubs Included.

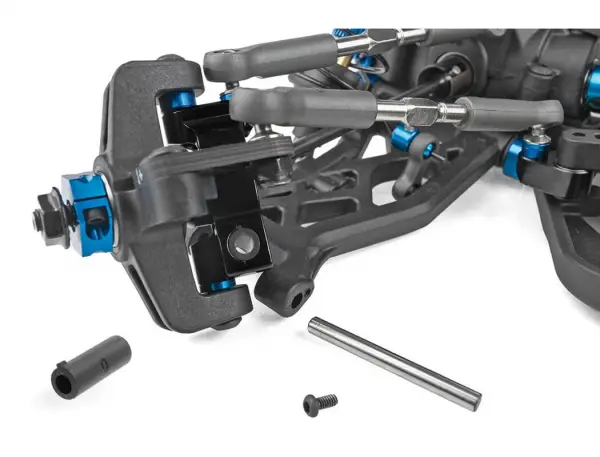

- Insert adjustable caster block with 0, +/-1, and +/-2 degree inserts included.
- Forward and Back Motor Positions: used for further weight bias adjustment.

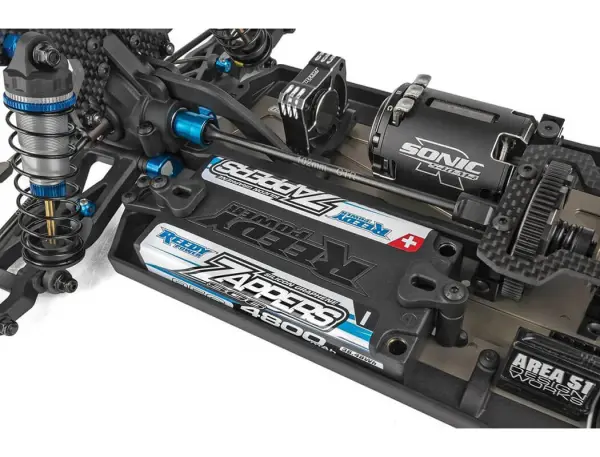

- Highly Adjustable Battery Holder with Thumb Tabs: allows for easy battery removal and fine tuning of weight bias.

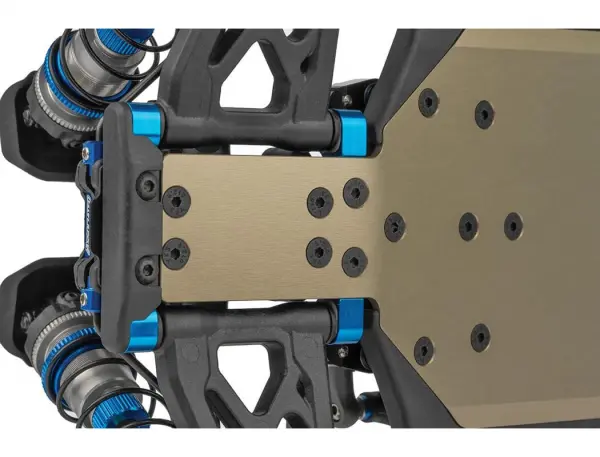

- 2.5mm Thick Tapered 7075-T6 Aluminum Chassis with 10 Degrees of Kickup and Improved Departure Angle.
- Decoupled Slipper Clutch Included.

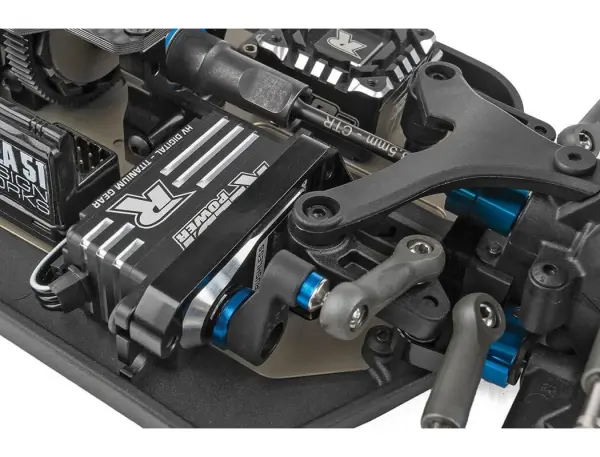

- Aluminum Center-Mounted Servo Mount.
- Two heights Included for Rear Wing Mount.
- 7-inch Rear Wing.
- Low-Profile Body.
- 3.5mm Turnbuckles and Ballcups.
- 13mm Big-Bore Shocks.
Power Source: Electric
Terrain: Off-Road
Body Style: Buggy
Scale Size: 1:10 Scale
Assembly Level: Kit*

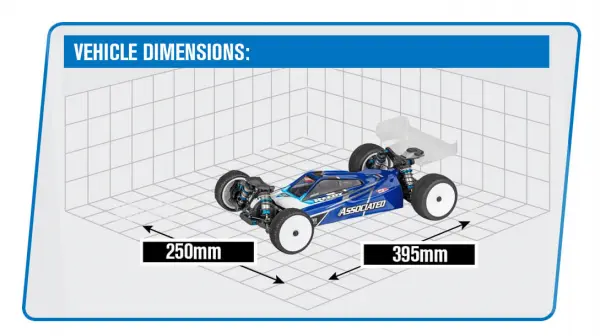

Width: Varies
Wheelbase: Varies
Weight: Varies
Internal Gear Ratio: 2.50:1
Drive: 4WD
Please Note: *This vehicle comes as a kit and must be fully assembled by the user.
Required To Complete- Motor
- Pinion Gear
- ESC
- Servo
- Transmitter and Receiver
- Tires
- Wheels
- Polycarbonate specific paint
- Servo: AS27179 (Reedy Power RT3507A, LP Brushless High-Torque HV Servo).
- Battery: AS27611 (STOCKSTAR 5000mAh 7.4V 160C LCG Shorty).
- ESC: AS27016 or #27017 (Blackbox 610R Competition ESC).
- Motor: AS27481 (Sonic 540-SP5 13.5T Brushless Motor).
- Charger: AS27203 (Reedy 1416-C2L Dual AC/DC Competition Balance Charger).
Key Info:
- Brand: Associated
- Part No: AS90058
- Barcode: 784695900585
- Scale: 1:8
- Vehicle Type: Buggy
- Power Source: Electric - No Motor
- Surface Type: Off Road
- Build Level: Unassembled (Kit)
