Associated Datsun 240Z Apex 2 RTR

TEAM ASSOCIATED DATSUN 240Z APEX 2 RTR 4WD

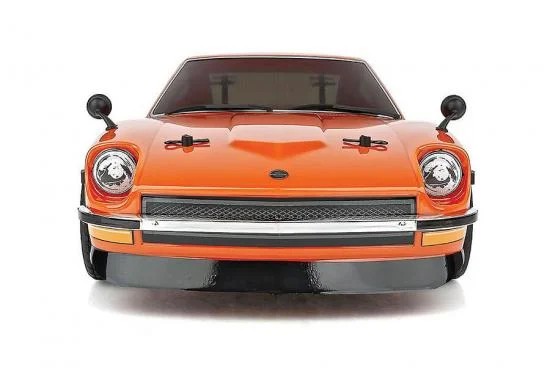

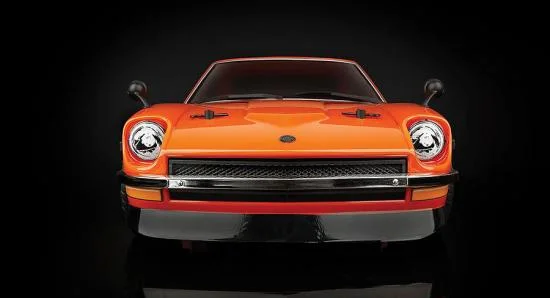

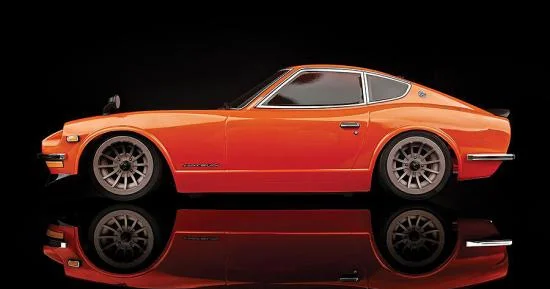

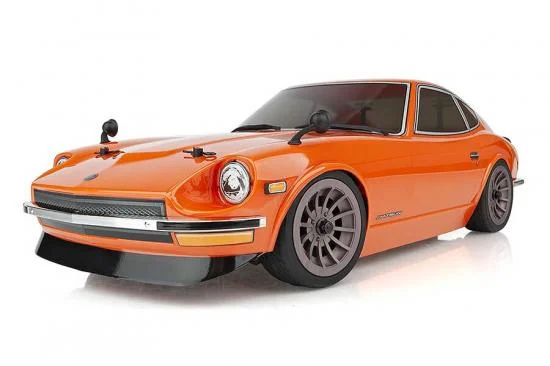

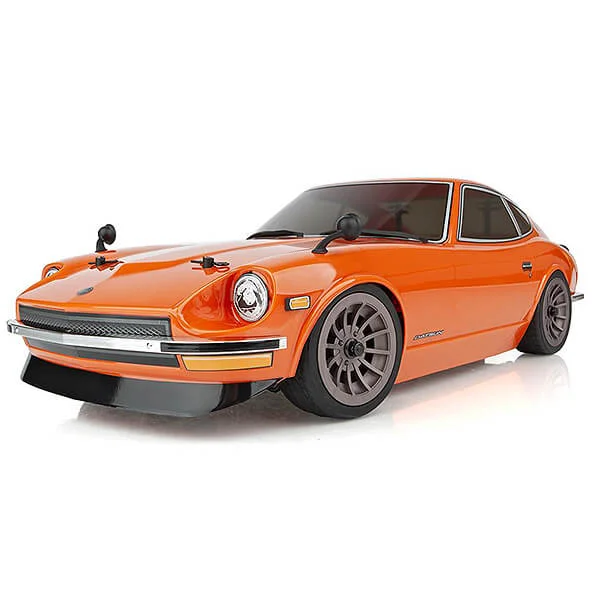

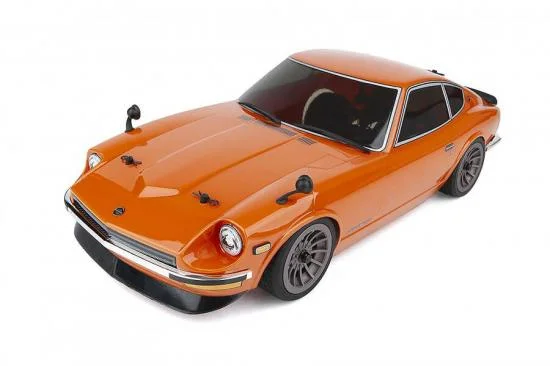

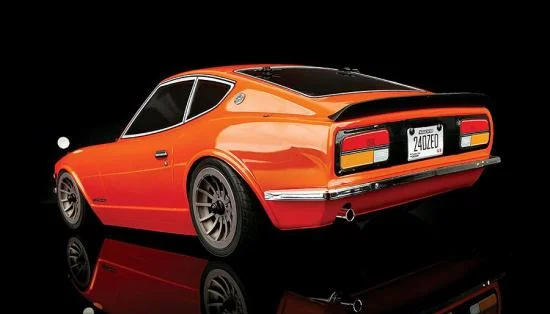

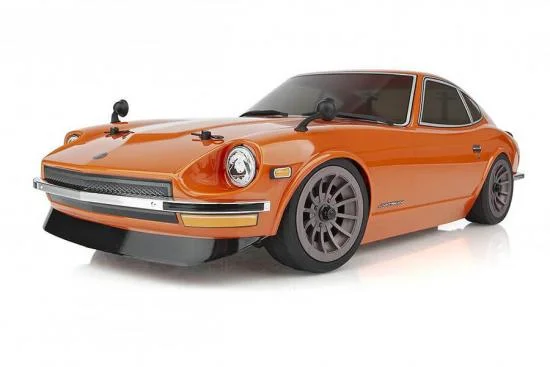

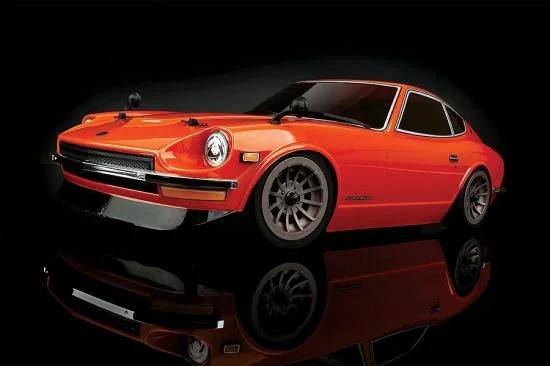

Team Associated is excited to bring you the Japanese classic Datsun 240Z in radio-controlled form. Built on a budget friendly Apex2 Sport chassis, the Team Associated Datsun 240Z is a beautiful true-to-life scale version of the full-size counterpart!

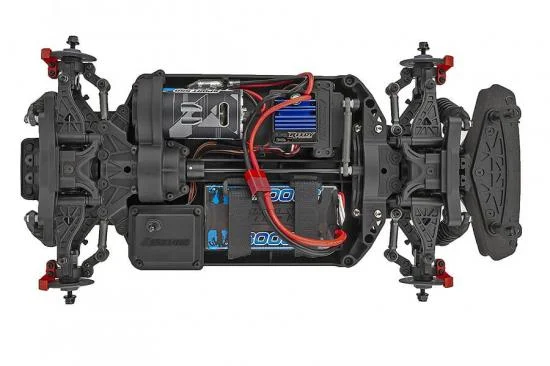

The Apex2 Sport chassis features some of the latest features in on road racing. A front and rear independent suspension with oil-damped shocks and active rear toe give the Apex2 Sport the ultimate in handling on uneven tarmac. This makes it a perfect platform for the Datsun 240Z!

Please Note: Due to ongoing R&D, photos may not match final kit. Vehicle shown on these pages equipped with items NOT included Reedy motor and battery.

Please Note: Nissan Motor Co., Ltd. Trademarks, designs, copyrights and/or other intellectual property rights are under license.

Features

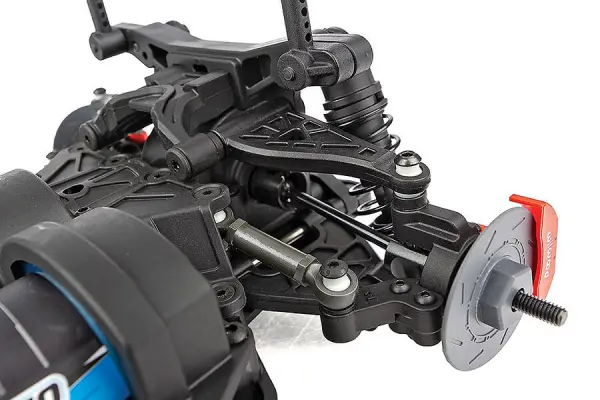

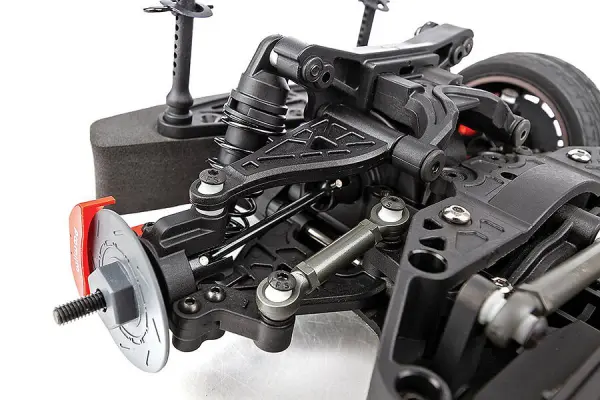

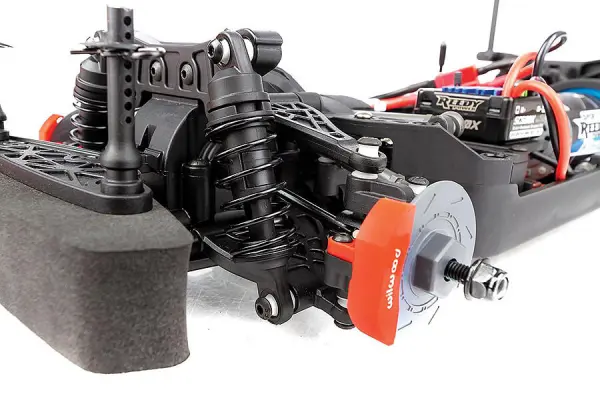

• For better handling, A-arm front and rear independent suspension keeps the Apex2 chassis under control during the wildest of driving conditions.
• Plastic body shock absorbers smooth out the bumps when cruising around the streets.
• Active rear suspension allows the amount of toe change to be adjusted through the suspension cycle, increasing or decreasing rear grip.

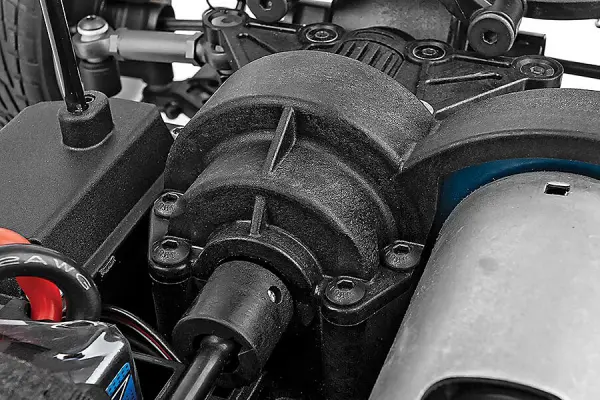

• A sealed center driveline keeps dirt and debris out for smooth and reliable power delivery.
• The Reedy 550 15-turn 3-slot motor provides plenty of torque and tire ripping speed.
• Reedy SC500X programmable brushed ESC (program card sold separately) and Reedy Sport 55015-turn 3-slot brushed motor.

More Features

• 550-sized brushed motor
• Programmable ESC (with aftermarket program card)
• Sealed receiver box
• Steel 25T servo horn
• Adjustable hook and loop battery straps
• Steel dog bones and drive axles
• Sealed front and rear gear differentials

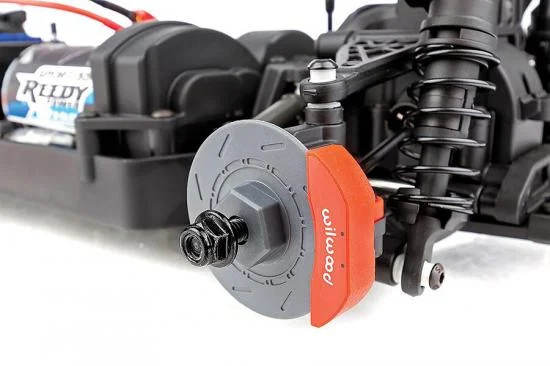

• Injection-molded brake calipers and rotors
• Aluminum motor plate
• Adjustable shock mounting locations
• Bolt-on steering plates
• Molded one-piece tire rods and steering links
• Adjustable body post height locations
• Active rear toe suspension design
• Plastic tub main chassis
• Shorty battery box
• POM-filled injection molded pivot balls
• Oilite bushings

Specifications

Power Source: Electric
Terrain: On-Road
Body Style: Touring Car
Scale Size: 1:10 Scale
Assembly Level: Ready-To-Run*

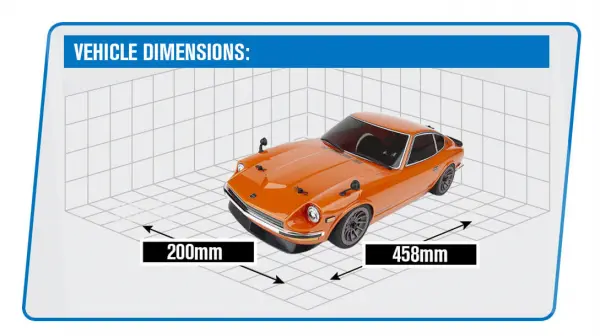

Length: 458mm (18.03in)
Width: 200mm (7.87in)
Wheelbase: 259mm (10.2in)
Weight: varies
Internal Gear Ratio: varies
Drive: 4WD

* This vehicle is fully assembled and ready to run right out of the box but does require a battery and/or charger.

Required To Complete

• Four AA batteries used in the transmitter.
• LiPo Shorty battery with High Current T-Plug (AS758 Reedy 7.4V 2S LiPo Battery with T-plug).
• Charger for battery used (AS27201 or AS27203 Reedy balance Charger for LiPo, LiFe).
