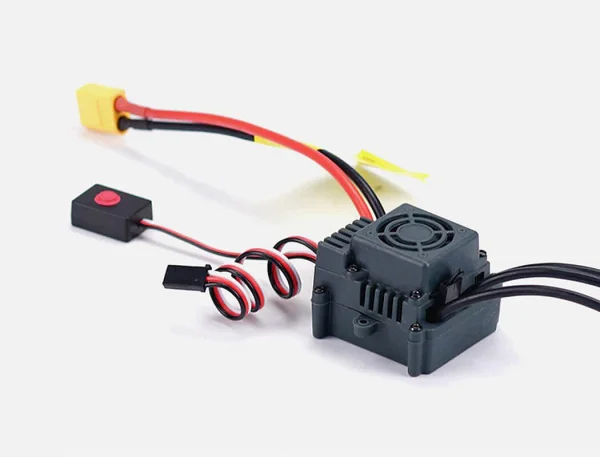

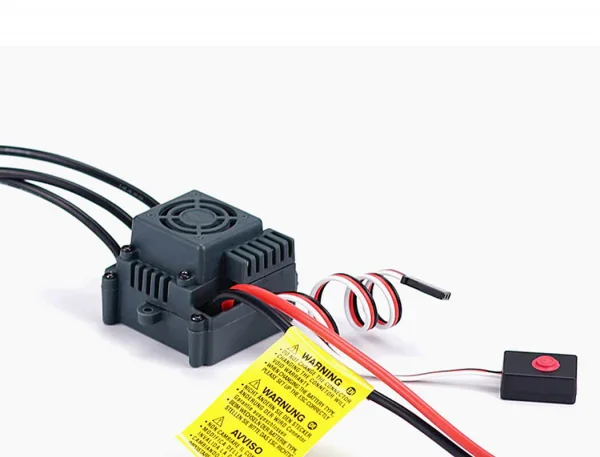

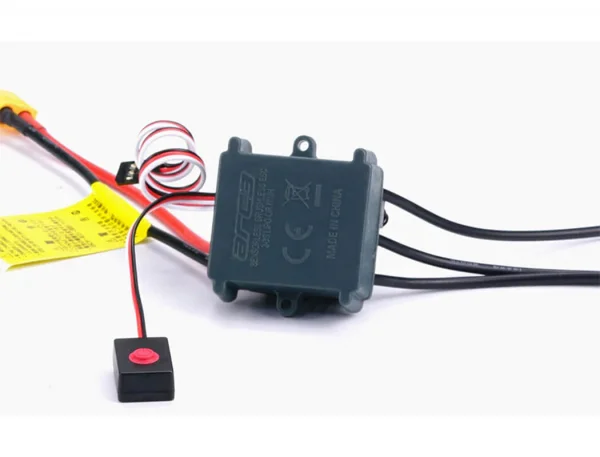

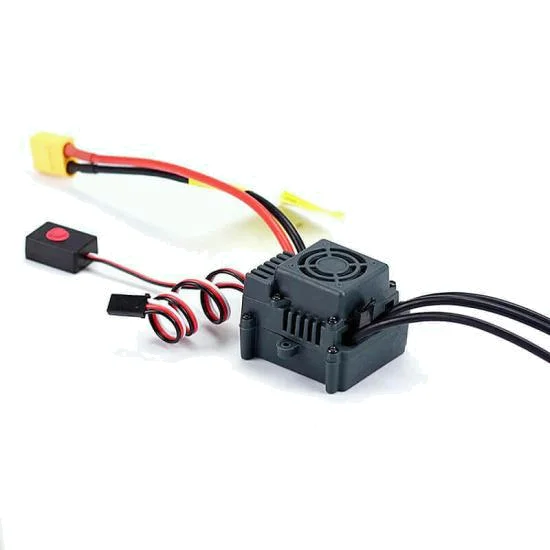

Carisma Arc-3 Brushless Speed Control (2-3S)

The Carisma ARC-3 Brushless Speed Control (2–3S) delivers dependable sensorless performance in a compact package. With a 50A continuous current rating, 6V/3.0A switch-mode BEC and active fan cooling, this ESC is a solid choice for a wide range of RC applications. Part number CA16518.

Features

• 3S-friendly sensorless brushless ESC
• Multiple protection functions: low-voltage protection, ESC overheating protection, power overload protection
• Built-in switch-mode BEC: continuous 3.0A, 6V output
• High-speed, fan-controlled cooling system
• External power switch

Specifications

• Continuous current: 50A
• Supported motor type: sensorless brushless
• Battery: 2–3S LiPo
• BEC output: 6V, 3.0A continuous
• Fan power: 6V stable input from BEC
• Size: 46.5 × 52.5 × 37 mm
• Weight: 104 g

Suggested Compatibility

• TC
• Off-road

Important

This product is not waterproof. Do not operate in wet conditions.
