Carisma M40F 1:10 Mid-Motor FWD Assembly Kit CA91668
Brand: Carisma
Part No: CA91668
Expected Mon 14 Dec
Request Stock NotificationFinance options available at checkout.
Customers Also Buy
Popular with customers who buy products like the Carisma M40F Mid-Motor FWD 1:10 Assembly Kit
Description
The Carisma M40F Mid-Motor FWD 1:10 Assembly Kit, part number CA91668, is an assembly kit for a 1:10 radio-controlled front-wheel-drive car with a mid-mounted motor. It is designed for builders who want to select and install their own electronics, body shell, wheels and tyres rather than using a pre-configured package.

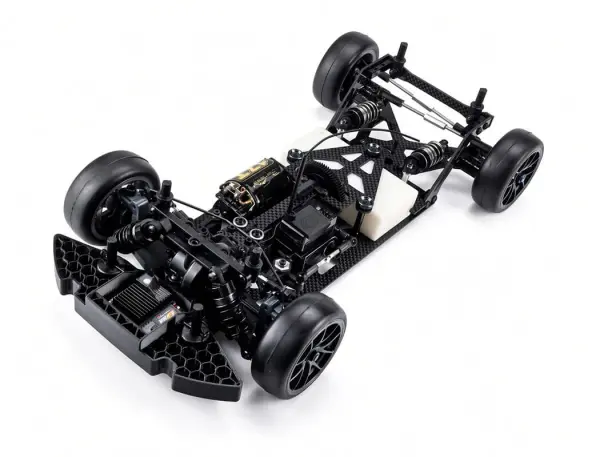

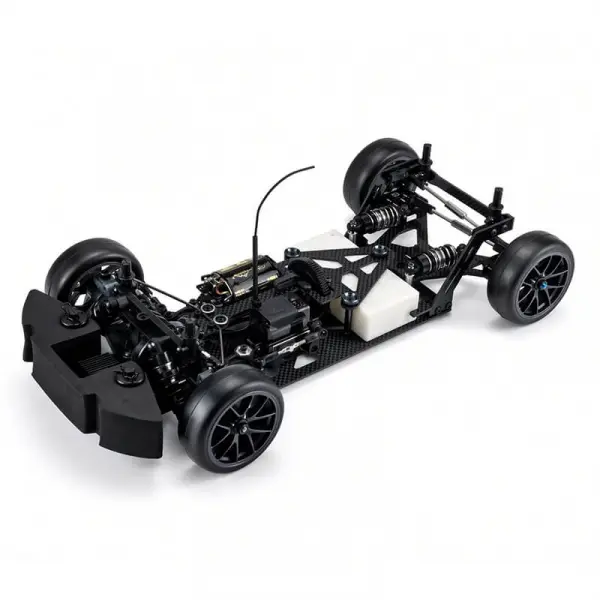

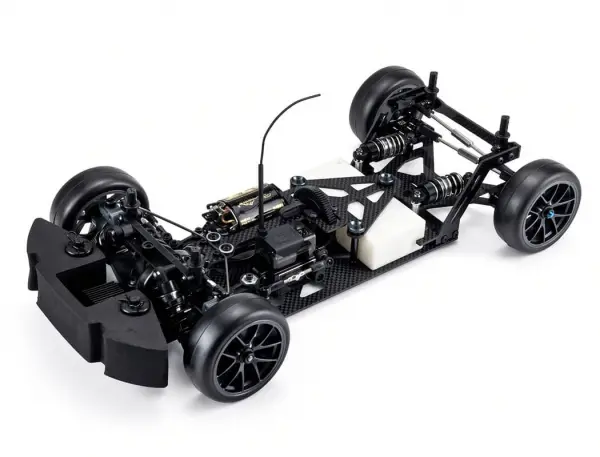

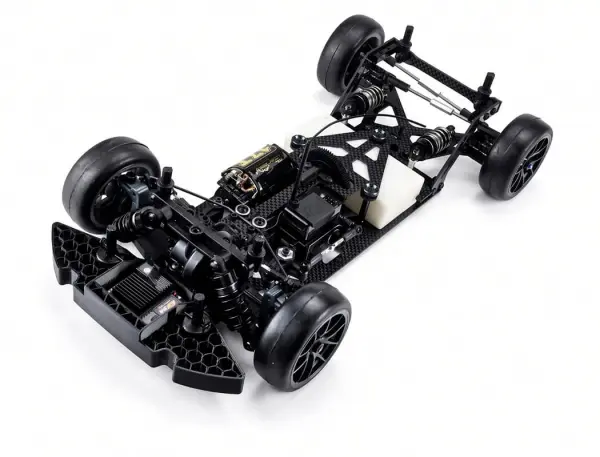

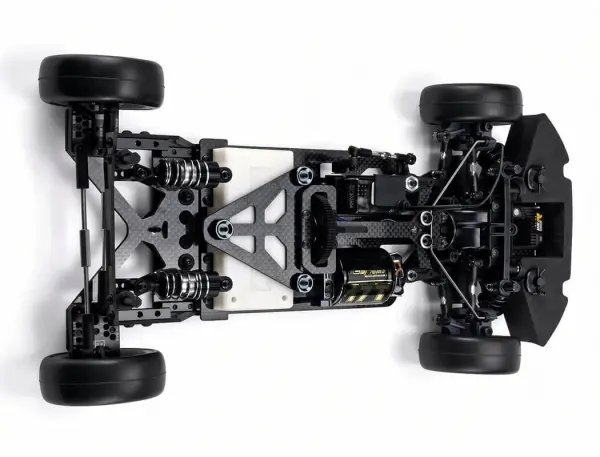

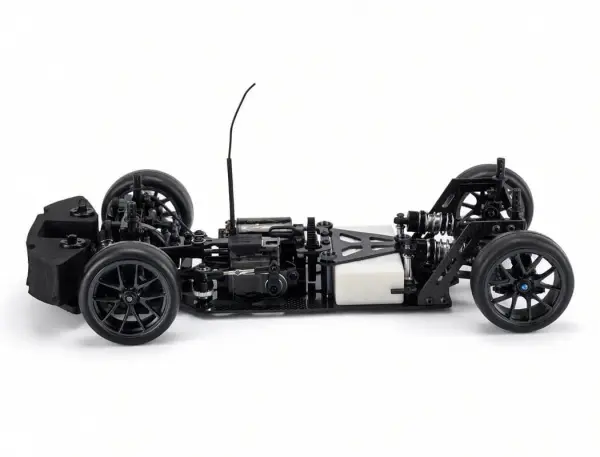

The M40F uses a mid-motor front-wheel-drive layout with the ESC positioned at the front, creating a front-biased chassis arrangement. Its carbon fibre main chassis incorporates AI-assisted flex, while the rear suspension uses a torsion plate design inspired by full-size car layouts. The kit also includes a CNC motor mount, a full metal gear front differential and Carisma M40S 2.0 front suspension arms.
The chassis is intended for 190 mm body shells, with Honda Civic-style bodies among the suggested options described by Carisma. Adjustable front and rear camber and toe allow the setup to be changed during assembly and tuning. An adjustable wheelbase accommodates measurements between 257 mm and 260 mm, while the 12 mm wheel hex and 24 mm touring tyre format support commonly used components in this size range.
Features
- Mid-motor front-wheel-drive chassis layout
- Carbon fibre main chassis with AI-assisted flex
- Front-mounted ESC position for front weight bias
- Rear torsion plate suspension
- CNC motor mount and full metal gear front differential
- Carisma M40S 2.0 front suspension arms
- Adjustable front and rear camber and toe
Specifications
- Scale: 1:10
- Wheelbase: adjustable from 257 mm to 260 mm
- Body shell format: 190 mm
- Wheel hex: 12 mm
- Tyre size: 24 mm standard touring format
Required to Complete
As an assembly kit, the M40F requires separate electronics and running equipment. The following components are listed for completion:
- Motor
- Electronic speed controller
- Shorty steering servo
- Radio system
- Shorty battery
- 190 mm body shell
- 24 mm tyres and 12 mm hex wheels
- Shock oil and 1.5 mm, 2.0 mm and 2.5 mm hex drivers
Secured by Stripe
Specifications
Mid-Motor FWD Assembly Kit for Drivers Who Want Something Different. Carisma announces the M40F, a new 1/10 mid-motor front-wheel-drive assembly kit in the M40 series.
Why we built it.
Every few years, Carisma runs a special off-the-chart development program for the R&D team. Most of these projects stop after the prototyping stage. Once in a while, one stands out. The M40F is that project.
The recent launch of the Honda FL5 Civic Type R created a lot of interest in a proper FWD chassis to pair with Honda Civic bodies. That demand gave the project a clear purpose: build a front-wheel-drive car that feels different, works with 190 mm bodies, and is enjoyable to assemble and drive.
The M40F is positioned for hobby customers who want a fresh FWD experience, not for the hardcore racing class. It is an assembly kit, so customers install their own motor, ESC, servo, radio and battery. This gives shops a flexible product that pairs easily with existing electronics, Civic-style bodies and 190 mm wheel and tyre inventory.
Drive Something Different.
Features- Mid-motor front-wheel-drive layout.

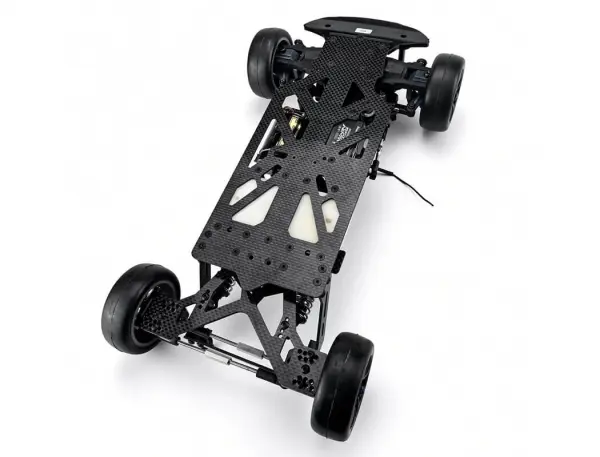

- Carbon fibre main chassis with AI-assisted flex.

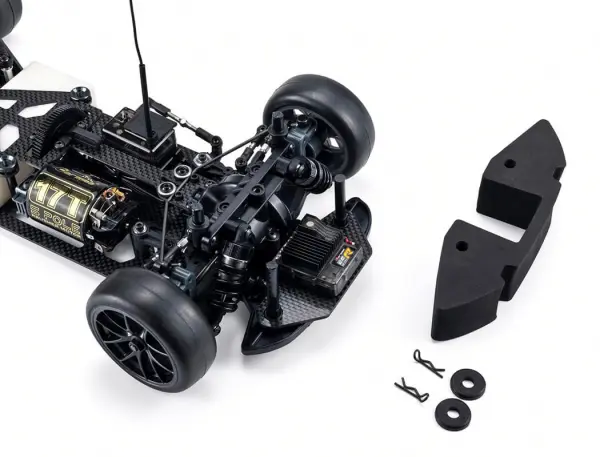

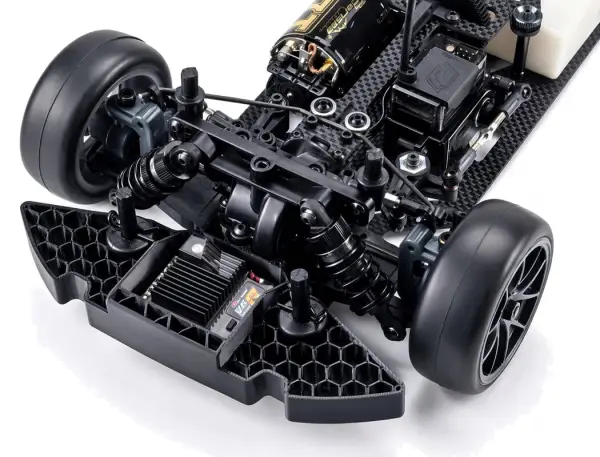

- Front-mounted ESC position for strong front weight bias.

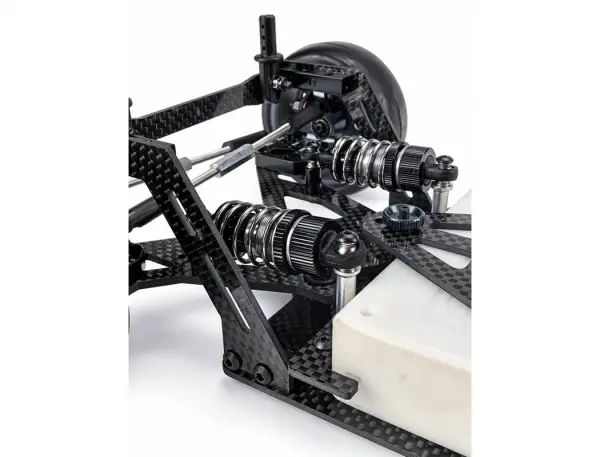

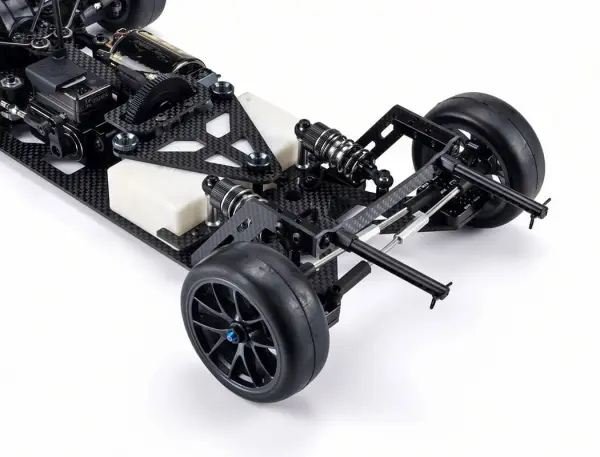

- Rear torsion plate suspension inspired by real-car design.
- CNC motor mount.
- Full metal gear front differential.
- Carisma NEW M40S 2.0 front suspension arms.
- Adjustable wheelbase: 257 mm – 260 mm.

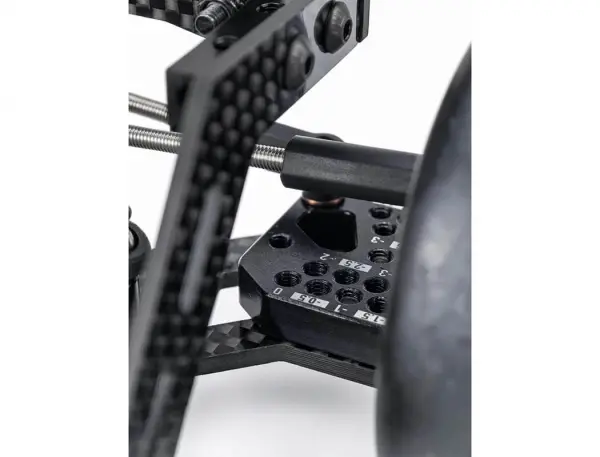

- Adjustable camber and toe, front and rear.
- Fits 190 mm body shells.
- 12 mm wheel hex / 24 mm tyres.
An optional independent rear suspension conversion will be available later for customers who want a more conventional four-wheel independent setup.
Who is this for ?
- Drivers looking for a FWD chassis to pair with Honda Civic and other 190 mm bodies.
- Customers who already own a 4WD touring car and want a second, more characterful FWD car.
- Builders who like to choose their own electronics.
- Hobby and club drivers looking for a different on-road feel.
This is not a replacement for high-end FWD race kits. It is a distinctive kit with a clear story: front bias, torsion rear, mid-motor FWD, built to enjoy.
Required To Complete- Motor
- ESC
- Shorty Servo
- Radio System
- Shorty Battery
- 190 mm Body Shell
- 24 mm Tyres
- 12 mm Hex Wheels, Shock Oil
- Tools needed: 1.5 mm, 2.0 mm and 2.5 mm hex drivers
Scale: 1/10
Motor: Mid-Motor FWD
Fits: 190 body
Wheel Base: adjustable 257~260mm
Wheel Hex: 12mm
Wheel Size: 24mm standard touring tyres.
Key Info:
- Brand: Carisma
- Part No: CA91668
- Barcode: 4892793916684
