Carson Reflex Wheel Pro 4 RTR Electric-Set

The Carson Reflex Wheel Pro 4 RTR Electric-Set (HC-C500112) is a convenient 2.4 GHz radio and power bundle for radio-controlled models. It brings together a three-channel transmitter, a compact four-channel receiver, a robust 6 kg metal‑gear servo, plus a matched NiMH drive battery, charger and transmitter batteries, making it a practical upgrade or replacement set.

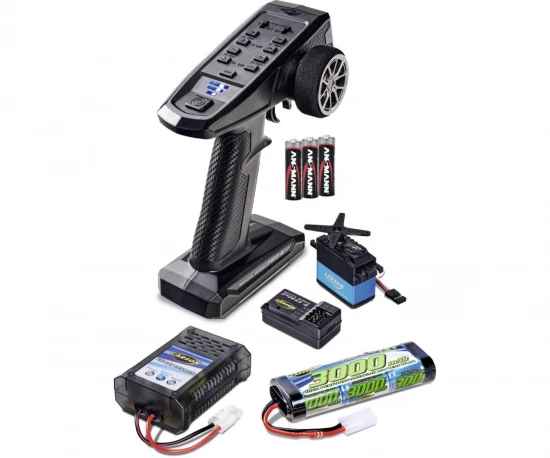

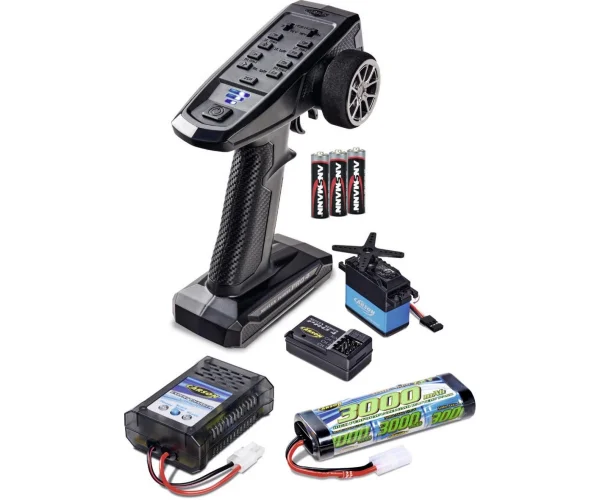

What’s Included

• Carson 3-channel 2.4 GHz transmitter
• 4-channel receiver
• 6 kg CS6 steering servo (metal gear)
• NiMH charger
• NiMH drive battery 7.2 V / 3000 mAh (Tamiya plug)
• 3 x transmitter batteries LR06/AA
• Instruction manual

Technical Details

• Operating voltage of the transmitter: 3.6–4.5 V
• Two infinitely variable, fully proportional channels
• Reverse for both channels (reversal of direction of travel)
• Trimming function for throttle and steering
• Dual rate for both channels (travel limiting of the servos)
• Power supply of the receiver up to 3.5–10 (without a BEC)
• Channel 3 programmable as switch/button function (servo)
• Uni connector system Futaba/Graupner-J/R (suggested compatibility)
• Battery status display via LED
• Steering servo: JR plug, 6 kg, metal gear
• Charger: NiMH, 4–8 cells, maximum output power 2 A
• Battery: NiMH, 7.2 V / 3000 mAh with Tamiya plug
• Transmitter batteries: LR06/AA 1.2 V

Features

• 3-channel remote control, including 2 gradually adjustable and fully proportional channels
• Ball-bearing control unit for precise steering
• LED battery status indicator
• Failsafe function
• Ergonomically designed steering wheel position at an angle of 4°
• Nano receiver waterproof
• Carbon structure
• Servo reverse (reverses direction of travel for channels 1 and 2)
• Trim function for throttle and steering
• Dual rate for channels 1 and 2 (limits steering and reduces the speed)

With its failsafe, dual-rate and trim functions, plus a waterproof nano receiver and robust metal‑gear servo, this Carson set provides a well-rounded control solution for everyday RC use. The Futaba/Graupner-JR uni connector system offers suggested compatibility with common servo and receiver connections.
