CarsonFS 14Ch Reflex Stick Pro 4 LCD 2.4GHz
Just Added

Carson FS 14Ch Reflex RC Transmitter HC-C501023

Brand: Carson

Part No: HC-C501023

£161.50 RRP £170.00
Pre-Order

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

Description

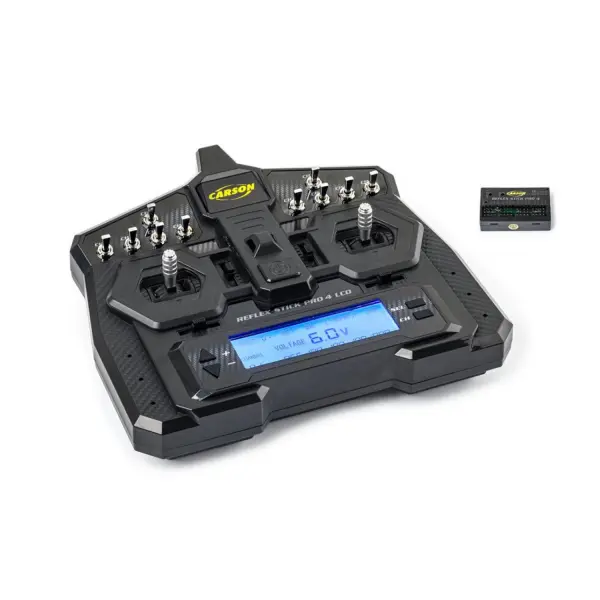

The Carson FS 14Ch Reflex Stick Pro 4 LCD 2.4GHz radio system, part number HC-C501023, provides 14-channel control for RC trucks, construction models and function models. It combines a transmitter with an LCD display, a 15-channel receiver and setup functions for models requiring lighting, sound and other auxiliary controls.

Four channels are continuously adjustable and fully proportional, while channels 7, 8, 9, 10, 13 and 14 use three-position toggle switches. Channels 5, 6, 11 and 12 are operated using three-position push buttons with a centre position. This layout allows several switching tasks to be assigned from the handset rather than relying only on steering and throttle controls.

The transmitter includes memory for 15 model setups and adjustment functions for channels 1 to 4. These include dual rate, servo reverse, trim, end point adjustment and exponential settings, allowing servo travel and response to be configured for different models. A failsafe system is also included. The stick units use sensitive mechanics, while the carbon-look surface and illuminated logo provide the stated appearance features.

Suggested compatibility includes TAMIYA MFC 01, MFC 02 and MFC 03 systems, along with DMD units. The Graupner J/R connector system supports integration with compatible equipment. The transmitter operates from four AA cells, and the receiver power supply can reach up to 11 V when used without a BEC.

What's Included

  • 14-channel LCD remote control
  • 15-channel receiver
  • Manual

Specifications

  • Transmitter operating voltage: 4.8–6 V
  • Transmitter battery supply: 4 AA cells
  • Receiver power supply: up to 11 V without BEC
  • Connector system: Graupner J/R
  • Model memory: 15 setups
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Specifications

The FS 14K Reflex Stick Pro 4 LCD 2.4GHz brings broad channel control and fine setup options into one radio system built for demanding RC models. With 14 channels, an LCD layout and a 15-channel receiver in the set, it supports complex functions that go beyond basic steering and throttle, while the carbon-look finish and illuminated logo give the transmitter a distinctive technical appearance. Channels 7, 8, 9, 10, 13 and 14 use 3-position toggle switches, while channels 5, 6, 11 and 12 use 3-position push buttons with centre position. The transmitter runs on 4.8 to 6 V from 4 AA cells, and the receiver power supply can reach up to 11 V without BEC. A Graupner J/R connector system is used for integration, and the radio is 100% compatible with TAMIYA MFC 01, 02 and 03 as well as DMD units. The set includes the 14-channel LCD remote control, a 15-channel receiver and a manual. For truck, construction and function models with multiple switching tasks, the channel layout supports lighting, sound and auxiliary functions from one handset. The 14 Years marking fits advanced RC use, where stored model setups and detailed channel assignment matter during regular driving and system changes.
Features
15 model memory
Four continuously adjustable, fully proportional channels
Channels 7, 8, 9, 10, 13, 14 with 3-position toggle switch
Channels 5, 6, 11, 12 with 3-position push button with center position
Dual Rate Channels 1-4 (servo travel limit)
100% compatible with TAMIYA MFC 01/02/03 and DMD units
Servo Reverse (reversal of rotation direction for channels 1-4)
Trim function for channels 1-4
EPA Channels 1-4 (servo travel limit)
EXP function Channels 1-4 (exponential)
Failsafe system
Stick units with sensitive mechanics
Modern ergonomic RC casing
Logo illumination when powered on
Surface with elegant carbon-look finish
Technical Details

  • Operating voltage transmitter: 4.8 - 6 V (4 AA cells)
  • Receiver power supply (without BEC) up to 11 V possible
  • Connector system: Graupner J/R


Key Info:
  • Brand: Carson
  • Part No: HC-C501023
  • Barcode: 4005299017681
