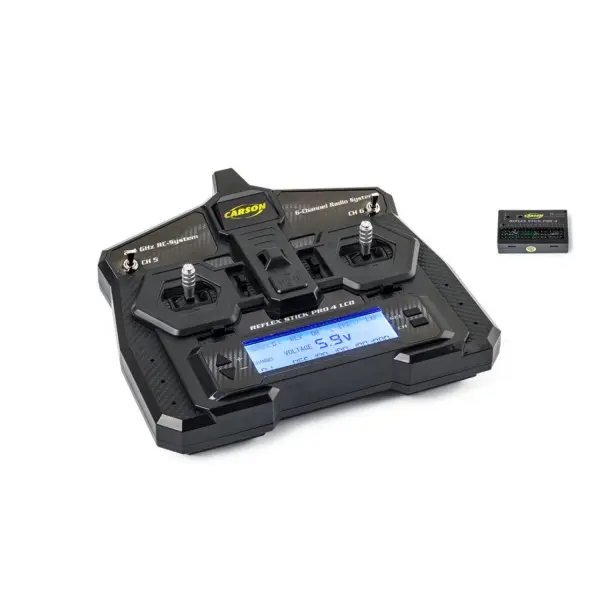

Carson 6 Channel RC Transmitter Radio HC-C501021

The Carson CarsonFS 6 Ch Reflex Stick Pro 4 LCD 2.4GHz transmitter, part number HC-C501021, is a six-channel 2.4GHz radio system for managing compatible radio-controlled models. It provides four continuously adjustable, fully proportional channels for precise control, while channel 5 uses a three-position push button with a centre position and channel 6 is operated through a three-position toggle switch. Fifteen model memory slots allow settings for multiple models to be stored and selected as needed.

Control adjustment is supported by servo reversing, trim and dual-rate functions for channels 1–4, allowing the direction, neutral position and servo travel to be configured. EPA provides servo travel limit adjustment, while the EXP function offers exponential control for these channels. A failsafe system adds an important control feature, and the control sticks use smooth, precise mechanics within an ergonomic housing.

Features

The transmitter has an illuminated logo when powered on and a premium carbon-look surface. It is also suggested for compatibility with TAMIYA MFC 01, MFC 02, MFC 03 and DMD units. The receiver power supply can support up to 11V when a BEC is not used.

Technical Specifications

• Transmitter operating voltage: 4.8–6V
• Transmitter power: 4 AA cells
• Receiver power supply without BEC: up to 11V
• Connector system: Graupner J/R
• Channels: 6
• Model memory: 15 slots
