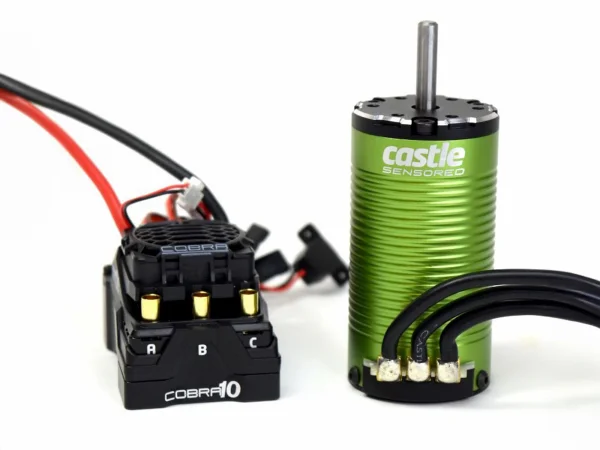

Castle Creations Cobra 10 ESC Combo With 1412-3200 Motor
Brand: Castle Creations
Part No: P-CC010-0174-14
Out Of Stock
Request Stock NotificationThe Castle Creations Cobra 10 ESC Combo With 1412-3200 Motor (P-CC010-0174-14) brings next‑generation control and efficiency to 1/10 surface models. A fast 32‑bit dual‑core processor, enhanced data logging and robust thermal design work together to deliver smooth drive feel, dependable braking and consistent performance. Housed in a rugged CNC‑machined aluminium case and potted for waterproof protection, the Cobra 10 also features an integrated, highly adjustable 8A BEC to support power‑hungry servos.
Castle’s CRYO‑DRIVE technology reduces heat build‑up during partial throttle running, while SmartSense provides silky sensored starts before transitioning to ultra‑efficient sensorless operation. On‑the‑fly tuning via the AUX wire, audible alerts and convenient transmitter programming make it easy to dial in your setup. The included Castle Link V4 USB‑C adapter unlocks extensive tuning options and firmware updates (Windows 10 or higher).
Key Features
- 32‑bit processing for smoother motor control and improved response
- Enhanced data logging: double sample frequency, 8× logging time, timing and acceleration data points, looping, and session downloads
- Hill Hold drag brake enhancement for rock crawling
- Improved braking adjustability with separate brake and reverse curves
- Internal BEC adjustable 5.0–8.0V in 0.1V increments (8A peak)
- SmartSense, Sensored Only and Brushed motor modes
- CRYO‑DRIVE thermal management for cooler running
- CNC aluminium case, waterproof epoxy potting and forged heatsink with elliptical fins
- Thermally controlled 25mm cooling fan (oversized, factory‑equipped)
- AUX wire for real‑time adjustments (torque, throttle, brake, drag brake)
- Audible alerts and transmitter programming for common settings
- Castle Link V4 USB‑C programmer access to tuning and firmware updates
In The Box
- Cobra 10 ESC
- 1412‑3200KV 5mm shaft sensored brushless motor
- Castle Link V4 USB Adapter
- 249mm Direct Connect sensor wire
- Castle decals
- ESC Quick Start Guide
Specifications
- Voltage range: 2S–6S LiPo (25.2V); 4S max with included 1412‑3200KV motor
- Motor type: 1412‑3200KV 5mm sensored
- Weight: 114g
- Dimensions (L×W×H): 55.9 × 38.3 × 36.5mm
Suggested Compatibility
- 2WD and 4x4 short course trucks, monster trucks and rock racers running up to 3S LiPo and weighing up to 2.95kg (6.5 lb)
- May be run on 4S LiPo with very conservative gearing and careful temperature monitoring
- High‑torque choice for lighter 1/10 2WD stadium trucks and buggies running up to 4S LiPo
Secured by Stripe
We're thrilled to introduce the Cobra 10, our next generation electronic speed controller (ESC) for surface applications.
The Cobra 10 boasts a state-of-the-art 32-bit, dual-core processor, ushering in a new era of precision and performance. Its enhanced data logging capabilities offer extended recording times, faster sampling rates, and a wealth of data points, enabling users to delve deeper into their vehicle's performance than ever before.
Crafted with a CNC aluminum bottom case, the Cobra 10 is engineered to endure the most rigorous conditions, ensuring reliability in every race or off-road adventure.
One of its defining features is our acclaimed CRYO-DRIVE technology, engineered to reduce operational temperatures, significantly prolonging the ESC's lifespan. Moreover, equipped with an impressive 8-amp BEC, the Cobra 10 can effortlessly power the most demanding servos, making it an indispensable ally in your high-performance setup.
Perfect for 2WD and 4x4 short course trucks, monster trucks and rock racers running up to 3s LiPo and weighing up to 2.95Kg (6.5 lbs); it can be run on a 4s LiPo with very conservative gearing and keep a close eye on temperatures. It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 4s LiPo.
In The Box
- Cobra 10 ESC
- 1412-3200kv 5mm shaft sensored brushless motor
- Castle Link V4 USB Adapter
- 249mm Direct Connect Sensor Wire
- Castle Decals
- ESC Quick Start Guide
- 32-Bit Processing power for smoother motor control and improved response time.
- Enhanced Data Logging includes:
- Double the maximum sample frequency of older generations.
- 8x increased logging time of older generations.
- Data point for ESC electrical motor timing.
- Data point for acceleration via onboard accelerometer.
- Looping feature prevents interruptions in data log recording.
- Ability to download specific sessions.
- Hill Hold feature
- Incredibly strong drag brake enhancement feature for rock crawling. Eliminates any creep or movement of the motor on an incline
- Additional tuning features include:
- Improved braking adjustability
- Separate brake and reverse curves
- Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
- Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
- Mounting holes located in bottom of aluminum case for installation into vehicle.
- Input Voltage Range 6.0v - 25.2v (2s - 6s LiPo); 4s max with included 1412-3200kv motor
- SmartSense, Sensored Only and Brushed Motor Operation Modes
- Powerful Integrated 8A Peak Adjustable BEC (5.0V - 8.0V)
- CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
- ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
- Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
- Oversized factory equipped thermally controlled 25mm cooling fan
- Waterproof design for all weather conditions
- Data logging capability to capture and record performance data from your vehicle
- Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
- Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
- Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
Castle's newest software technology, CRYO-DRIVE minimizes the amount of time the ESC's electrical components spend generating heat by optimally controlling which components are being used while driving the motor. This is happening thousands of times per second, which greatly reduces the rate at which the ESC heats up. This results in significantly improved thermal performance during partial throttle operation where the majority of driving occurs. Your setup will be able to handle higher gear ratios, in heavier vehicles, with longer runs.
When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR SmartSense software, enabled by default in the Castle Link Programming Suite, will use the motor's sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ULTRA-EFFICIENT sensorless mode with electric timing. Smooth sensored startups and high-efficiency sensorless running makes the COBRA 10 system produce more power and less heat. QUIETSENSE is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.
The COBRA 10 allows "on-the-fly" adjustments to be made through the AUX wire once enabled in Castle Link. Once you have selected an AUX wire function, that setting can then be tuned from your transmitter while driving. Torque control, max throttle, max brake and drag brake adjustments are a sampling of the available modes. This real-time tuning allows you to quickly and easily fine-tune your system.
The COBRA 10 contains NEW DATA LOGGING FEATURES:
- Double the maximum sample frequency of older generations.
- 8x increased logging time of older generations.
- Data point for ESC electrical motor timing.
- Data point for acceleration via onboard accelerometer.
- Looping feature prevents interruptions in data log recording.
For over 25 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters download the BRAND NEW simple to install software from the Castle Creations website and you are ready to personalize your controller's settings. Requires Windows 10 or higher.
The COBRA 10 is housed in a rugged CNC-machined aluminium case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.
COBRA 10 features Audible Alerts that will notify you, via audible chimes, of possible issues with calibrations and error conditions to help diagnose problems.
COBRA 10 6S MAX - 25.2V MAX - 8A PEAK BEC W/1412-3200 5MM KV Specifications
- Voltage Range: MIN: 2s LiPo, MAX: 6s LiPo (25.2 V) (4s max with included 1412-3200kv motor)
- Motor type: 1412-3200Kv 5mm Sensored Motor
- Weight: 114g
- Height: 36.5mm
- Length: 55.9mm
- Width: 38.3mm
Key Info:
- Brand: Castle Creations
- Part No: P-CC010-0174-14
- Barcode: 0819326013201
