Power HD 1812MG Waterproof Metal Geared Servo - 18kg - 0.12s
Brand: Power HD
Part No: HD-1812MG
In Stock: Usually ships same day

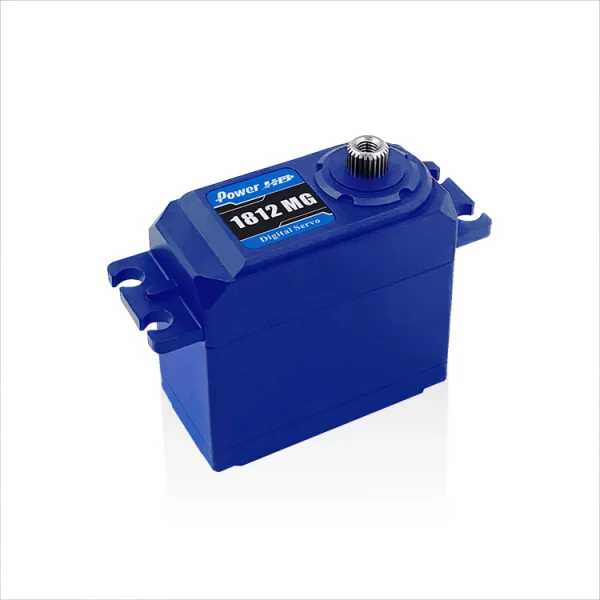

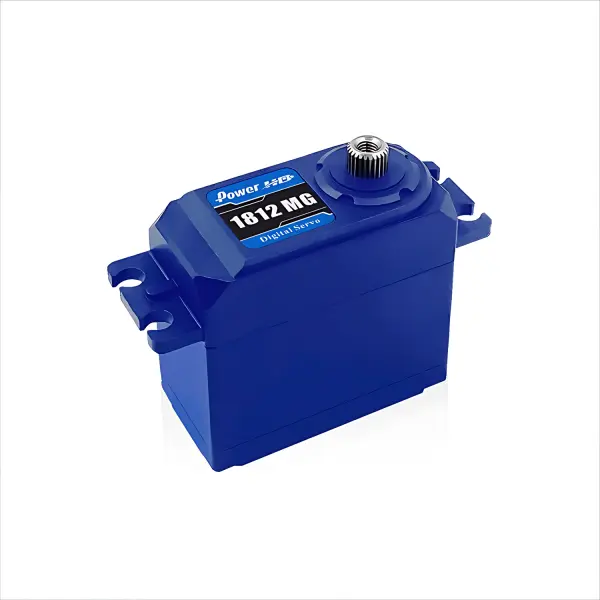

The Power HD 1812MG (HD-1812MG) is a waterproof, metal-geared RC servo offering a strong balance of torque and speed for demanding applications. Delivering up to 18kg-cm of torque at 6.0V with a swift 0.12s transit time, it pairs durable copper and aluminium gears with dual ball bearings and a dependable DC motor. Its 4.8–6.0V operating range and compact dimensions make it a versatile choice where reliable performance is essential.
Key Specifications
- Torque (4.8V): 16.0 kg-cm (222.2 oz-in)
- Torque (6.0V): 18.0 kg-cm (250.0 oz-in)
- Speed: 0.14s @ 4.8V | 0.12s @ 6.0V
- Operating Voltage: 4.8–6.0V DC
- Bearing Type: Dual ball bearings
- Motor Type: DC motor

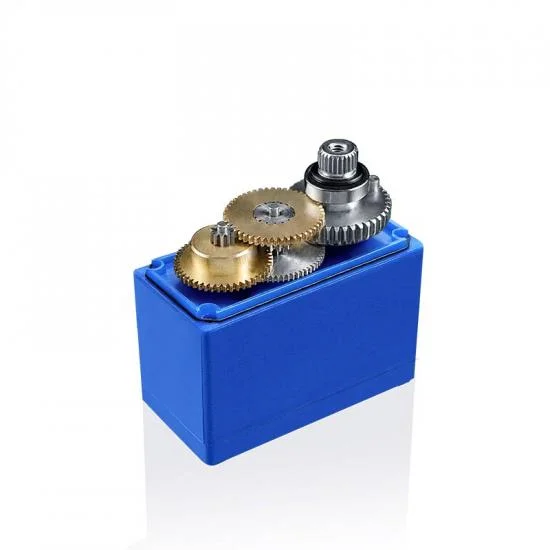

- Gear Material: Copper & aluminium
- Working Frequency: 1520μs / 333Hz
- Operating Temperature: -10°C to 60°C
- Size: 40.7 × 20.5 × 39.5 mm (1.60 × 0.81 × 1.56 in)
- Weight: 56.0 g (1.98 oz)
Secured by Stripe
- Torque(4.8V)：16.0 kg-cm / ( 222.2 oz/in)
- Torque(6.0V)：18.0 kg-cm / ( 250.0 oz/in)
- Speed：0.14 sec (4.8V)│0.12 sec (6.0V)
- Operating Voltage：4.8 ~ 6.0 DC Volts
- Weight： 56.0g (1.98 oz)
- Bearing Type：Ball Bearing x 2
- Motor Type：DC Motor
- Gear Type：Copper & Aluminum
- Size：40.7x20.5x39.5mm (1.60x0.81x1.56 in)
- Torque(4.8V)：16.0 kg-cm / ( 222.2 oz/in)
- Torque(6.0V)：18.0 kg-cm / ( 250.0 oz/in)
- Speed：0.14 sec (4.8V)│0.12 sec (6.0V)
- Operating Voltage：4.8 ~ 6.0 DC Volts
- Weight： 56.0g (1.98 oz)
- Bearing Type：Ball Bearing x 2
- Motor Type：DC Motor
- Gear Type：Copper & Aluminum
- Size：40.7x20.5x39.5mm (1.60x0.81x1.56 in)
Key Info:
- Brand: Power HD
- Part No: HD-1812MG
- Barcode: 6929130018126
- Max Voltage: 6v (NiMh)
- Gear Material: Metal
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
All seems well
Brought to replace rb10 standard servo
WRITE A REVIEW
Questions & Answers
No that will not fit this is a 1:10 scale servo the car is 1:14 scale
Yes it would.
Yes that would be a really good upgrade .
You could look at these ones - a bit faster and a good bit more torque than the 1812MG: ET2072
Yes that would be fine and will be a good upgrade.
Yes this will work in that car.
Yes this would be a good replacement servo
Yes it would be a good upgrade.
Yes this will work for you.
Yes that'll fit, they are standard size.
Just bear in mind these take a 25T horn so you may require a new horn
Yes that should work well
Yes
Yes that should fit as far as I'm aware
This would work, but could do with a little more torque in a car of this spec.
