Tamiya RS540 Sport Tuned Motor
Tamiya RS540 Sport Tuned Motor

Tamiya RS540 Sport Tuned Motor (23T) - HC-53068

Brand: Tamiya

Part No: HC-53068

£25.49 RRP £26.99

Usually ships same day

UK Delivery
Get it by Tuesday 8th Sep
Store Collection (Cannock)
Today (Order within 5h 49m)
Collect Instore

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

Fits These Models (92)

Show all 92 models

Frequently Bought With

Other items customers often buy with the Tamiya RS540 Sport Tuned Motor

Hobbywing Quicrun 1060 Brushed SBEC 60A ESC - Tamiya Connector Hobbywing Quicrun 1060 Brushed SBEC 60A ESC - Tamiya Connector
£22.49
Hobbywing Quicrun 1060 Brushed SBEC Waterproof 60A ESC - Deans Connector Hobbywing Quicrun 1060 Brushed SBEC Waterproof 60A ESC - Deans Connector
£22.49
Tamiya RS-540 Torque Tuned Motor 25T Tamiya RS-540 Torque Tuned Motor 25T
£13.42
MIP Super Ball Diff - Tamiya Blackfoot/ Monster Beetle #1621 MIP Super Ball Diff - Tamiya Blackfoot/ Monster Beetle #1621
£61.74
Fastrax Tamiya TT-02 Aluminium Main Driveshaft Fastrax Tamiya TT-02 Aluminium Main Driveshaft
£5.69
Voltz LiPo Charge Sack Bag - Medium 22cm x 18cm Voltz LiPo Charge Sack Bag - Medium 22cm x 18cm
£7.59
Power HD 1812MG Waterproof Metal Geared Servo - 18kg - 0.12s Power HD 1812MG Waterproof Metal Geared Servo - 18kg - 0.12s
£29.69
Fastrax Tamiya TT-02 Aluminium Steering Kit Fastrax Tamiya TT-02 Aluminium Steering Kit
£26.59
Fastrax Tamiya TT-02 Aluminium Oil Shock Absorber Set (4) Fastrax Tamiya TT-02 Aluminium Oil Shock Absorber Set (4)
£28.49
Kyosho Syncro KT231P Transmitter + KR331 Receiver Kyosho Syncro KT231P Transmitter + KR331 Receiver
£41.35
Tamiya Lexan Spray Paint - PS-5 Black Tamiya Lexan Spray Paint - PS-5 Black
£6.89
Tamiya CVA Short Shock II Tamiya CVA Short Shock II
£22.37

Description

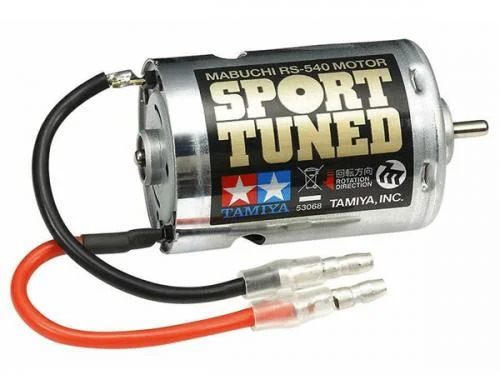

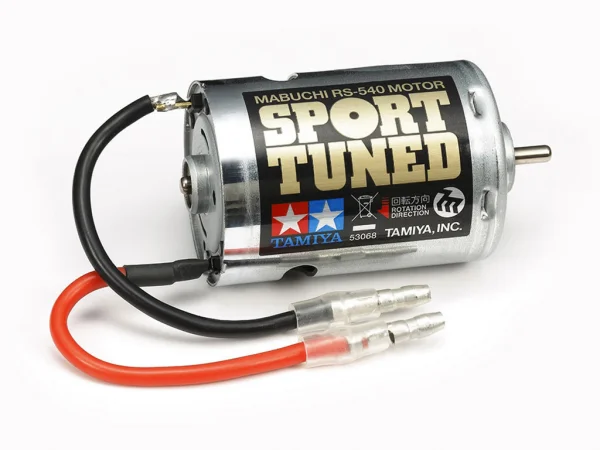

The Tamiya RS540 Sport Tuned Motor (HC-53068) is a tuned 23-turn motor engineered to increase model speed. Operating on 6–8.4V, it delivers up to 18,300 RPM and 350 g-cm of torque at 7.2V, providing a practical performance uplift when you want more pace within your model’s specification.

Key Specifications

  • Input voltage: 6–8.4V
  • Maximum RPM: 18,300 (at 7.2V)
  • Maximum torque: 350 g-cm (at 7.2V)
  • Turns: 23T

Important Notes

  • Tamiya recommends employing full ball bearings when using this motor.
  • For suggested compatibility with specific chassis, consult the official Tamiya R/C Parts Matching List.
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Tamiya RS540 Sport Tuned Motor Manuals & Guides

How-To Guides & Articles

Specifications


- This is a tuned motor that promises greater model speed.
- Always employ full ball bearings on your model if using this motor.
- Input voltage: 6-8.4V
- Maximum torque: 350g-cm (at 7.2V)
- Maximum RPM: 18,300 (at 7.2V)
- 23T

*The official Tamiya R/C Parts Matching List has plenty of information regarding chassis compatible with Tamiya Spare and Hop-Up Option parts.



Key Info:
  • Brand: Tamiya
  • Part No: HC-53068
  • Barcode: 4950344530687
  • Fitment: Option Part
  • Fitment: Standard Part

Additional Categories:

Delivery & Returns

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Customer Reviews

No specific product reviews yet, why not write one?
Write a Review
All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?
Hi would a tamiya sport tuned motor work on a Hobbywing Quicrun 1060 60a esc? Thanks
James Brookes / 24th November 2025

Yes that will work for you.



Si @ Wheelspin Models
I believe these were an optional accessory on the mk1 clod buster. I have owned two early clod busters, my original one was circa 1990 and the one I currently own is a 1987 model. From recollection, the 1990 car featured the sport tuned motors in the build manual, but this upgrade is not included in the option list in the 1987 build manual or on the 'hop-up' parts list on the box. I just thought I'd check in case there were either structural or component changes on the later cars that permitted the use of the upgraded motors...? It's a classic piece and evidently do not want to over stress the old girl, but at the same time would like to get it up to period 'top specification'. I look forward to hearing from you. Many thanks.
Ben Appleby / 16th October 2024

If you are going with a higher lower turn motor you may damage the internal gears , the esc will need to be rated for the motor you wish to use but with classics we could not say how long gears would last.

Steve @ Wheelspin Models
Will this be a straight swop for the maverick quantum motor or will it require other upgrades?
Matt / 23rd September 2023

Yes this will fit that car.



Si @ Wheelspin Models
Tamiya RS540 Sport Tuned Motor BRAND: TAMIYA PART NUMBER: HC-53068 Is this motor compatible with the new BBX car? And this speed controller.... Hobbywing Quicrun 1060 Brushed SBEC 60A ESC - Tamiya Connector BRAND: HOBBYWING PART NUMBER: HW30120201
Andy Loges / 5th September 2023

Yes that will work mfine.

Steve @ Wheelspin Models
Will I need any other gears to fit to the 540 sport tuned engine in a grasshopper or will the existing cogs fit this motor? Thanks
Kevin / 4th May 2023

The existing pinion gear will fit the tuned motor.

Steve @ Wheelspin Models
It's hard to tell the difference between the motor models. - 1) Would this fit a Tamiya 'Dark Impact' buggy? 2) Is it much faster than the "CORE 15T Silver Can Brushed 540 Motor" that I think I received in my recent 'Dark Impact - Bundle' purchased from you a few weeks ago?
James Austin / 18th June 2022

This would fit that car but would be slowwer than the Core 15t motor that you have

Si @ Wheelspin Models
Hi, What the fastest motor to put in a Tamiya Lunchbox 1.2 with standard esc. Regards
Joshua Lown / 1st May 2022

On the standard ESC they would normally go down to the 23t sport tuned motor.

Si @ Wheelspin Models
Would x2 of these work straight out the box on my Super Clod, with out motor timing issues ? Running the 880 hobbywing already , thanks
Ashley Bayford / 23rd April 2022

Yes, these should work for you.

Si @ Wheelspin Models
Hi is this the motor that comes with the tt02d and if so what ESC should I pair this motor with?
Customer / 26th June 2021

I'd use a Hobby wing 1060 brushed

Anthony @ Wheelspin Models
Hi, im thinking of upgrading my clod buster motors to the RS540 sport tuned 23T. Which ECS would be best to run with these? Thanks
Scott / 25th March 2021

If running dual motors the HW30120301 would work well

Ben @ Wheelspin Models
Hi, would this be compatible with WL toys 124019? Thanks
Sanjit Bhangu / 26th February 2021

Afraid not a mode l'm familiar with - but if it takes standard 540 motors then yes this should work fine..

Ben @ Wheelspin Models
Hi, is this compatible with 2015 Monster Beetle?
Saad / 5th February 2021

Yes that should fit in there

Ben @ Wheelspin Models
How many T is this motor ?
James / 13th April 2019

These are 23T

Ben @ Wheelspin Models
Hi there I need a new motor for my much loved Blitzer beetle had for many years now would this brushed Tamiya motor be ok too use .
Tom / 9th April 2019

Yes, that will fit - it's standard 540 size.

Ben @ Wheelspin Models
