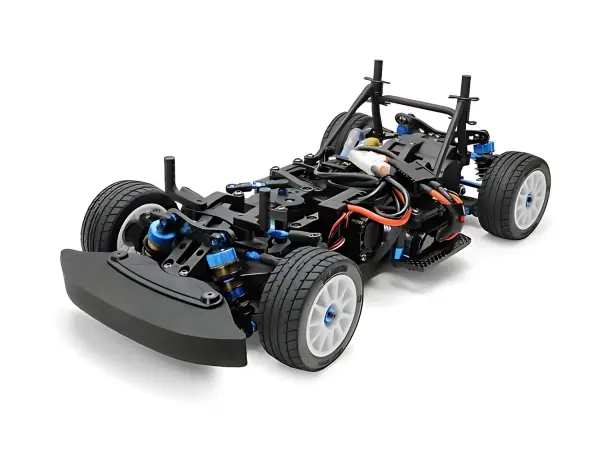

Tamiya M-08R Chassis Kit (1/10 RWD) HC-47480
Brand: Tamiya
Part No: HC-47480
In Stock: Usually ships same day
Finance options available at checkout.
Save with a Combo Package
Our recommended kit, bundled at a combined priceAdd a radio system, steering servo, batteries and charger to your new model. Note, you may also wish to choose some bodyshell paint from our range.
1× eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
1× EP Super Duty 3000mAh NiMh Stick Pack - 7.2v - Tamiya Connector
1× Power HD 1812MG Waterproof Metal Geared Servo - 18kg - 0.12s
1× Team Orion IQ801 1 AMP NiMh Charger With Deans to Tamiya Adapter
Add a better specification radio system, steering servo, higher capacity battery and fast charger to your new Tamiya model. Note, you may also wish to choose some bodyshell paint from our range.
2× HPI Plazma 1.5V Alkaline AA Battery (4Pcs)- 1× eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
1× Voltz 5300mAh NiMh Stick Pack - 7.2v - Tamiya Connector
1× eTronix Power Pal Peak Detect NiMh Fast Charger - Mains/12v Input
1× Savox SW0231MG+ Waterproof Metal Gear Digital Servo - 15kg - 0.17s
Frequently Bought With
Other items customers often buy with the Tamiya M-08R Chassis Kit
Description

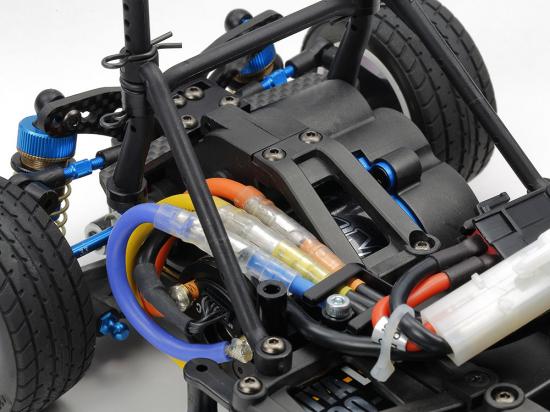

The Tamiya M-08R Chassis Kit elevates the balanced, compact M-08 Concept platform to race-ready specification. This rear-wheel drive, midship-motor 1:10 M-Chassis arrives with a host of hop-up parts for sharper response, durability and easier fine-tuning. A ball differential teams with low-friction universal shafts, lightweight aluminium swing shafts and clamp-type hubs for a refined drivetrain, while carbon fibre damper stays and M-Chassis big bore aluminium dampers+ deliver composed handling. Hex hardware, blue aluminium accents and a 20g balance weight complete a premium kit. Part number HC-47480.
Featured Drivetrain Components
- Full ball bearings
- Ball differential (52T)
- 33mm lightweight aluminium swing shafts
- Cross joint for LF assembly type universal shafts
- 06 module fluorine coated 20T pinion gear
- M-08 Concept aluminium shafts
- M-Chassis reinforced freewheel axles
- 5mm clamp-type wheel hubs
Suspension & Handling
- Carbon fibre damper stays (front/rear)
- Reinforced D parts (suspension arms)
- Aluminium turnbuckle shafts
- Titanium coated suspension shafts
- 5x5mm, 5x11mm hard hex head ball connectors

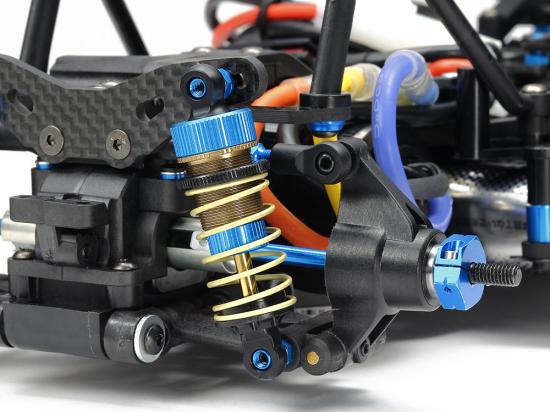

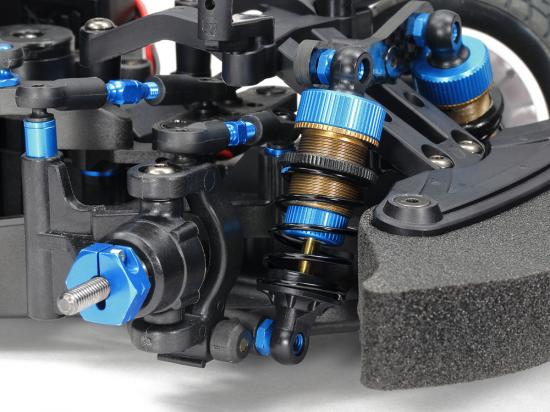

- M-Chassis big bore aluminium dampers+
- 3x 1.3mm-hole pistons
- 4mm aluminium serrated wheel nuts (blue)
- 5mm reinforced open face adjusters
Chassis

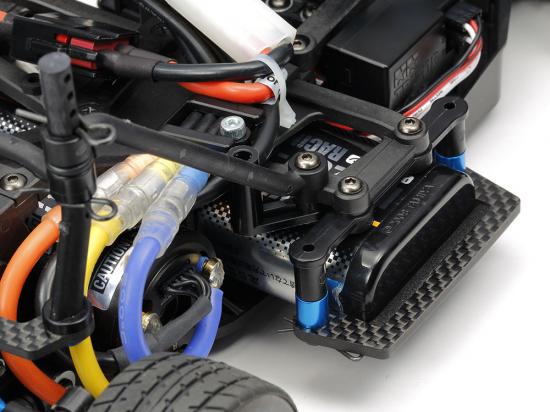

- Carbon fibre battery holder
- Carbon fibre body mount base
- Reinforced K parts (gearbox)
- Chassis balance weight (20g)
- Hi-torque servo saver
- Aluminium ball connectors (blue)
- Hex head screws
Specifications
- Scale: 1:10
- Length: 319mm (with 225mm wheelbase), width: 165mm
- Alterable wheelbase: 210mm, 225mm, 239mm
- Monocoque frame with separate front and rear sections
- Midship motor, rear-wheel drive
- Ball differential
- 3-piece steering tie-rod
- 4-wheel double wishbone suspension
- M-Chassis big bore aluminium dampers+
- Gear ratio = 5.776:1 (using kit 20T pinion); 8 ratios between 6.795:1 and 4.813:1 are possible with separately sold pinions
- Electronic speed controller (ESC) is sold separately.
Separately Required Items
- Body
- Type 540 motor (brushless is recommended)
- Tyres
- 2-channel R/C system w/ESC
- R6/AA/UM3 batteries for transmitter
- Battery pack & charger
Secured by Stripe
Tamiya M-08R Chassis Kit Manuals & Guides
Manuals & Guides
How-To Guides & Articles
Specifications
The M-08R adds a plethora of race-spec parts to the balanced, compact RWD M-08 Concept chassis: an example being the hopped-up drivetrain with a ball differential, universal shafts featuring low-friction cross joints and lightweight aluminium swing shafts, plus 5mm wheel hubs. Turnbuckle shaft suspension arm and steering setup components simplify fine-tuning of the M-08R, and titanium-coated shafts are a durable inclusion in the kit. Carbon fibre damper stays are paired with M-Chassis big bore aluminium dampers+ featuring dedicated blue anodized top and bottom caps for a touch of class, while a 20-gram ballast weight is included to get the chassis feeling just how you want it to.
Featured Drivetrain Components:
- Full ball bearings
- Ball differential (52T)
- 33mm lightweight aluminium swing shafts
- Cross joint for LF assembly type universal shafts
- 06 module fluorine coated 20T pinion gear
- M-08 Concept aluminium shafts
- M-Chassis reinforced freewheel axles
- 5mm clamp-type wheel hubs
- Suspension
- Carbon fibre damper stays (front/rear)
- Reinforced D parts (suspension arms)
- Aluminium turnbuckle shafts
- Titanium coated suspension shafts
- 5x5mm, 5x11mm hard hex head ball connectors
- M-Chassis big bore aluminium dampers+
- 3x 1.3mm-hole pistons
- 4mm aluminium serrated wheel nuts (blue)
- 5mm reinforced open face adjusters
Chassis
- Carbon fibre battery holder
- Carbon fibre body mount base
- Reinforced K parts (gearbox)
- Chassis balance weight (20g)
- Hi-torque servo saver
- Aluminium ball connectors (blue)
- Hex head screws
Specifications
- Scale is 1:10
- Length: 319mm (with 225mm wheelbase), width: 165mm
- Alterable wheelbase: 210mm, 225mm, 239mm
- Monocoque frame with separate front and rear sections
- Midship motor, rear-wheel drive
- Ball differential
- 3-piece steering tie-rod
- 4-wheel double wishbone suspension
- M-Chassis big bore aluminium dampers+
- Gear ratio = 5.776:1 (using kit 20T pinion); 8 ratios between 6.795:1 and 4.813:1 are possible with separately sold pinions)
- Electronic speed controller (ESC) is sold separately.
Separately Required Items
- Body
- Type 540 motor (brushless is recommended)
- Tyres
- 2-channel R/C system w/ESC
- R6/AA/UM3 batteries for transmitter
- Battery pack & charger
Key Info:
- Brand: Tamiya
- Part No: HC-47480
- Barcode: 4950344474806
- Scale: 1:10
- Power Source: Electric - No Motor
- Surface Type: On Road
- Vehicle Type: Touring / Rally Car
- Build Level: Unassembled (Kit)
