Tamiya Toyota Supra (TT-02D)

Brand: Tamiya

Part No: HC-58613

£164.65 RRP £185.00

Shadow Stock: Usually ships next day

Collect Instore

Add a radio system, steering servo, batteries and charger to your new model. Note, you may also wish to choose some bodyshell paint from our range.

1 x eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
ET1060
1 x EP Super Duty 3000mAh NiMh Stick Pack - 7.2v - Tamiya Connector
SCH-EP3000S
1 x Power HD 1812MG Waterproof Metal Geared Servo - 18kg - 0.12s
HD-1812MG
1 x Team Orion IQ801 1 AMP NiMh Charger With Deans to Tamiya Adapter
ORI30198DNS

Saves £29.74 over RRP

Add a better specification radio system, steering servo, higher capacity battery and fast charger to your new Tamiya model. Note, you may also wish to choose some bodyshell paint from our range.

2 x HPI Plazma 1.5V Alkaline AA Battery (4Pcs)
HPI-101939
1 x eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
ET1060
1 x Voltz 5300mAh NiMh Stick Pack - 7.2v - Tamiya Connector
VZ0025
1 x eTronix Power Pal Peak Detect NiMh Fast Charger - Mains/12v Input
ET0208
1 x Savox SW0231MG+ Waterproof Metal Gear Digital Servo - 15kg - 0.17s
SAV-SW0231MG+

Saves £35.53 over RRP

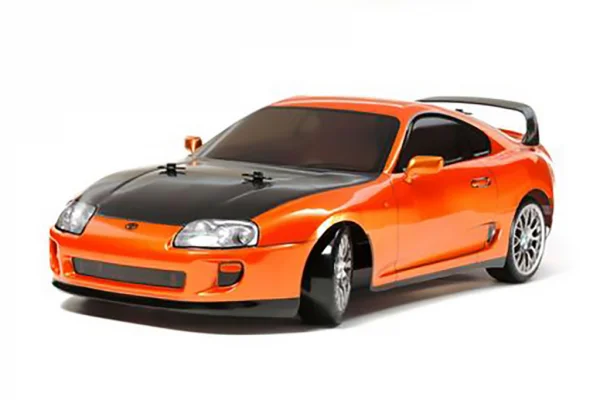

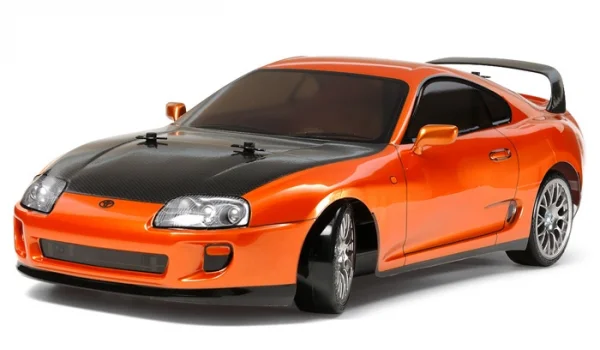

The Tamiya Toyota Supra (TT-02D) captures the smooth, race-proven lines of the iconic Supra in durable polycarbonate, complemented by separately moulded side mirrors and rear wing. A carbon pattern decal sheet is included to add a custom look to the bonnet and wing.

Beneath the body sits Tamiya’s TT-02D drift-spec chassis, tuned for controllable slides while retaining the TT-02 platform’s renowned drivability, easy maintenance and adaptability. Drift tyres on matte-finish metal-plated wheels, CVA oil shocks and a Type 540 Sport-Tuned motor come as standard, along with full ball bearings and an aluminium motor heat sink.

TT-02D Drift Chassis Highlights

  • 24 mm-width drift tyres mounted on matte-finish metal-plated wheels

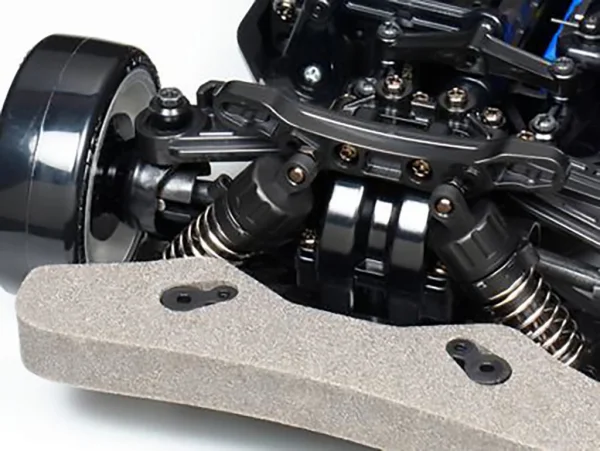

  • CVA oil dampers on 4-wheel double wishbone suspension

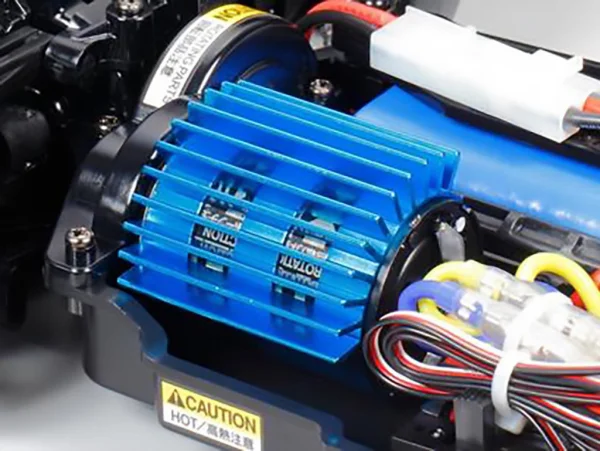

  • Full ball bearings and aluminium motor heat sink
  • Type 540 Sport-Tuned motor included
  • Retains TT-02 drivability, easy maintenance and adaptability

Specifications

  • Scale: 1/10 R/C kit
  • Length: 457 mm; Width: 186 mm; Height: 125 mm
  • Wheelbase: 257 mm
  • Tyre width/diameter (front & rear): 24 / 63 mm
  • Bathtub-type frame; shaft-driven 4WD
  • Front/rear 4-bevel resin differentials
  • Steering tie-rod assembly
  • Front/rear CVA oil shocks
  • Gear ratio: 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 with separately sold pinion)
  • Full ball bearings
  • Electronic Speed Controller (ESC) sold separately

What’s Included

  • Polycarbonate Toyota Supra body with separate side mirrors and rear wing
  • Carbon pattern decal sheet for bonnet and rear wing
  • TT-02D shaft-driven 4WD chassis with drift tyres and metal-plated wheels
  • Full ball bearings, aluminium motor heat sink and Type 540 Sport-Tuned motor

Required To Complete

  • 2-channel R/C unit with ESC
  • Battery pack and compatible charger
  • Six AA (UM3) batteries for the transmitter

Supra Trooper
The smooth-running Toyota Supra enjoys excellent popularity, and has seen significant success in the racing arena. This 1/10 R/C kit recreates the Supra on a thrilling drift chassis unit. The body of the model accurately depicts the Supra form in polycarbonate, with side mirrors and rear wing recreated using separate parts. An extra bonus comes with the carbon pattern decal sheet, which is included to give a further air of customization to the bonnet and rear wing. So let's get drifting!

Adaptable & Balanced TT-02 Chassis Drift Version
Enjoy the thrill of drifting with this specially tuned drift spec version of the TT-02 chassis. The chassis also features drift spec parts such as 24mm width drift tires (fitted to stylish matte-finish metal-plated wheels), and CVA shock units on the 4-wheel double wishbone suspension. Full ball bearings, an aluminum motor heat sink, and a sport-tuned motor come as standard. Of course, the chassis retains the original TT-02's excellent drivability, ease of maintenance, and adaptability.

Specifications
笳臭ength: 457mm, Width: 186mm, Height: 125mm 笳集heelbase: 257mm縲笳週ire Width/Diameter (Front & Rear): 24/63mm 笳州athtub-type Frame 笳輯haft Driven 4WD 笳洲ront/Rear 4-Bevel Resin Differentials 笳-Piece Steering Tie-Rod 笳-Wheel Double Wishbone Suspension 笳洲ront/Rear CVA Oil Shocks 笳秀ear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinion) 笳週ype 540 Sport-Tuned Motor 笳洲ull Ball Bearings 笳拾lectronic Speed Controller (ESC) is sold separately.

Separately Required Items
笳-Channel R/C Unit with ESC縲笳州attery Pack & Charger 笳蹴6/AA/UM3 batteries for transmitter



Key Info:
  • Brand: Tamiya
  • Part No: HC-58613
  • Barcode: 4950344065592
  • Scale: 1:10
  • Vehicle Type: Drift Car
  • Power Source: Electric - Brushed
  • Surface Type: On Road
  • Build Level: Unassembled (Kit)
