Hobbywing Quicrun 1060 Brushed SBEC 60A ESC - Tamiya Connector
Hobbywing Quicrun 1060 Brushed SBEC 60A ESC - Tamiya Connector
Hobbywing Quicrun 1060 Brushed SBEC 60A ESC - Tamiya Connector
Hobbywing Quicrun 1060 Brushed SBEC 60A ESC - Tamiya Connector
Hobbywing Quicrun 1060 Brushed SBEC 60A ESC - Tamiya Connector
Hobbywing Quicrun 1060 Brushed SBEC 60A ESC - Tamiya Connector
Hobbywing Quicrun 1060 Brushed SBEC 60A ESC - Tamiya Connector
Hobbywing Quicrun 1060 Brushed SBEC 60A ESC - Tamiya Connector

Hobbywing Quicrun 1060 Brushed SBEC 60A ESC - Tamiya Connector

Brand: Hobbywing

Part No: HW30120201

£22.49 RRP £24.99

In Stock: Usually ships same day

Collect Instore

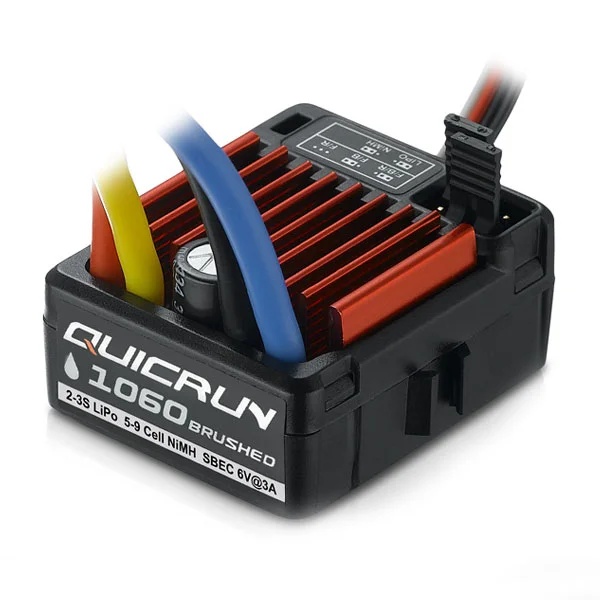

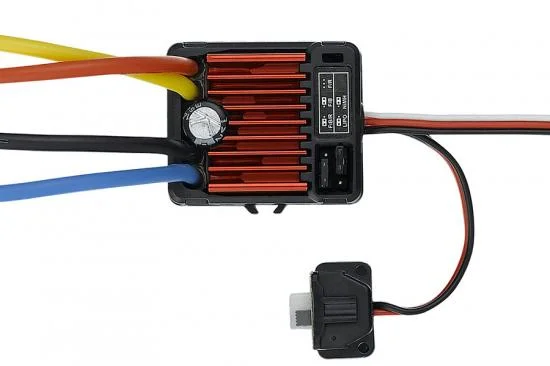

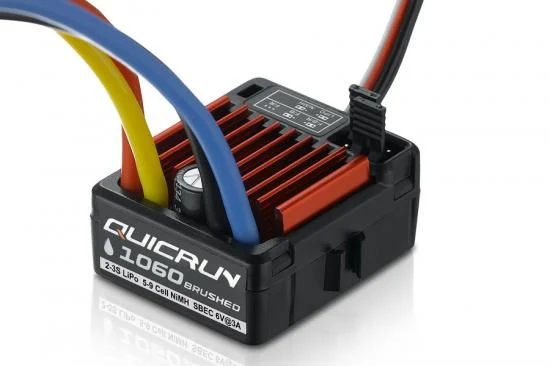

HOBBYWING QUICRUN 1060 BRUSHED SBEC ESC (60A)

The QuicRun WP 1060 is specially designed for new beginners and intermediate modelers. This speed controller is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers and tanks.

Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.

The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

HobbyWing QuicRun WP 1060 Features:

  • High Reliability & Durability
  • Easy to Use
  • Great Flexibility & Versatility
  • Applicable to All Weather Conditions

Spec Check:

  • Motor Limit: 12T at 7.4v
  • Scale: 1/10th
  • Brushed
  • Waterproof: Yes
  • Cont./Peak Current: 60A/360A
  • Input: 2-3S LiPo/6-9 Cells NiMH
  • BEC Output: Linear Mode:6V/3A
  • Input Wires: Red-16AWG-100mm*1/Black-16AWG-100mm*1
  • Output Wires: Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1
  • Input Connectors: Big-sized TAMIYA Connector
  • Output Connecotors: 4.0 Bullet Connectors (Female)
  • Size: 35.5x32.18x18.0mm
  • Weight: 39g



  • Brand: Hobbywing
  • Part No: HW30120201
  • Barcode: 6938994413084
  • Motor Type: Brushed
  • LiPo Compatible: Yes
Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews
5/5 (3 reviews)
23rd May 2020

Ordered one of these ESC's after hearing good reviews about them and was impressed by the quality and the fact that my motor is so much quicker and responsive now, so had to get more to replace the previous ESC's I had

29th September 2022

Tried a few of the lower price point Brushed ESC's. Some burned out quick, some had safety issues, some didn't deliver the power stated by a long way. I tried these quick runs and have since bought 7 to replace all the ones I had, plus two 880 models for duel motor control. They are fantastic, I am using them outside of their design parameters and they are working just fine and dandy, no issues after 2 months of hammering.

17th September 2024

has worked great for over 4 years with no faults whatsoever would 100% recommend for anyone wanting to make a rc with batteries up to 3s

WRITE A REVIEW
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
Is it prograble?
Roger / 8th September 2024

I'm afraid not - it just has the standard jumper connectors for lipo/nimh mode, or turning off reverse.

Rich @ Wheelspin Models
Will this run a super stock BZ?
Rob S / 14th October 2023

Yes that will work fine.

Steve @ Wheelspin Models
Hi, i have a ftx banzai will this be ok to run in my banzai drift?
Amir / 19th May 2023

Yes that would be perfect .

Steve @ Wheelspin Models
Hello What is the min and max voltage this esc can accept thanks.
Daniel / 15th May 2023

Input voltage: 2-3S LiPo / 6-9 Cells NiMH

Si @ Wheelspin Models
I'm looking to replace a msc on my old Tamiya Super Hornet, I am looking at at ESC and have a Acoms receiver which looks like it needs a battery input, could you advise on which ESC would be suitable or if I need a new receiver? Many thanks
George / 28th December 2022

You could use this esc but you would need a more modern receiver which takes the power from the esc.

Steve @ Wheelspin Models
Will this work with 3s 11.1 lipo
Wayne / 7th December 2022

Depending on the motor it will if the motor is under 4000kv .

Steve @ Wheelspin Models
Is there a max rpm for 12t motor with this esc?
Phil / 29th November 2022

Yes this will have a max limit of 30,000rpm

Si @ Wheelspin Models
Does this have reversing, a brake and work with a 12volt lead acid battery
David Bradley / 18th October 2022

Yes this has reverse and brake but will only operate on

  •  2-3S LiPo/6-9 Cells NiMH
Steve W @ Wheelspin Models
Hi, can I use Tamiya Female to Traxxas Male Charger Adaptor BRAND: FUSION PART NUMBER: O-FS-TAM/TRX with this so I can use my Traxxas ID batteries? Thanks.
Andrew Campbell / 4th July 2022

Yes that would work for you.

Si @ Wheelspin Models
Does this esc do forward and reverse,thanks
Brian Tee / 7th May 2022

Yes it does.

Steve W @ Wheelspin Models
Will this esc run a tamiya rz motor?
James Doodson / 8th April 2022

Yes it will.

Steve W @ Wheelspin Models
Which fan should I use on the 1060? Thanks
Mark Saville / 7th February 2021

These wouldn't normally need a fan in most conditions - but any fan aimed at it would help airflow

Ben @ Wheelspin Models
Hobbywing Quicrun 1060 Brushed SBEC 60A ESC Hi is this a good upgrade for my stock ftx Kanyon and can I fit xt30 connector ok? Thanks
Simon Hill / 30th January 2021

Yes that should work fine in there. And yes you can fit whichever connector you like

Ben @ Wheelspin Models
Would this work with an RS-540 Sport Tuned motor - 23 Turns, 7.2V?
Oliver Maynard / 13th September 2020

Yes that should work fine

Ben @ Wheelspin Models
Does this unit have a built in alarm or cutoff for when using Lipo batteries with a brushed motor?
Matt Friend / 1st September 2020

Yes these have a lipo cutoff

Ben @ Wheelspin Models
Is there a fan available for this? If so which one?
Jason / 5th April 2020

These don't have a fan port, and as they're only a basic ESC, we don't usually run a fan on these.

Ben @ Wheelspin Models
Would this work on the standard 550 15T ftx carnage motor
Matt / 30th January 2020

Yes that should work fine

Ben @ Wheelspin Models
Can this be used with a tamiya 8.4v vintage battery?
Carlos / 15th November 2019

Yes it can as it will handle upto 9 cell Nimh batteries.

Anthony @ Wheelspin Models
Should this work ok with a traxxas 21t 550 brushed motor . Struggling at low speed under load
Brent Owen / 17th March 2019

Yes, that should work with that motor. As ever, check your gearing and temperatures accordingly.

Ben @ Wheelspin Models
Will this work with a 27turn bushed motor in a monster truck?
Elliott Handley / 8th January 2019

Yes, that should work fine.

Ben @ Wheelspin Models
Hi Would this be ok to use with RC4WD 540 Crawler Brushed Motor 55T PART NUMBER: Z-E0003. If not, could you please recommend a similar priced ESC that would work with the motor. Many thanks. Dave
Dave / 3rd November 2018

Yes, that would work fine with that motor.

You may however want to look at a specific crawler ESC such as HW30112750 for more crawler specific features.

Ben @ Wheelspin Models
I am looking to replace the combined ESC and radio on a Ripmax Jackal, I am happy I will need to do some 'modifications' to make everything fit, and very capable of doing this. Re: ESC 1625 (which you have no stock of) or 1060 (is there an issue of using a bigger ESC?)? unsure...
Mark Ferris / 12th August 2018

HW30120000 is rated at 25 amps, this 1060 is rated at 60 amps.  There's no harm in using a bigger ESC, as they will only supply what the motor is drawing.  Provided you can fit the larger model in your chassis it will be fine.

Ben @ Wheelspin Models
Hi, will this esc work with a 13T motor and 7.2v battery?
Philip / 4th August 2018

Yes, that should be fine.

Ben @ Wheelspin Models
is it easy to fit to an ftx mauler brushed?
Stephen Haworth / 12th July 2018

Yes, should be a simple plug and play job.

Ben @ Wheelspin Models
what t motor can it handle
Sean Mcgowan / 24th June 2018

Motor limit:

  • 2S LiPo: 12T
  • 3S LiPo: 18T
Ben @ Wheelspin Models
Hi, I have an 18turn brushed motor and 3300amh 7.2v nicads, will this cope with this?
Darren Lane / 14th June 2018

Yes, that should be fine.

Ben @ Wheelspin Models
