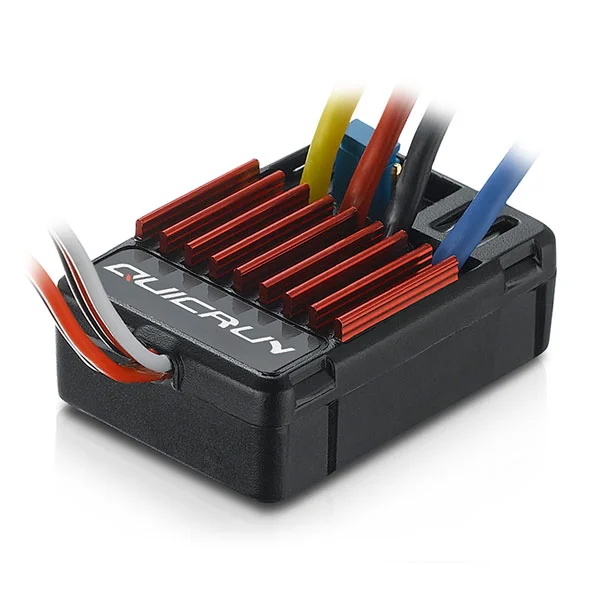

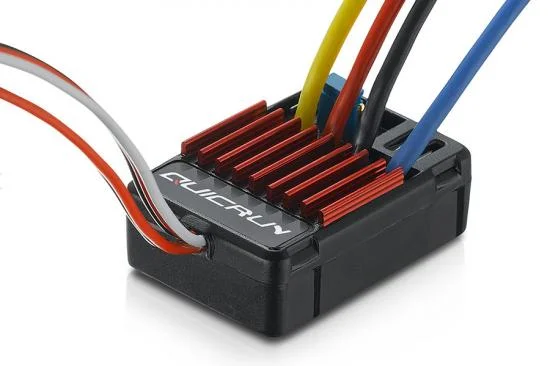

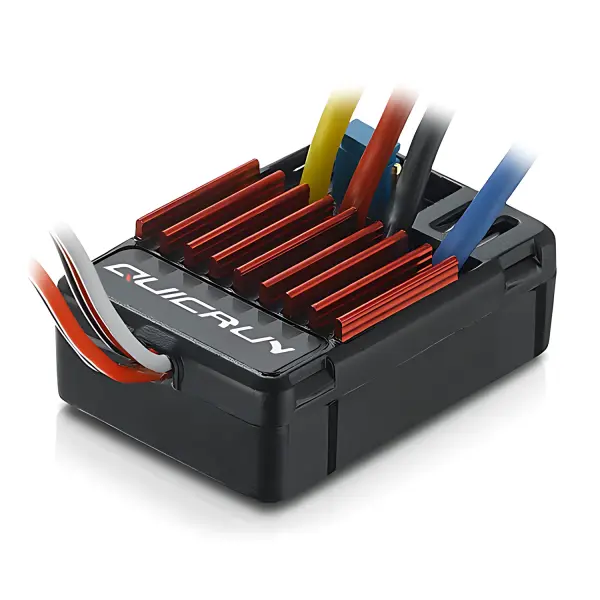

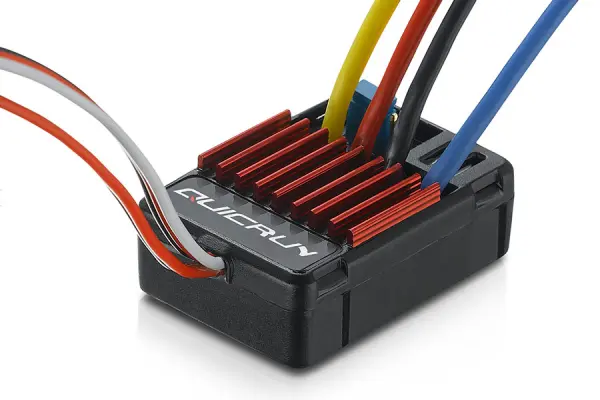

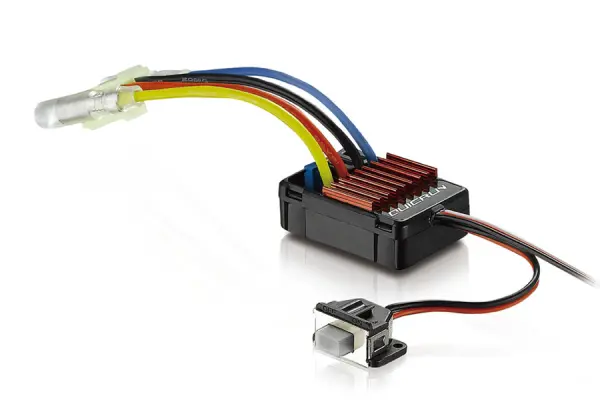

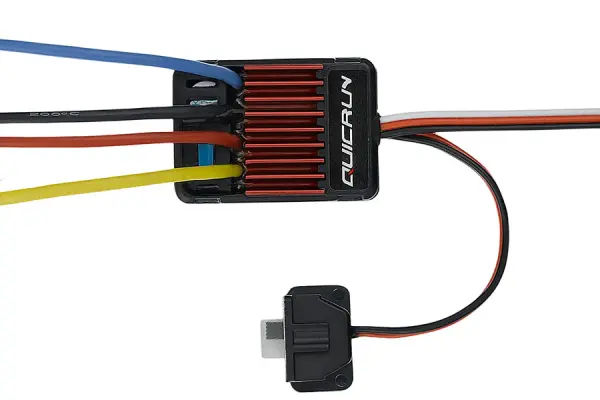

Hobbywing QUICRUN 1625 25A Waterproof Mini Brushed ESC
Brand: Hobbywing
Part No: HW30120000
Shadow Stock: Usually ships next day
The Hobbywing QuicRun 1625 Waterproof Mini Brushed ESC (HW30120000) is a compact, reliable electronic speed controller for smaller RC models. Designed with beginners and intermediate drivers in mind, it offers auto throttle calibration and simple parameter setup via jump caps. Robust hardware and advanced software deliver strong output with built-in overload protection, while its waterproof and dust-proof construction enables confident, all-weather running.
Features
- High Reliability & Durability
- Easy to Use
- Great Flexibility & Versatility
- Applicable to All Weather Conditions
Specifications
- Scale: 1/16th–1/18th
- Motor Type: Brushed
- Waterproof: Yes
- Continuous/Peak Current: 25A / 100A
- Input: 2–3S LiPo or 6–9 cells NiMH
- BEC Output: Linear 5V / 1A
- Input Wires: Red 18AWG 75mm ×1 / Black 18AWG 75mm ×1
- Output Wires: Blue 18AWG 75mm ×1 / Yellow 18AWG 75mm ×1
- Input Connector: Small-sized TAMIYA Connector
- Output Connectors: 4.0 mm Bullet Connectors (Female)
- Size: 34.0 × 24.0 × 14.0 mm
- Weight: 24 g
Suggested Compatibility
- 1/16th and 1/18th touring cars
- 1/16th and 1/18th buggies
- 1/16th and 1/18th monster trucks
- 1/16th and 1/18th trucks
Secured by Stripe
HOBBYWING QUICRUN 1625 BRUSHED ESC SPEED CONTROLLER
The QuicRun WP 1625 is specially designed for new beginners and intermediate modelers. This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners. This ESC is designed for 1/16th, 1/18th scale touring cars, buggies, monster trucks and trucks.
Reliable hardware combined with advanced software technology allows the QUICRUN WP-1625 Brushed to not only provide high power output but also overload protection of the ESC circuit.
The waterproof and dust-proof design allows the QUICRUN WP-1625 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
HobbyWing QuicRun WP 1625 Features:
- High Reliability & Durability
- Easy to Use
- Great Flexibility & Versatility
- Applicable to All Weather Conditions
Spec Check:
- Scale: 1/16th?1/18th
- Brushed/Brushless:BR
- Waterproof: Yes
- Cont./Peak Current: 25A/100A
- Input: 2-3S LiPo/6-9 Cells NiMH
- BEC Output: Linear Mode:5V/1A
- Input Wires: Red-18AWG-75mm*1/Black-18AWG-75mm*1
- Output Wires: Blue-18AWG-75mm*1/Yellow-18AWG-75mm*1
- Input Connectors: Small-sized TAMIYA Connector
- Output Connecotors: 4.0 Bullet Connectors (Female)
- Size: 34.0x24.0x14.0mm
- Weight: 24g
Key Info:
- Brand: Hobbywing
- Part No: HW30120000
- Barcode: 6938994413039
- Motor Type: Brushed
- LiPo Compatible: Yes
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
Great little ESC! I actually use this to power the winch on my crawler. I disconnected the red wire from the receiver plug so it doesn't also power the truck receiver (along with the truck ESC). Then plug the receiver cable into a spare channel on your receiver and you can control your winch from your radio (use your end point adjustments to limit the voltage to the ESC to limit the speed of your winch).
Works perfectly in my 1:24 crawler
WRITE A REVIEW
Questions & Answers
Yes this should work for you
No, very sorry this is a forward/brake/reverse ESC only
Sure, you can remove the connector and fit whatever connector you wish
Input is listed as 6-9 NiMh Cells, so I'd say no
