Tamiya TT-02 Type-S 4WD Chassis Kit - HC-58600
Brand: Tamiya
Part No: HC-58600
In Stock: Usually ships same day
Finance options available at checkout.
Save with a Combo Package
Our recommended kit, bundled at a combined priceAdd a radio system, steering servo, batteries and charger to your new model. Note, you may also wish to choose some bodyshell paint from our range.
1× eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
1× EP Super Duty 3000mAh NiMh Stick Pack - 7.2v - Tamiya Connector
1× Power HD 1812MG Waterproof Metal Geared Servo - 18kg - 0.12s
1× Team Orion IQ801 1 AMP NiMh Charger With Deans to Tamiya Adapter
Add a better specification radio system, steering servo, higher capacity battery and fast charger to your new Tamiya model. Note, you may also wish to choose some bodyshell paint from our range.
2× HPI Plazma 1.5V Alkaline AA Battery (4Pcs)- 1× eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
1× Voltz 5300mAh NiMh Stick Pack - 7.2v - Tamiya Connector
1× eTronix Power Pal Peak Detect NiMh Fast Charger - Mains/12v Input
1× Savox SW0231MG+ Waterproof Metal Gear Digital Servo - 15kg - 0.17s
Frequently Bought With
Other items customers often buy with the Tamiya TT-02 Type-S Chassis Kit
Description
Step up to the Tamiya TT-02 Type-S Chassis Kit (HC-58600), a refined evolution of the proven TT-02 platform. This shaft-driven 4WD chassis introduces newly designed components and wide-ranging setup adjustability, making it a strong choice for club racing and track-day tuning. Turnbuckle upper arms and steering linkages allow quick camber and front toe adjustments, while optimised damper angles and rebound strokes deliver confident road holding.
The Type-S specification equips the TT-02 with reversible suspension arms and rigid metal suspension mounts, including 3° of rear toe-in for stability. Newly designed 3.0mm FRP front and rear damper stays work with CVA oil shocks for consistent, predictable handling. Power loss is minimised via full ball bearings and durable metal cup joints, drive shafts and wheel axles, with die-cast metal hex hubs adding strength where it counts.
Key Features
- Reversible suspension arms
- CVA oil shocks
- Newly designed 3.0mm FRP front & rear damper stays
- Metal suspension mounts with 3° rear toe-in
- Metal wheel axles, gearbox joints & drive shafts
- Full ball bearings
- Turnbuckle upper arms & steering linkage
- Die-cast metal hex wheel hubs
Specifications
- Length: 385mm; Width: 187mm; Wheelbase: 257mm
- Tyre width/diameter: 24/64mm (front & rear)
- Bathtub-type frame
- Shaft-driven 4WD
- Front/rear 4-bevel resin differentials
- 3-piece steering tie-rod
- 4-wheel double wishbone suspension
- CVA oil shocks
- Gear ratio: 8.27:1 (10 further ratios from 11.38:1 to 7.28:1 possible with separately sold pinions)
- Torque-Tuned Motor
- Full ball bearings
- Electronic Speed Controller (ESC) sold separately
Required to Complete
- 2-channel R/C unit with ESC
- Battery pack & charger
- R6/AA/UM3 batteries for transmitter
- Body
Secured by Stripe
Tamiya TT-02 Type-S Chassis Kit Manuals & Guides
Manuals & Guides
How-To Guides & Articles
Specifications
Step Up with this Sporty Evolution of the TT-02!

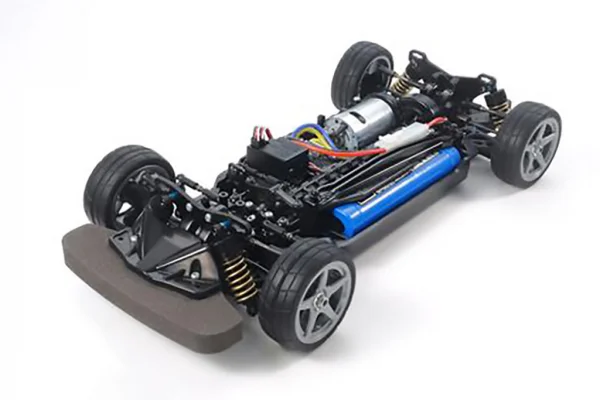

This sporty evolution of the TT-02 chassis sees the efficient shaft-driven 4WD unit given newly-designed parts and gives users the ability to make setup adjustments across the board, making it great for racing! It is equipped with long reversible suspension arms, and rigid metal suspension mounts. The rear is set up with 3°of toe-in. CVA oil dampers are attached to specially-designed 3.0mm thick FRP damper stays, with optimum damper angle and rebound stroke providing excellent road holding. Turnbuckle upper arms and steering linkage allow fuss-free adjustment of camber and front toe. Power loss is minimized by the use of full ball bearings and metal cup joints and drive shafts.
Featured Components
- Reversible Suspension Arms
- CVA Oil Shocks
- FRP Front & Rear Damper Stays (newly-designed)
- Metal Suspension Mounts (w/3°rear toe-in)
- Metal Wheel Axles, Gearbox Joints & Drive Shafts
- Full Ball Bearings
- Turnbuckle Upper Arms & Steering Linkage
- Die-Cast Metal Hex Wheel Hubs

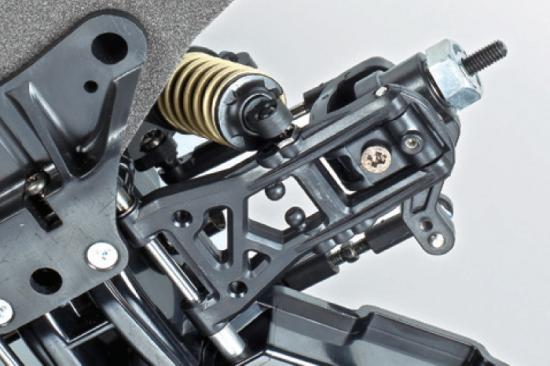

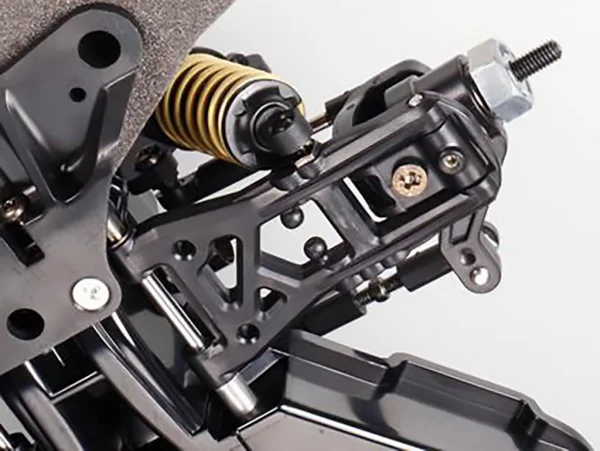

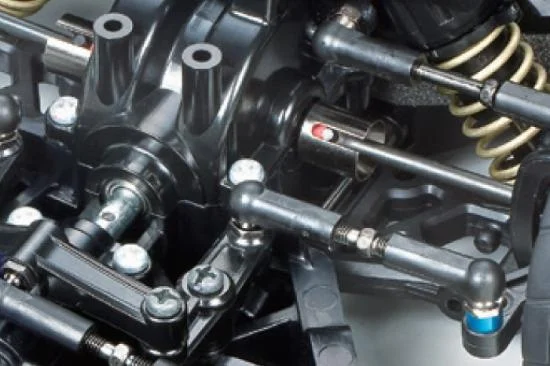

The chassis utilizes reversible suspension arms and newly-designed metal suspension mounts. Features turnbuckle upper arms.

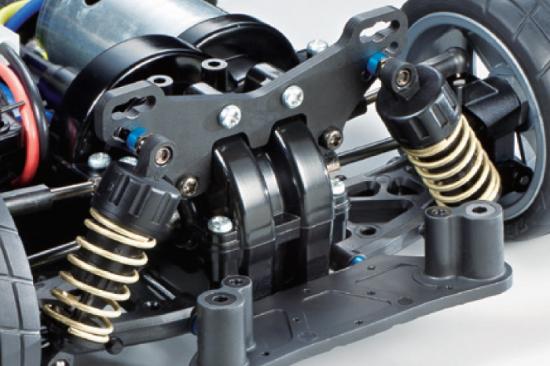

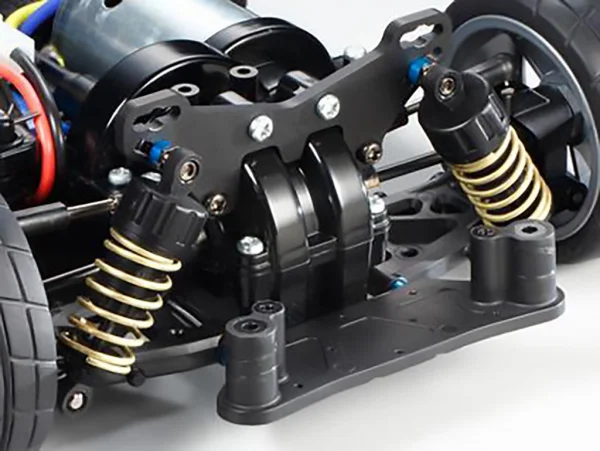

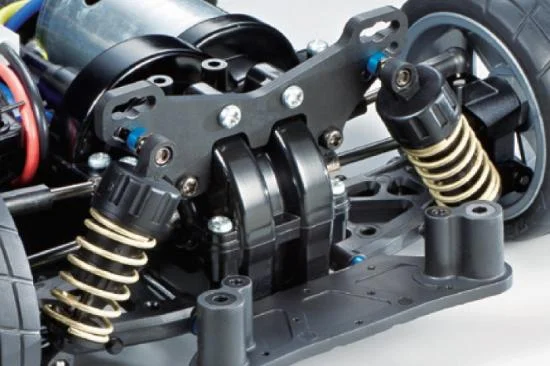

Newly-designed FRP front and rear damper stays combine with CVA oil shocks for superior road handling.

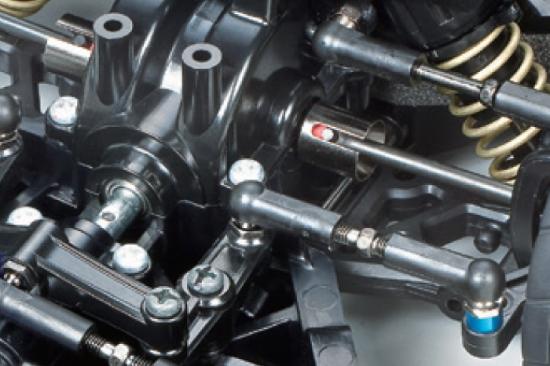

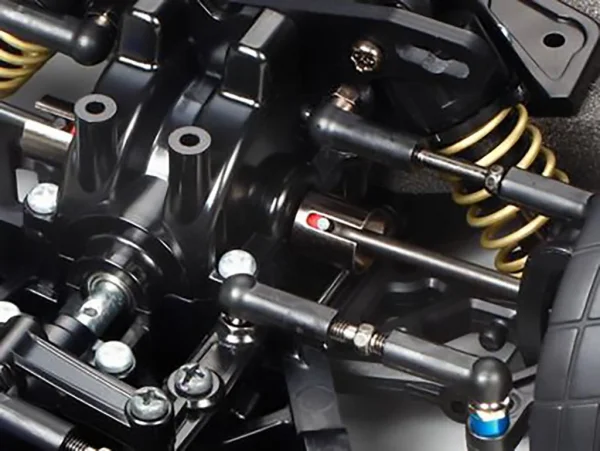

The chassis is equipped with durable metal drive shafts and gearbox joints.
Specifications
- Length: 385mm, Width: 187mm
- Wheelbase: 257mm
- Tire Width/Diameter: 24/64mm (Front & Rear)
- Bathtub-type Frame
- Shaft Driven 4WD
- Front/Rear 4-Bevel Resin Differentials
- 3-Piece Steering Tie-Rod
- 4-Wheel Double Wishbone Suspension
- CVA Oil Shocks
- Gear Ratio = 8.27:1 (10 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinion)
- Torque-Tuned Motor
- Full Ball Bearings
- Electronic Speed Controller (ESC) is sold separately.
Separately Required Items
- 2-Channel R/C Unit with ESC
- Battery Pack & Charger
- R6/AA/UM3 batteries for transmitter
- Body
Key Info:
- Brand: Tamiya
- Part No: HC-58600
- Barcode: 4950344586004
- Scale: 1:10
- Power Source: Electric - No Motor
- Surface Type: On Road
- Vehicle Type: Touring / Rally Car
- Build Level: Unassembled (Kit)
Delivery & Returns
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Customer Reviews
Really good kit.my first Tamiya one.
Comes with a lot of nice upgrades over the standard one. I'd recommend this over the standard kit even though they come with a body and esc.
Brought this as a combo package. Goes together nicely, some other parts such as bodies and oils will be required to assemble. A basic kit that is ok for a flat surface such as a car park but probably not the sort of thing to use if you wish to race 1/10th. Look at a more dedicated platform. A nice way to spend some evenings running it in any spare time you have.
Absolutely loads of upgrades available though.
Questions & Answers
For brushed motors you can use this one if you have a Tamiya connector: HW30120201
Or this one if you are using a deans: HW30120203
Yes this comes with full metal bearing set
Most 190mm , 195mm and 200mm touring car bodies will fit this chassis but please go off the dimensions.
Yes you can run brushless if you wish
