Tamiya Konghead 6X6 (G6-01)
Brand: Tamiya
Part No: HC-58646
In Stock: Usually ships same day
Add a motor and speed controller, radio system, steering servo, batteries and charger to your new model. Note, you may also wish to choose some bodyshell paint from our range.
HPI-101939
ET1060
SCH-EP3000S
HW30120201
SCH-CR710
HD-1812MG
ORI30198DNS
Saves £51.46 over RRP
Add a motor and speed controller, radio system, steering servo, high capacity batteries and fast charger to your new model. Note, you may also wish to choose some bodyshell paint from our range.
HPI-101939
ET1060
VZ0025
ET0208
SAV-SW0231MG+
HW30120201
SCH-CR710
Saves £50.17 over RRP
The Tamiya Konghead 6x6 (G6-01), part number HC-58646, is a distinctive 6-wheel-drive R/C kit built for fun and off-road capability. Its polycarbonate body evokes U.S.-style trailer heads, complemented by metal-plated air cleaner and muffler parts, plus included marking stickers for a detailed finish. The G6-01 chassis is a newly designed gear-driven 6WD platform capable of tackling slopes of up to 40 degrees.
Key Features
- Gear-driven 6WD with the motor mounted behind the front wheels, driving front, centre and rear axles via internal gears.
- Sealed, integrated gearbox with front, centre and rear differential gears for smooth cornering and protection from dust and debris.
- 6-wheel independent double wishbone suspension with friction dampers for capable off-road performance.
- 2-piece steering tie-rod with a left-mounted steering servo for responsive handling.
- Option to enable rear steering with a separately sold transmitter featuring 4WS and reassembly of the suspension.
- Chrome-plated deep rim wheels paired with 113mm diameter tyres.
- Polycarbonate sleeper-cab body with flat nose and radiator grille; metal-plated detail parts and marking stickers included.
- Robust slimline monocoque frame designed for durability.
Specifications
- Length: 453mm, Width: 270mm, Height: 234mm
- Wheelbase: 173mm + 126mm
- Tread: 200mm (Front, Centre and Rear)
- Tyre Width/Diameter: 68mm/113mm
- Monocoque frame; gear-driven 6WD
- 3-bevel differential gears (front, centre, rear)
- 2-piece steering tie-rod
- 6-wheel independent double wishbone suspension
- Gear ratio: 18.03:1
- Type 540 motor included
- Requires an electronic speed controller (sold separately)
Required To Complete
- 2-channel R/C unit with ESC
- Battery pack and charger
- R6/AA/UM3 batteries for the transmitter
Secured by Stripe
Dominate the Dirt

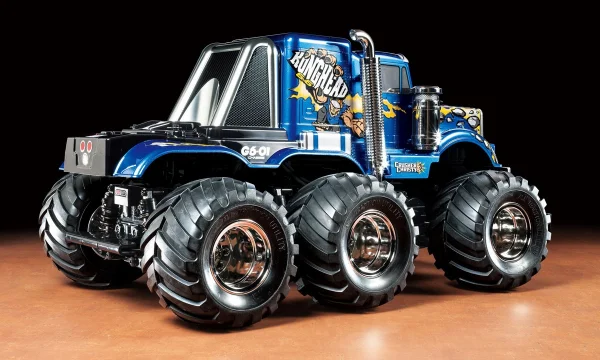

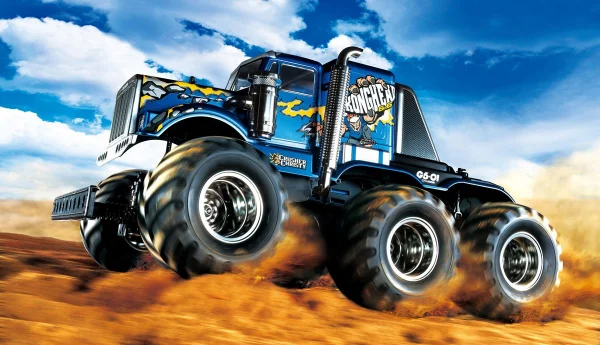

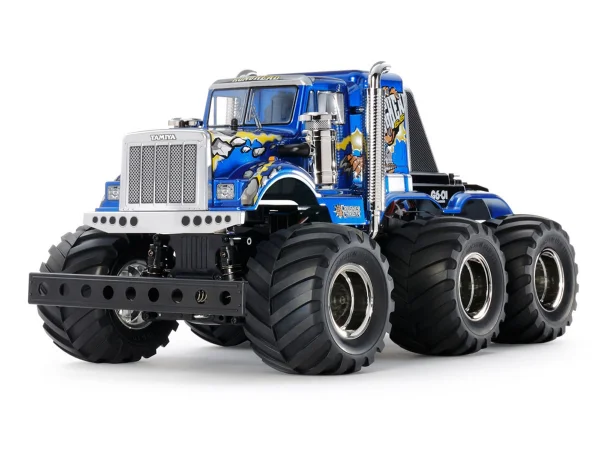

This R/C model assembly kit creates the Konghead 6x6. With its big sleeper cab, flat nose and radiator grille, its polycarbonate body takes inspiration from U.S. trailer heads. Metal-plated air cleaner and muffler parts give an authentic finish. Marking stickers are included to decorate the body with style. The new G6-01 chassis is a newly-designed 6WD unit that can take on slopes of up to 40 degrees. See below for much more information!
Fun, Innovative & Great Performance!

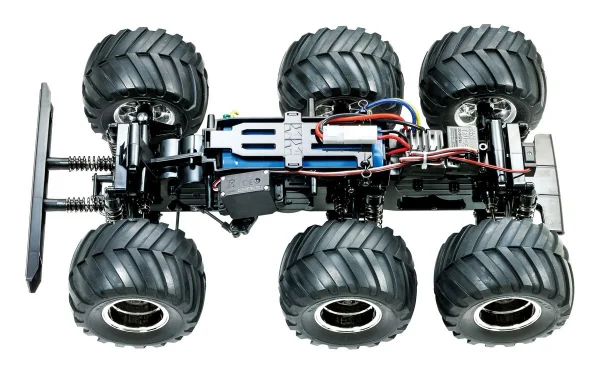

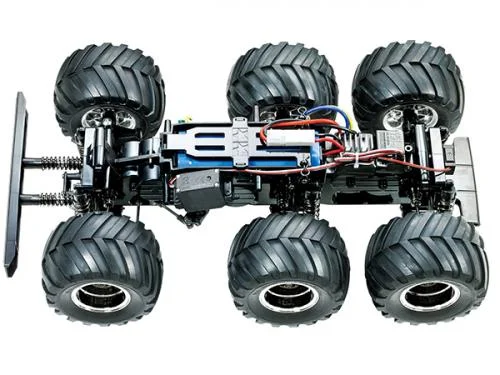

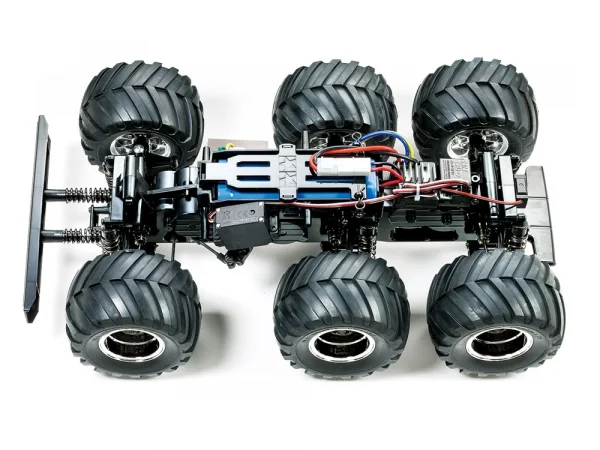

The fun G6-01 chassis is based around a tough, slimline monocoque frame and offers excellent off-road performance thanks to a 6-wheel drive system. Power is provided by a motor behind the front wheels, and transmitted to front, center and rear wheels via gears. The gearbox is sealed to protect from dust and debris, and integrated into the frame; it has built-in front, center and rear differential gears to provide smooth cornering. 6-wheel double wishbone suspension is fitted with friction dampers, while chrome-plated deep rim wheels are paired with 113mm diameter tires. A 2-piece steering tie-rod setup utilizes the servo on the left for excellent response. With suspension reassembly and a separately-sold transmitter with 4WS function and R/C equipment, the rear wheels can be made steerable.

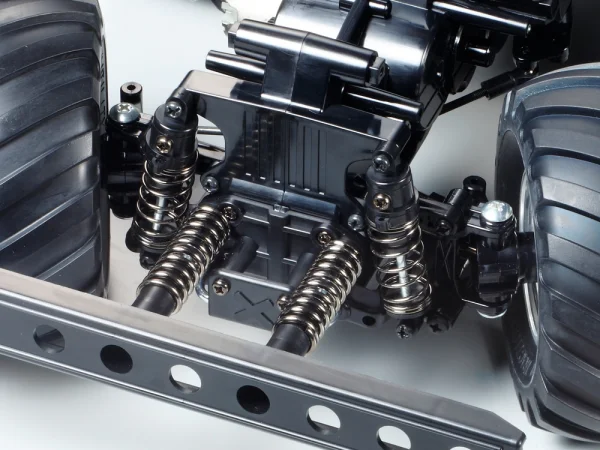

- Double wishbone suspension is paired with friction dampers for excellent off-road performance.
- Smooth handling thanks to the 2-piece steering tie-rod and steering servo positioned on the left.

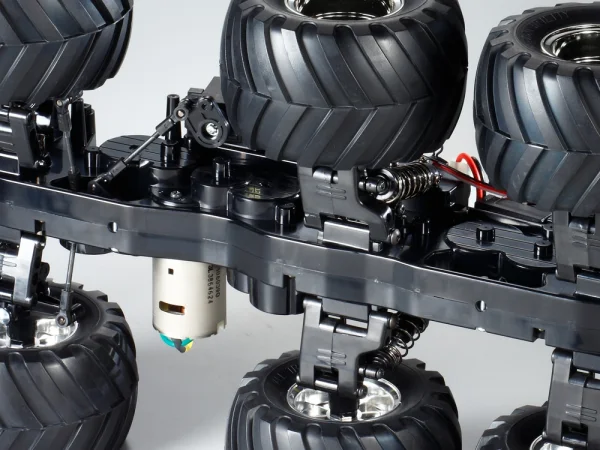

- The motor powers three differential gears inside the monocoque, in a gear-driven 6WD setup.
Specifications
- Length: 453mm, Width: 270mm, Height: 234mm
- Wheelbase: 173mm + 126mm
- Tread: 200mm (Front, Center and Rear)
- Tire Width/Diameter: 68mm/113mm
- Monocoque Frame
- Gear-Driven 6WD
- 3-Bevel Differential Gears
- 2-Piece Steering Tie-Rod
- 6-Wheel Independent Double Wishbone Suspension
- Gear Ratio = 18.03:1
- Type 540 Motor
- Requires an Electronic Speed Controller (sold separately)
Separately Required Items
- 2-Channel R/C Unit with ESC
- Battery Pack & Charger
- R6/AA/UM3 batteries for transmitter
Key Info:
- Brand: Tamiya
- Part No: HC-58646
- Barcode: 4950344586462
- Scale: 1:10
- Power Source: Electric - Brushed
- Vehicle Type:
• Lorries / Trucks
• Monster Truck - Surface Type: Off Road
- Build Level: Unassembled (Kit)
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
We do but not as a kit
You would need (4) 5x8x2.5 (36) 5x11x4 bearings.
We do but not as a kit You would need (4) 5x8x2.5 (36) 5x11x4 bearings.
Speed isn't quoted but I'd estimate maybe around 25mph
Any standard ESC will work fine... if you are running brushed motors something like say ET0103 or HW30120201 would work well
Something like ET0103 would be ideal.
