Tamiya XM-01 PRO M-Chassis 4WD Chassis Kit – HC-58738
Brand: Tamiya
Part No: HC-58738
£280.34
RRP £314.99
Expected Tue 24 Nov
Request Stock NotificationUK Delivery
Get it by Wednesday 25th Nov
Store Collection (Cannock)
Tuesday 24th Nov, once stock arrives
Dates are supplied by the manufacturer. They are usually accurate, but they can move and are not guaranteed.
Finance options available at checkout.
You May Also Need
Add-ons and accessories that go with the Tamiya XM-01 PRO Chassis
Description

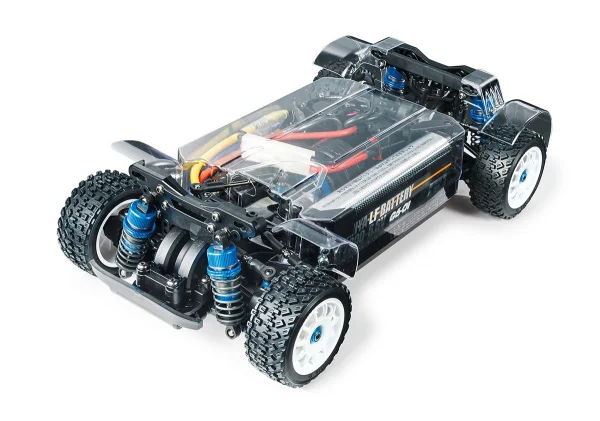

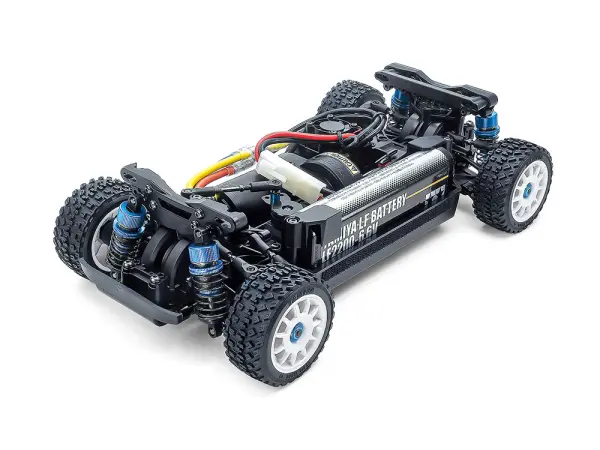

The Tamiya XM-01 PRO Chassis (HC-58738) is a 1/10 shaft-driven 4WD M-chassis platform designed for modern rally builds. Launched in May 2024, it combines robust dirt protection with broad tuning potential, plus new suspension components and flexible wheelbase options for a precise, planted feel on loose surfaces.

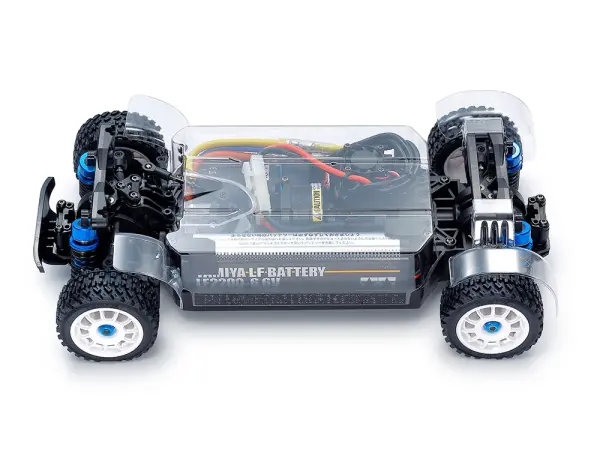

Engineered with a front mid-ship, longitudinal motor layout and a longitudinal upright battery position (centre-left), the XM-01 PRO delivers balanced handling. A bathtub frame teams with a polycarbonate chassis cover, inner front cover and mud guards to help keep debris out, while a skid-angle front bumper reduces surface contact over rough terrain.
Key Features
- 1/10 R/C chassis assembly kit with shaft-driven 4WD
- Front mid-ship longitudinal motor position
- Adjustable wheelbase: short 210mm, middle 225mm, long 239mm
- Bathtub frame with polycarbonate chassis cover and inner front cover; mud guards for dirt protection

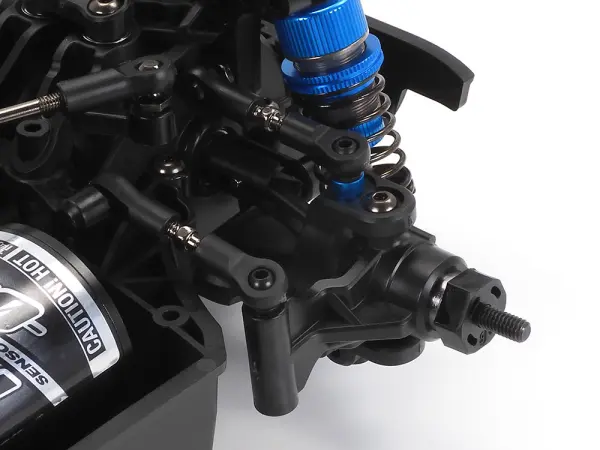

- New front C-hubs, rear uprights and lower arms with two ride-height options (about 8mm or 13mm)
- 5-degree caster angle via suspension mounts
- Oil-filled gear differentials front and rear

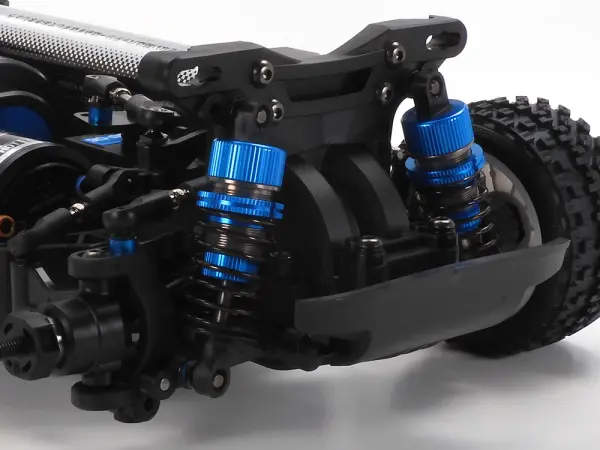

- Aluminium dampers front and rear
- M-Chassis 11-spoke racing wheels paired with 60D rally block tyres
- Front and rear universal drive shafts included as standard
- Low-profile servo recommended; a standard servo may contact the front inside polycarbonate cover
Tuning & Setup Options
- Includes two 39T differential gears and one 40T differential gear to fine-tune drive balance
- Use 39T (with 15T) front and 40T (with 15T) rear for a front-biased drive feel; reverse for rear bias
- Suggested compatibility includes centre differential setups and an optional slipper clutch (sold separately)
Required To Complete
- Body (sold separately)
- Battery pack (sold separately)
- Motor (sold separately)
- ESC (sold separately)
- R/C equipment (sold separately)
Secure Payments
Secured by Stripe
Tamiya XM-01 PRO Chassis Manuals & Guides
Manuals & Guides
Specifications
Tamiya Release Date: 31/05/2024
This shaft-driven 4WD chassis kit (M-chassis size) is another addition to the R/C rally line-up, and has features such as three types of wheelbase, new suspension components and a polycarbonate chassis cover. Add this chassis kit to your M-rally collection!
Key Info:
This shaft-driven 4WD chassis kit (M-chassis size) is another addition to the R/C rally line-up, and has features such as three types of wheelbase, new suspension components and a polycarbonate chassis cover. Add this chassis kit to your M-rally collection!
- This is a 1/10 scale R/C chassis assembly kit.
- Equipped with front mid-ship, longitudinal motor position.

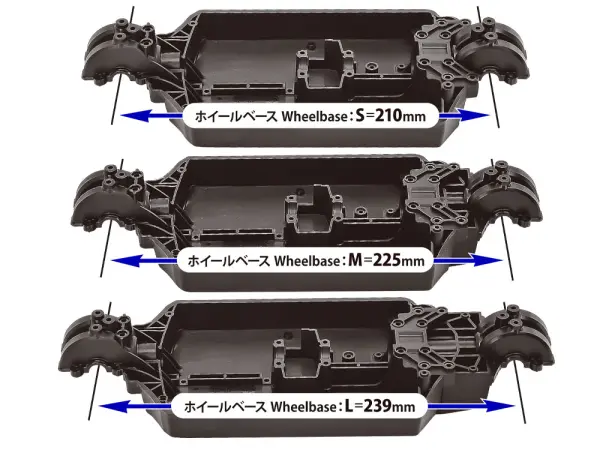

- Changing rear section allows a choice from three wheelbases (short: 210mm, middle:225mm, long: 239mm). (ref. Image 3)

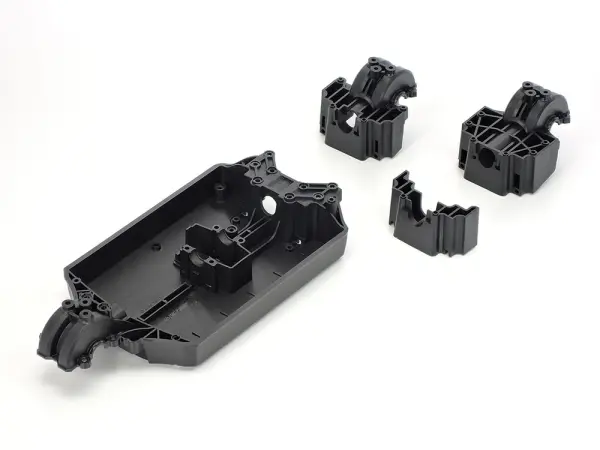

- Bathtub frame chassis and polycarbonate chassis cover plus front inside polycarbonate cover and rear section are newly-folded parts. Mud guards helps prevent dirt and dust from getting inside.

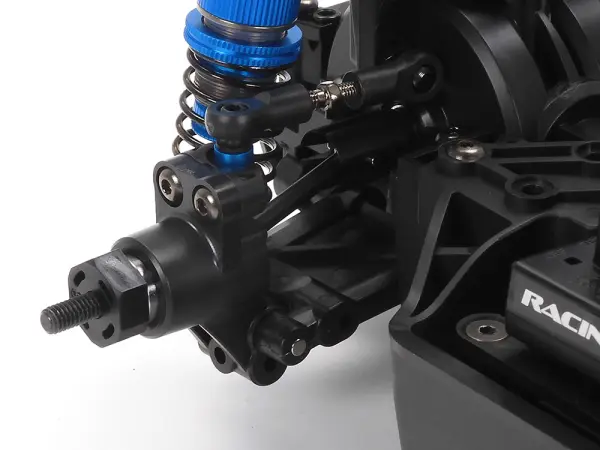

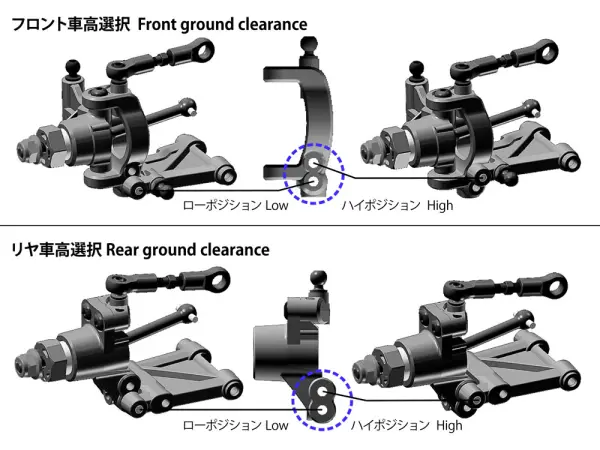

- New front C-hubs and rear uprights, plus lower suspension arms allow two types (about 8mm or 13mm) of ground clearances.
- Caster angle can be set at 5 degrees by suspension mounts. *For comparison, the XV-02 PRO chassis kit uses caster blocks which feature 6-degree caster angle. (XV-01 chassis: 10-degree caster angle)

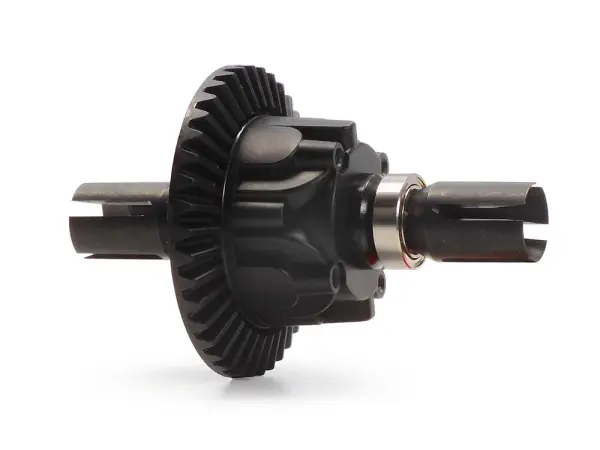

- The drivetrain employs oil-filled gear differential for front and rear
- Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
- Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice versa for drive balance bias to rear.

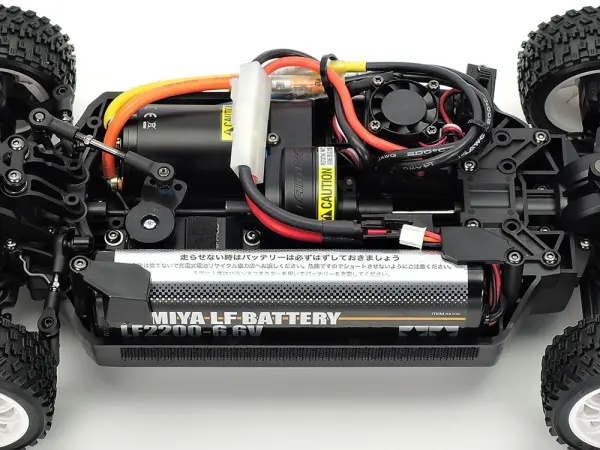

- It features a longitudinal upright battery pack position in the centre-left for optimum balance.

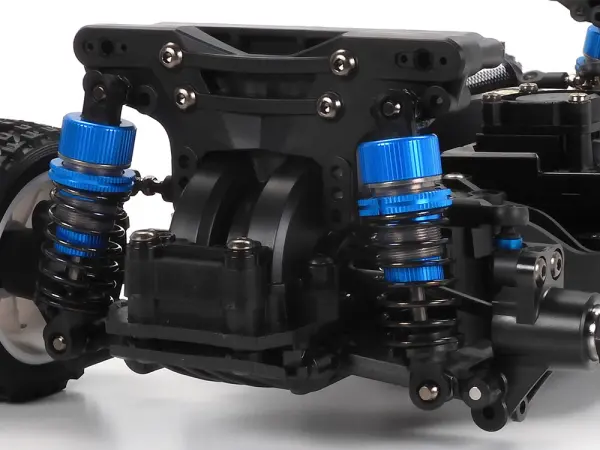

- Front bumper with skid angle contributes to reduce surface contact. • Aluminium dampers are employed at the front and rear.

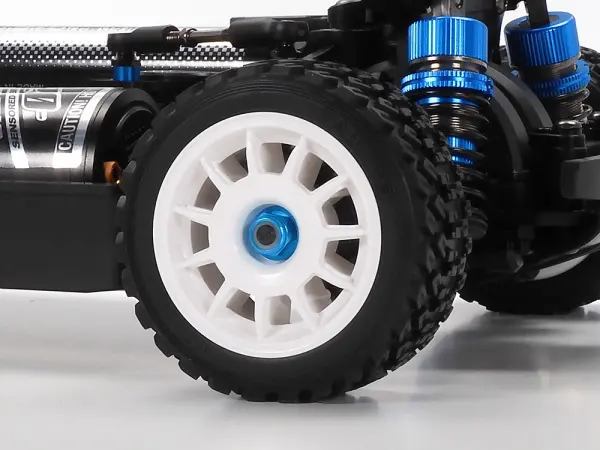

- M-Chassis 11-spoke racing wheels (Item 51394) are paired with 60D rally block tires (Item 51427).

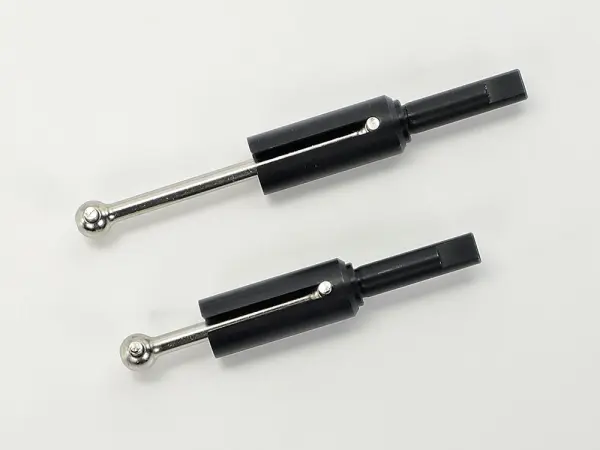

- Front and rear universal drive shafts come as standard.
- Compatible with centre diff setup and separately sold slipper clutch.
- Low-profile servo is recommended. (Standard servo can be used, but it comes into contact with the front inside polycarbonate cover
- Please note that this chassis requires separately sold body, battery pack, motor, ESC and R/C equipment
Key Info:
- Brand: Tamiya
- Part No: HC-58738
- Barcode: 4950344587384
- Build Level: Unassembled (Kit)
